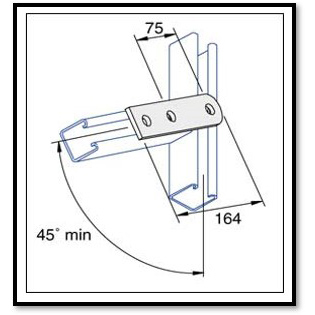

Unistrut 3-Hole Adjustable Angle Flat Plate Fittings

3-Hole Adjustable Angle Flat Plate Fittings, are designed for bringing flexibility and adaptability to your cable support systems. These adjustable plate fittings allow for easy angle adjustments, enabling you to create custom configurations tailored to your specific installation requirements.

The following are standard dimensions unless otherwise stated.

  • Hole Size: 14mm diameter
  • Hole Spacing (From End): 20mm from the end of the fitting
  • Fitting Width: 41mm

Dimensions shown are for mild steel components only. Dimensions for stainless steel components may vary.

Category:

Description

Unistrut fittings, connectors, and adjustable plate fittings are essential components for building sturdy and versatile cable management systems. With their multi-hole design, these angle plates offer a secure and robust connection point for attaching Unistrut channels, cables, or other components. Constructed from durable materials, they ensure long-lasting performance and resistance against corrosion and environmental factors.

Unistrut Connectors: Versatile Joining Solutions

In addition to our adjustable plate fittings, we offer a wide range of Unistrut connectors to accommodate various installation scenarios.

Our selection includes:

  • Flat Plate Connectors: Designed for joining Unistrut channels at flat angles, these connectors provide a secure and stable connection.
  • Angle Connectors: Ideal for creating angled connections between Unistrut channels, these connectors offer flexibility and precision.
  • Splice Connectors: Used to join two Unistrut channels end-to-end, these connectors ensure a seamless transition and maintain structural integrity.

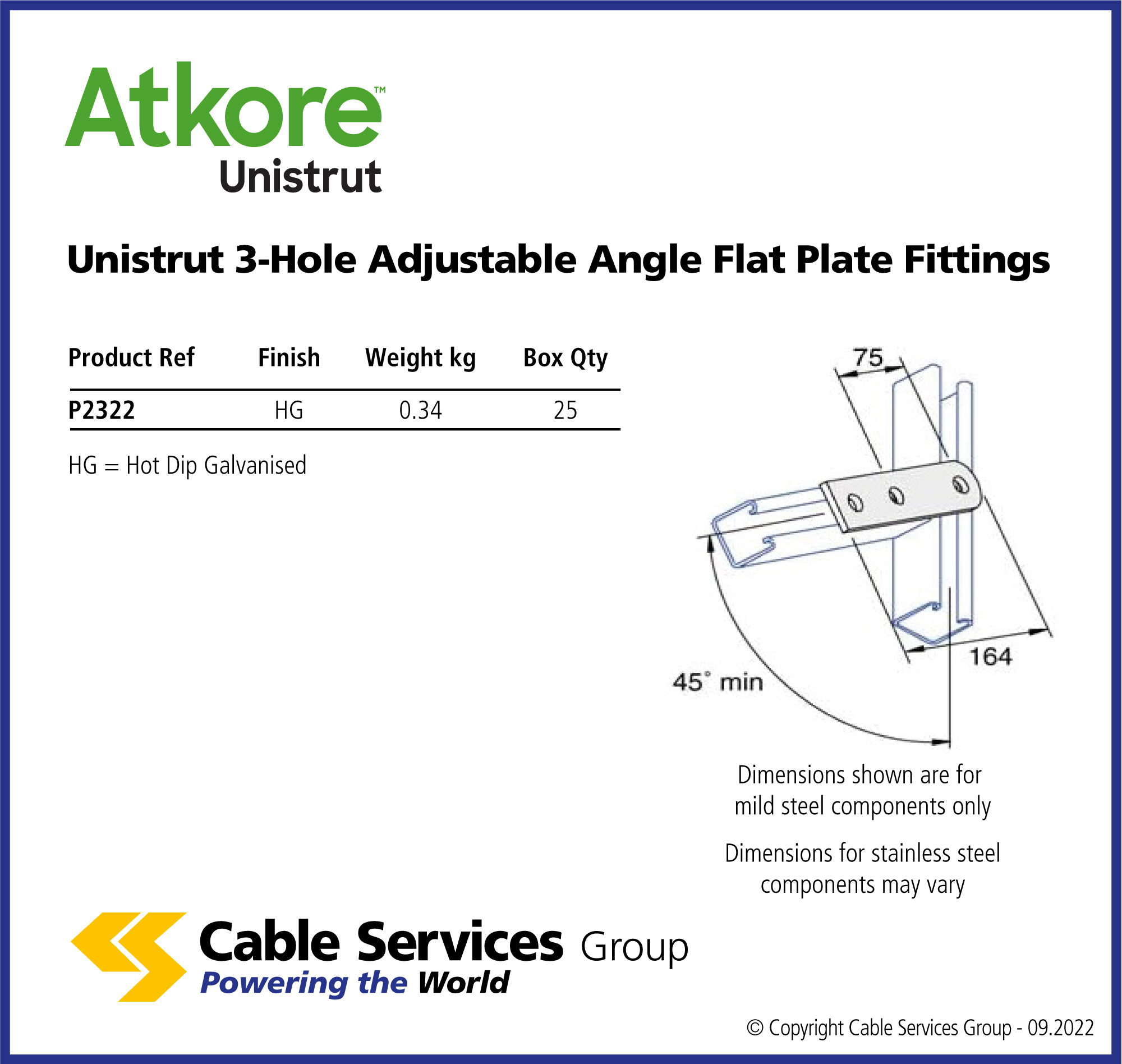

Selection Table

Data Sheets

View directly from manufacturer

Reference Name
P2322 Hot Dip Galvanised finish, 0.34kg weight
