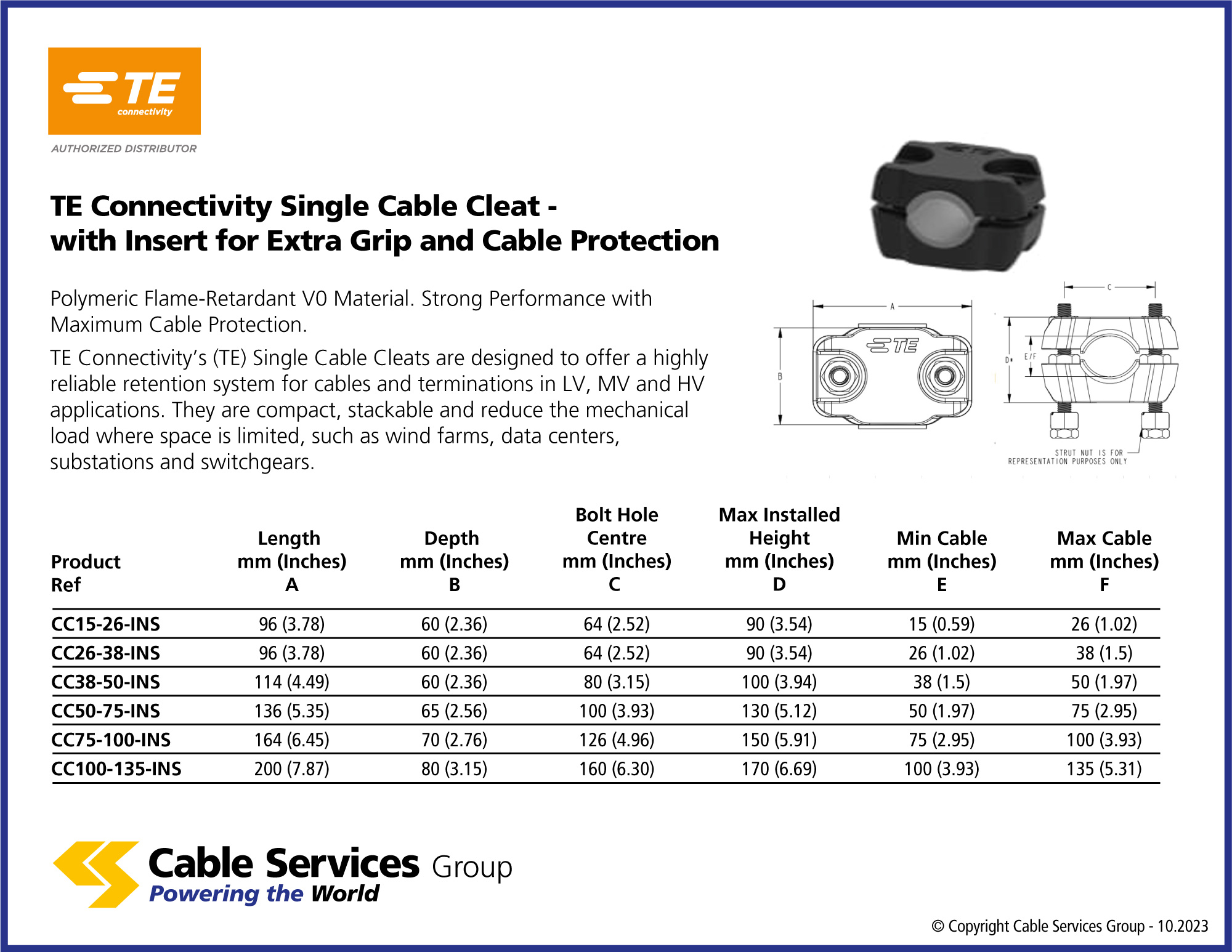

Selection Table

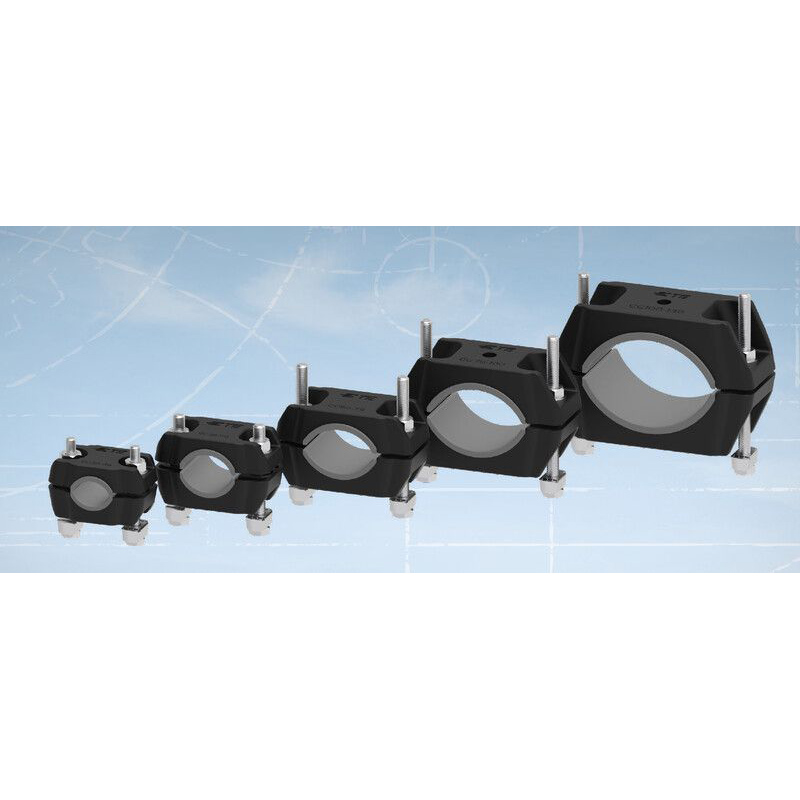

TE Connectivity (TE) Single Cable Cleat – with Insert for Extra Grip and Cable Protection
Polymeric Flame-Retardant V0 Material. Strong Performance with Maximum Cable Protection. TE Connectivity’s (TE) Single Cable Cleats are designed to offer a highly reliable retention system for cables and terminations in LV, MV and HV applications. They are compact, stackable and reduce the mechanical load where space is limited, such as wind farms, data centers, substations and switchgears
Data Sheets
| Reference | Name | |
|---|---|---|
| CC15-26-INS | 15 - 26mm diameter | |
| CC26-38-INS | 26 - 38mm diameter | |
| CC38-50-INS | 38 - 50mm diameter | |
| CC50-75-INS | 50 - 75mm diameter | |
| CC75-100-INS | 75 - 100mm diameter | |
| CC100-135-INS | 100 - 135mm diameter |
