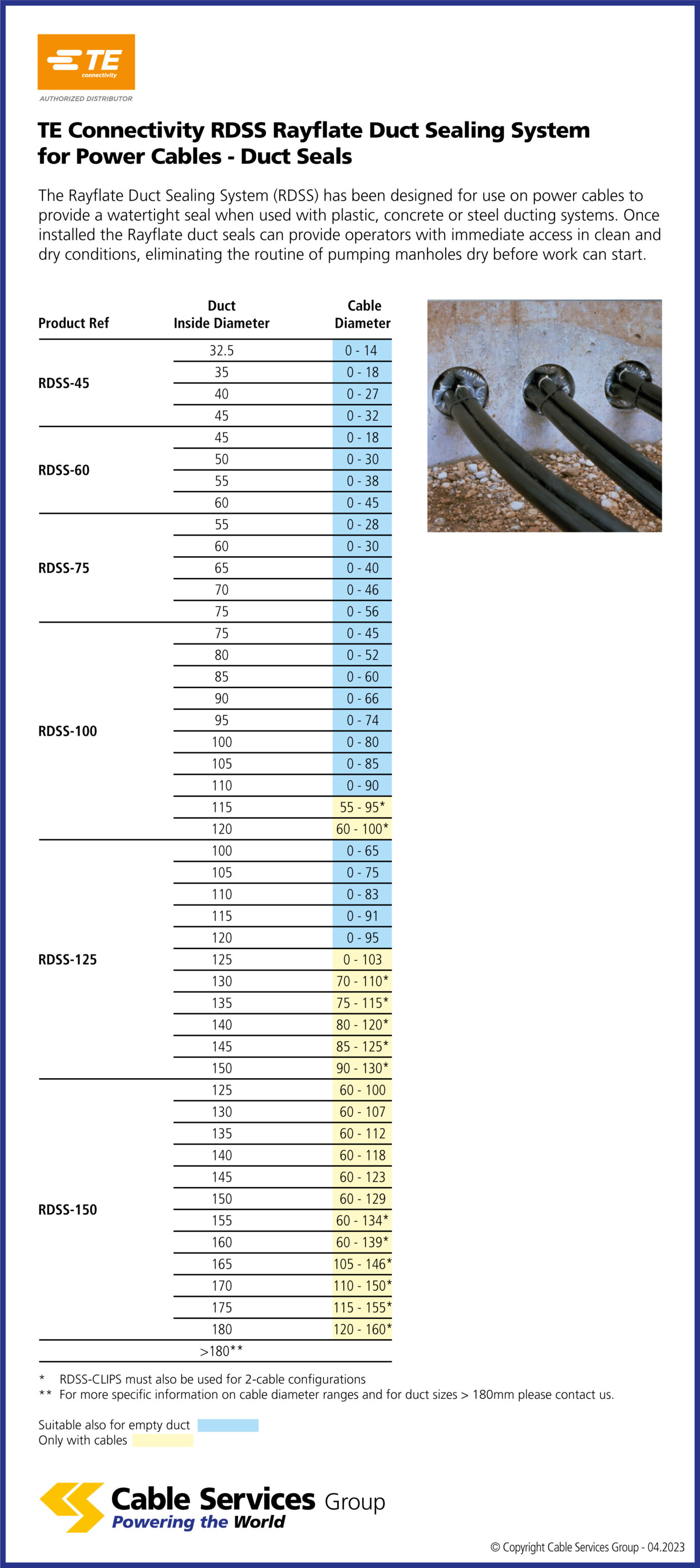

Selection Table
TE Connectivity RDSS Rayflate Duct Sealing System for power cables – Duct Seals

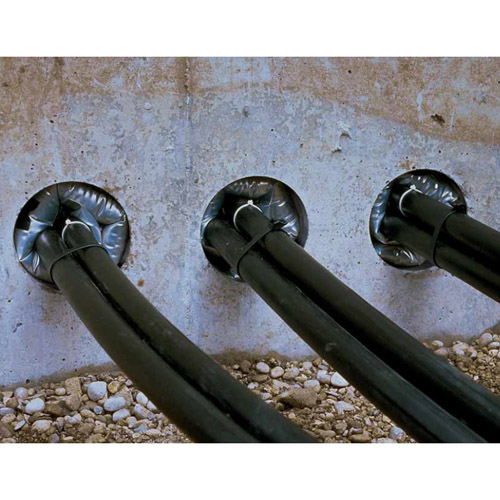

The Rayflate Duct Sealing System (RDSS) has been designed for use on power cables to provide a watertight seal when used with plastic, concrete or steel ducting systems. Once installed the Rayflate duct seals can provide operators with immediate access in clean and dry conditions, eliminating the routine of pumping manholes dry before work can
Data Sheets
| Reference | Name | |
|---|---|---|
| RDSS45 | 32.5 - 45mm inside diameter diameter size | |
| RDSS60 | 45 - 60mm inside diameter diameter size | |
| RDSS75 | 55 - 75mm inside diameter diameter size | |
| RDSS100 | 75-120mm inside diameter diameter size | |
| RDSS125 | 100 - 150mm inside diameter diameter size | |
| RDSS150 | 125 - 180mm inside diameter diameter size |
