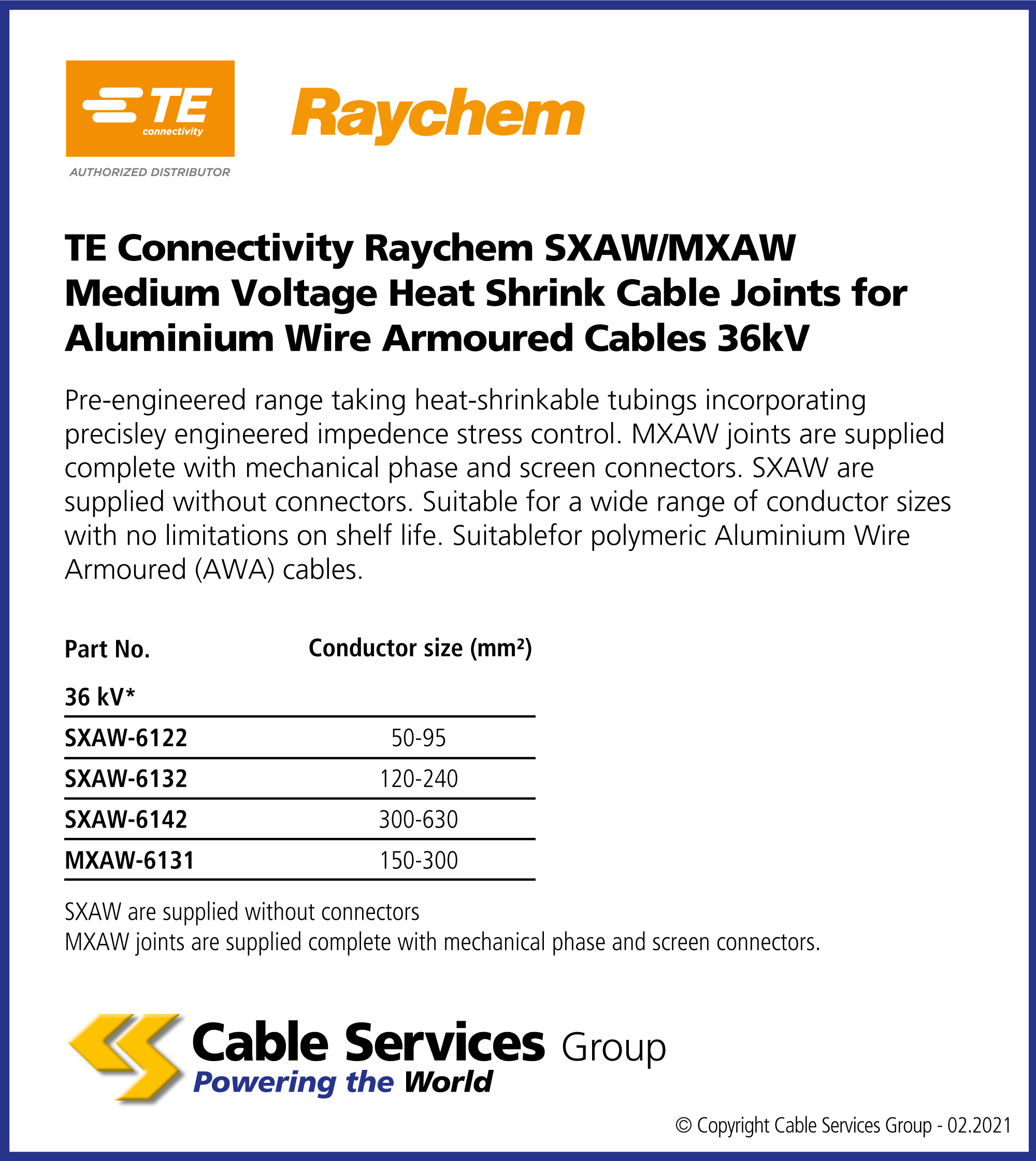

Selection Table

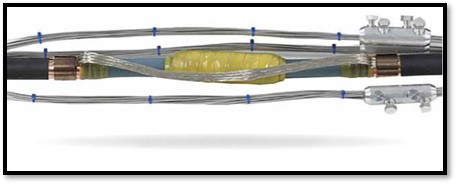

TE Connectivity Raychem SXAW/MXAW medium voltage heat shrink cable joints for aluminium wire armoured cables 36 kV
Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control. MXAW joints are supplied complete with mechanical phase and screen connectors. SXAW are supplied without connectors. Suitable for a wide range of conductor sizes with no limitations on shelf life. Suitablefor polymeric Aluminium Wire Armoured (AWA) cables .
Data Sheets
| Reference | Name | |
|---|---|---|
| SXAW6122 | 50-95mm2 cable connector size, No Connectors size type | |
| SXAW6132 | 120-240mm2 cable connector size, No Connectors size type | |
| SXAW6142 | 300-630mm2 cable connector size, No Connectors size type | |
| MXAW6131 | 150-300mm2 cable connector size, Connectors Included size type |
