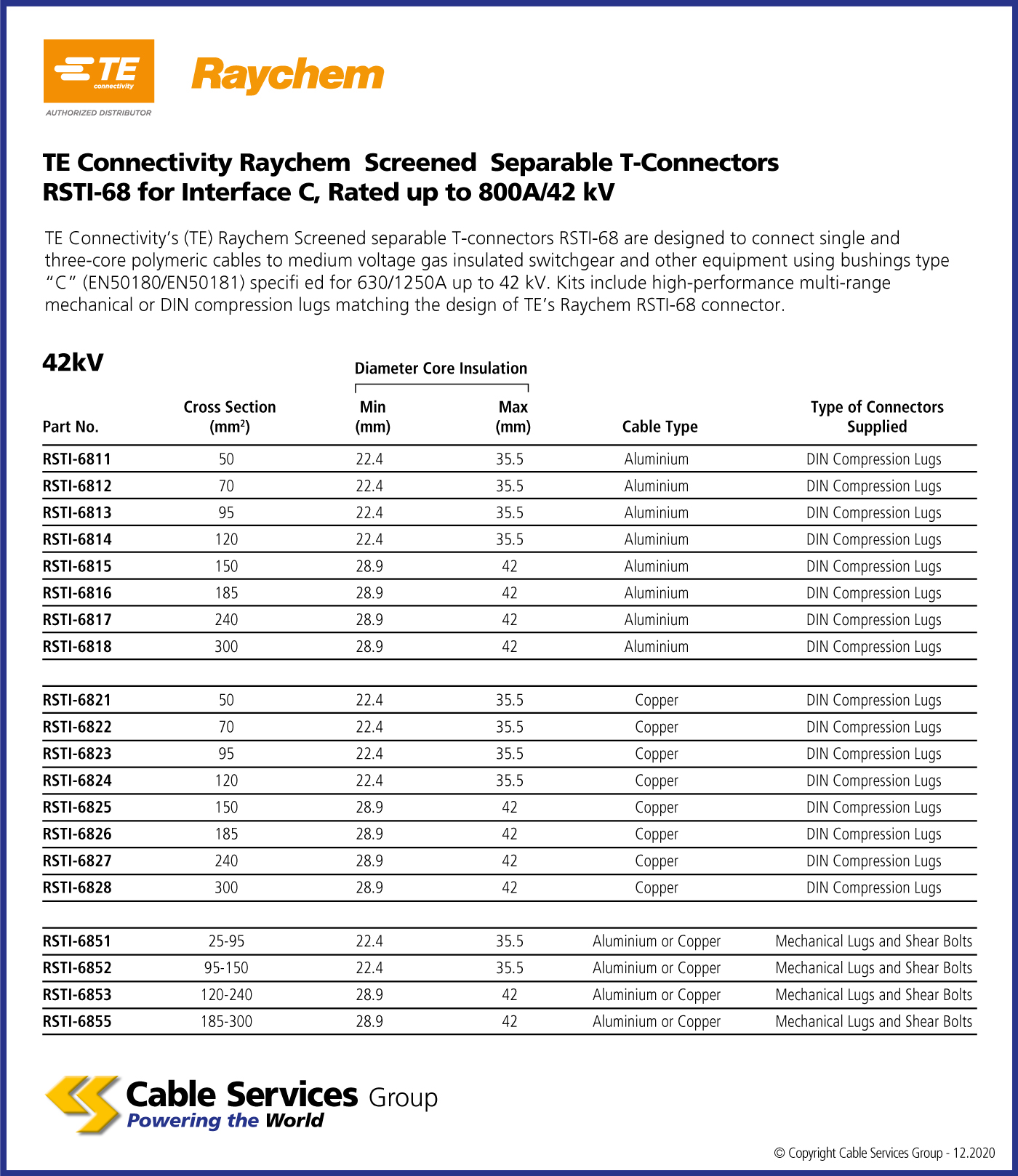

Selection Table

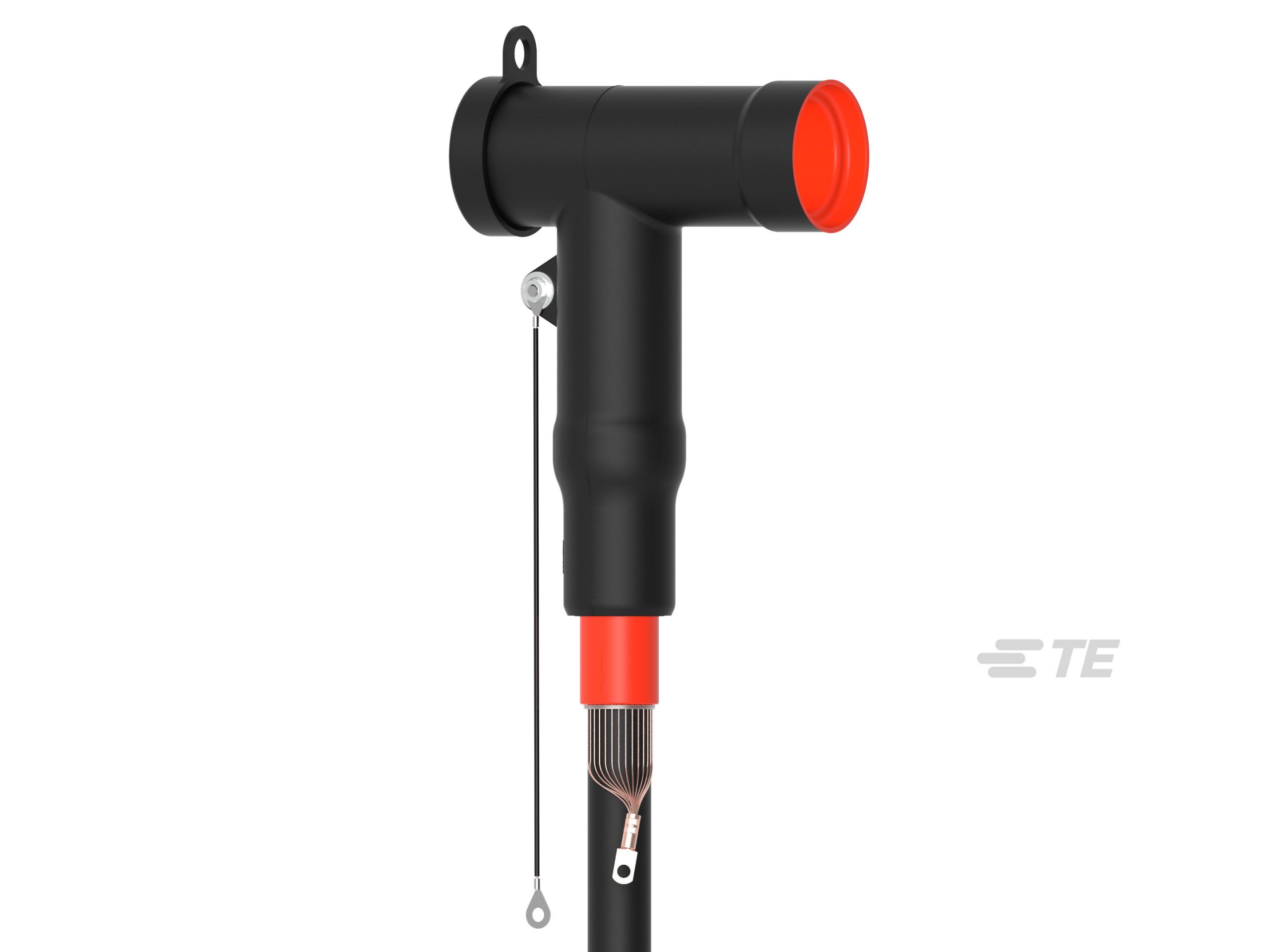

TE Connectivity Raychem Screened Separable T-Connectors RSTI-68 for Interface C, Rated up to 800A/42 kV
TE Connectivity’s (TE) Raychem Screened separable T-connectors RSTI-68 are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings type “C” (EN50180/EN50181) specifi ed for 630/1250A up to 42 kV. Kits include high-performance multi-range mechanical or DIN compression lugs matching the design of TE’s Raychem RSTI-68 connector
Data Sheets
| Reference | Name | |
|---|---|---|
| RSTI-6811 | 50mm2 cross section, Aluminium type | |
| RSTI-6812 | 70mm2 cross section, Aluminium type | |
| RSTI-6813 | 95mm2 cross section, Aluminium type | |
| RSTI-6814 | 120mm2 cross section, Aluminium type | |
| RSTI-6815 | 150mm2 cross section, Aluminium type | |
| RSTI-6816 | 185mm2 cross section, Aluminium type | |
| RSTI-6817 | 240mm2 cross section, Aluminium type | |
| RSTI-6818 | 300mm2 cross section, Aluminium type | |
| RSTI-6821 | 50mm2 cross section, Copper type | |
| RSTI-6822 | 70mm2 cross section, Copper type | |
| RSTI-6823 | 95mm2 cross section, Copper type | |
| RSTI-6824 | 120mm2 cross section, Copper type | |
| RSTI-6825 | 150mm2 cross section, Copper type | |
| RSTI-6826 | 185mm2 cross section, Copper type | |
| RSTI-6827 | 240mm2 cross section, Copper type | |
| RSTI-6828 | 300mm2 cross section, Copper type | |
| RSTI-6851 | 25-95mm2 cross section, Aluminium or Copper type | |
| RSTI-6852 | 95-150mm2 cross section, Aluminium or Copper type | |
| RSTI-6853 | 120-240mm2 cross section, Aluminium or Copper type | |
| RSTI-6855 | 185-300mm2 cross section, Aluminium or Copper type |
