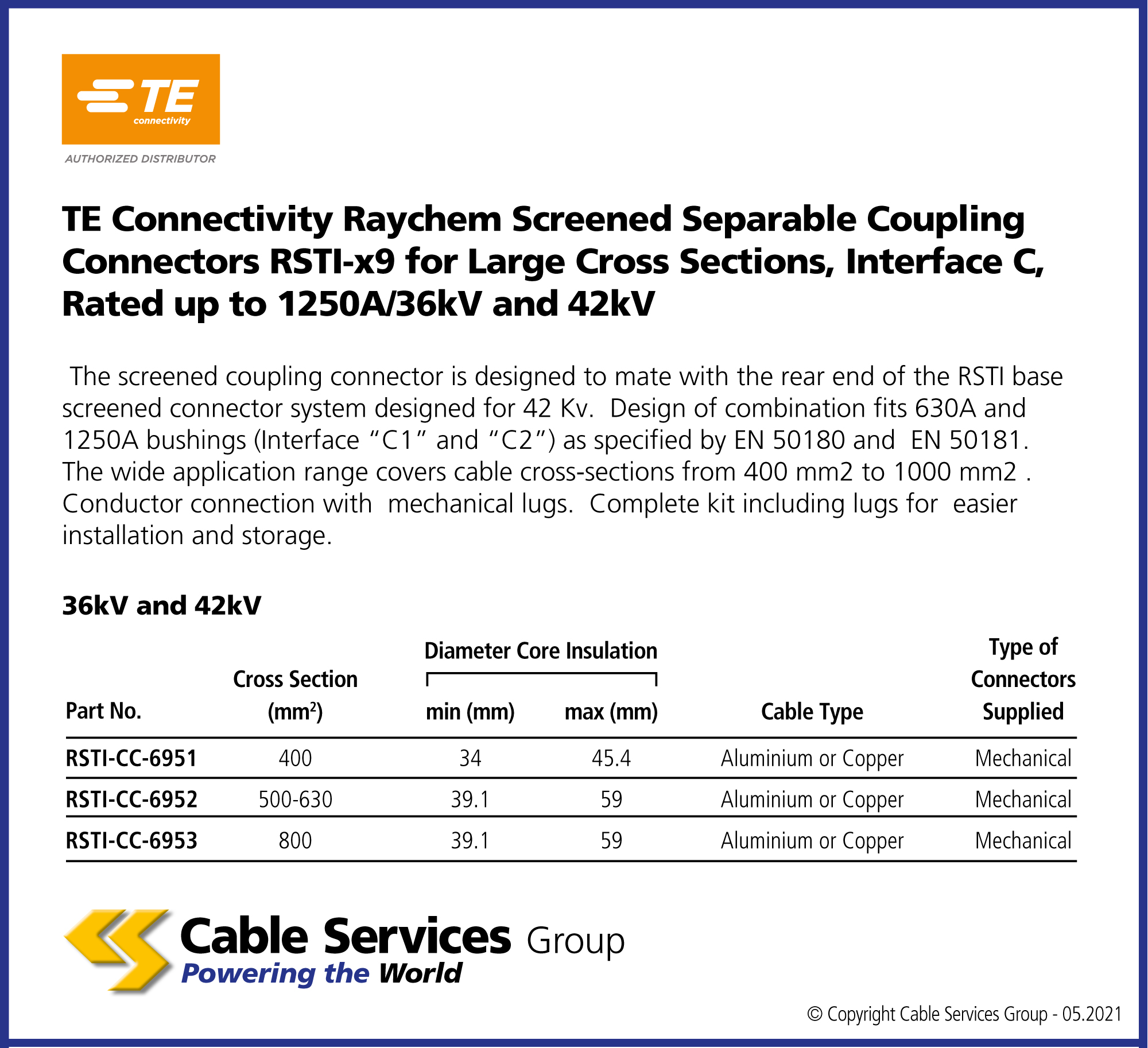

Selection Table
TE Connectivity Raychem Screened Separable Coupling Connectors RSTI-x9 for Large Cross Sections, Interface C, Rated up to 1250A/36kV and 42kV

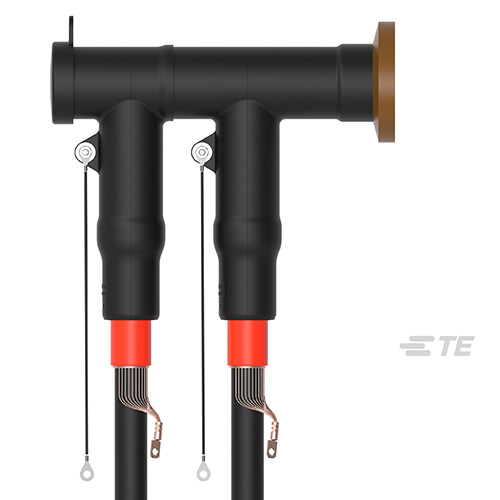

The screened coupling connector is designed to mate with the rear end of the RSTI base screened connector system designed for 42 Kv. Design of combination fits 630A and 1250A bushings (Interface “C1” and “C2”) as specified by EN 50180 and EN 50181. The wide application range covers cable cross-sections from 400 mm2 to 1000 mm2 . Conductor connection with mechanical lugs. Complete kit including lugs for easier installation and storage.
Data Sheets
| Reference | Name | |
|---|---|---|
| RSTI-CC-6951 | 400mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-6952 | 500-630mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-6953 | 800mm2 cross section, Aluminium or Copper type |
