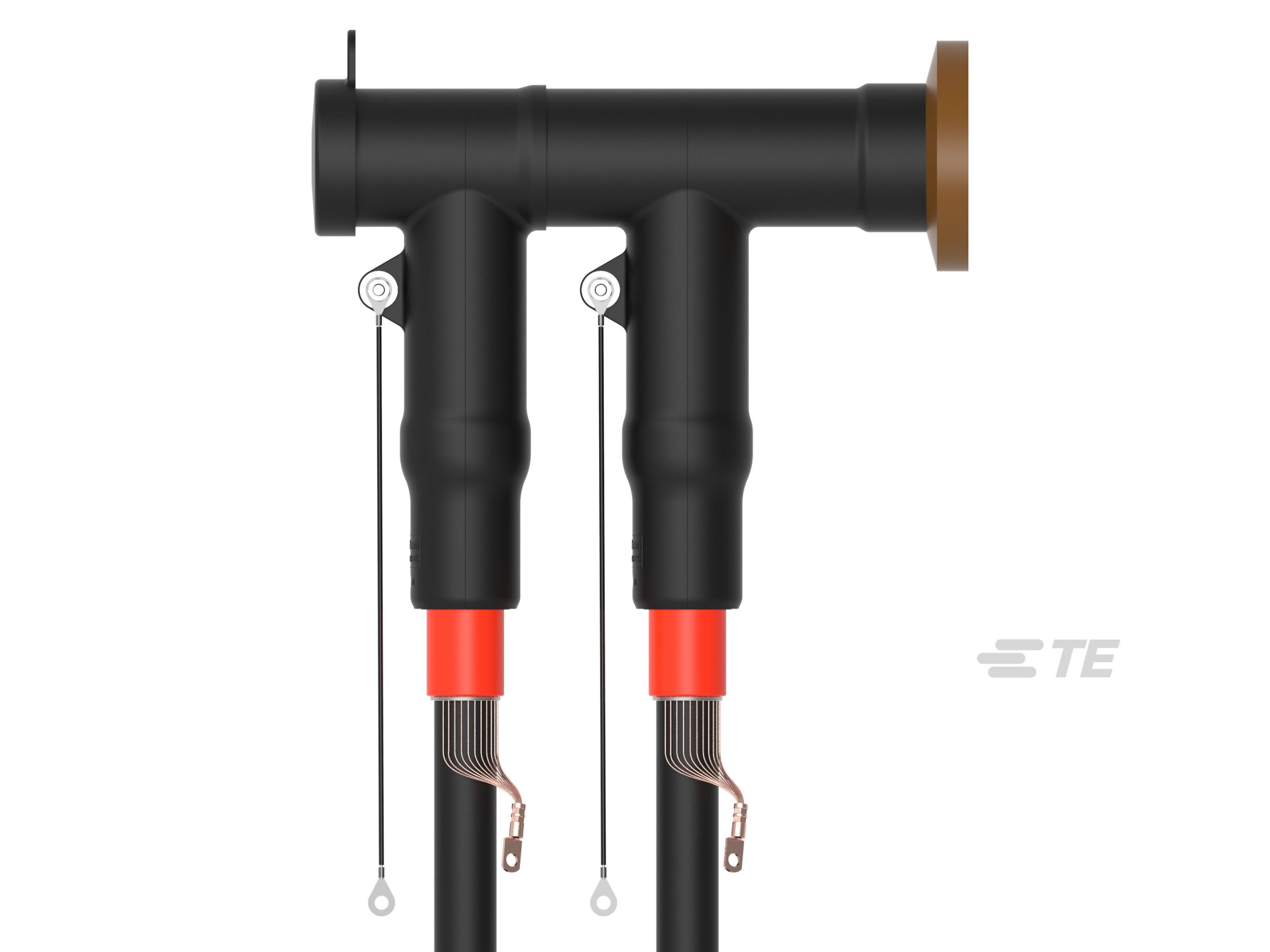

TE Connectivity Raychem Screened Separable Coupling Connectors RSTI-CC-58 for Interface C, Rated up to 800A/12 kV
The screened coupling connector is designed to mate with the rear end of the Raychem base screened connector system RSTI-58 designed for 24 kV. The combination of screened connector and coupling connector fits 630/1250 A bushings type “C” as specified by EN50180 and EN50181. •The compact design supports the use of double “T” connections inside standard terminal boxes. Conductor connection with mechanical or DIN lugs. Easily accessible rear plug with capacitive test point. Complete kit including lugs for easier installation and storage.
Data Sheets

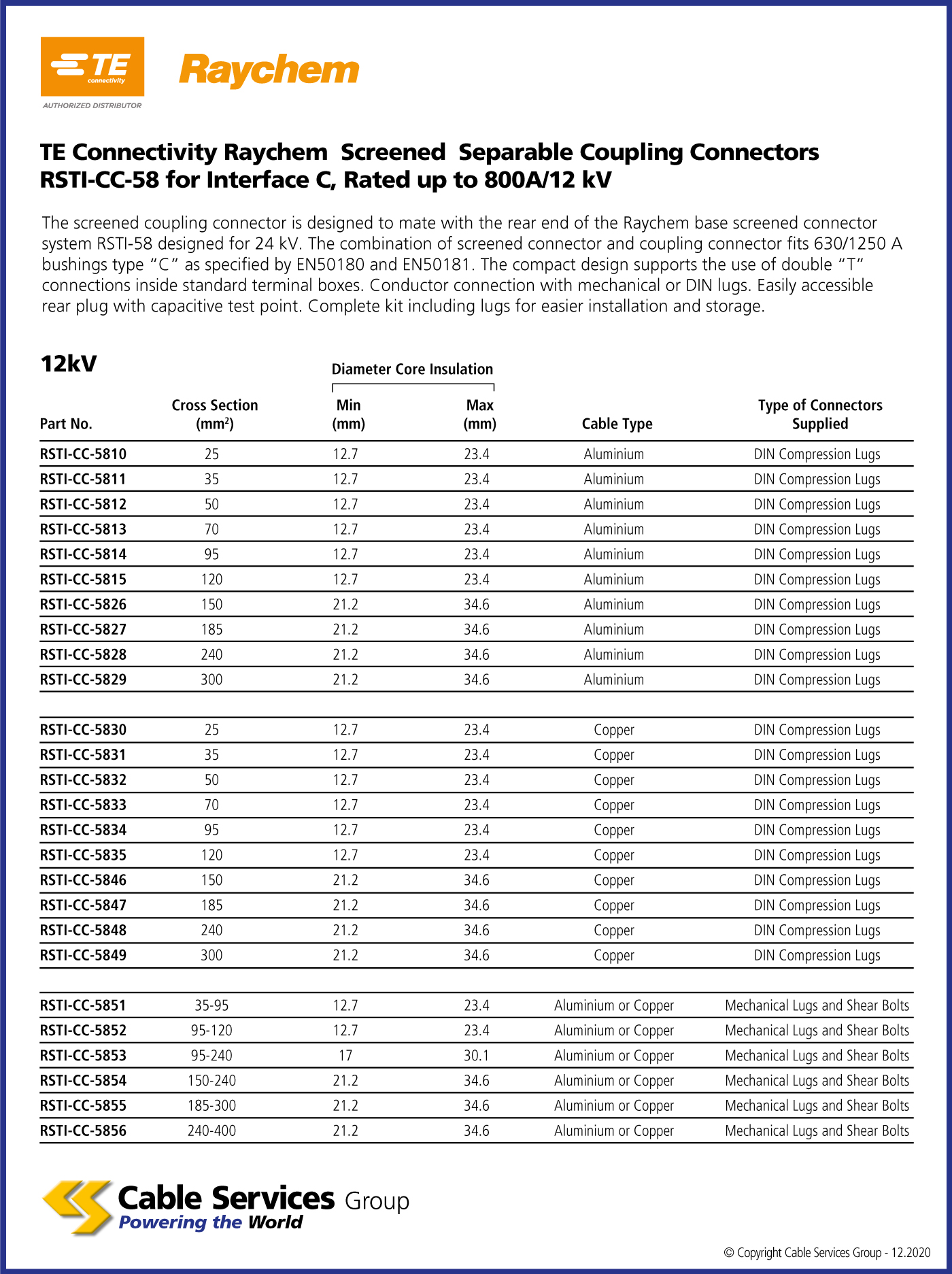

| Reference | Name | |
|---|---|---|
| RSTI-CC-5810 | 25mm2 cross section, Aluminium type | |
| RSTI-CC-5811 | 35mm2 cross section, Aluminium type | |
| RSTI-CC-5812 | 50mm2 cross section, Aluminium type | |
| RSTI-CC-5813 | 70mm2 cross section, Aluminium type | |
| RSTI-CC-5814 | 95mm2 cross section, Aluminium type | |
| RSTI-CC-5815 | 120mm2 cross section, Aluminium type | |
| RSTI-CC-5826 | 150mm2 cross section, Aluminium type | |
| RSTI-CC-5827 | 185mm2 cross section, Aluminium type | |
| RSTI-CC-5828 | 240mm2 cross section, Aluminium type | |
| RSTI-CC-5829 | 300mm2 cross section, Aluminium type | |
| RSTI-CC-5830 | 25mm2 cross section, Copper type | |
| RSTI-CC-5831 | 35mm2 cross section, Copper type | |
| RSTI-CC-5832 | 50mm2 cross section, Copper type | |
| RSTI-CC-5833 | 70mm2 cross section, Copper type | |
| RSTI-CC-5834 | 95mm2 cross section, Copper type | |
| RSTI-CC-5835 | 120mm2 cross section, Copper type | |
| RSTI-CC-5846 | 150mm2 cross section, Copper type | |
| RSTI-CC-5847 | 185mm2 cross section, Copper type | |
| RSTI-CC-5848 | 240mm2 cross section, Copper type | |
| RSTI-CC-5849 | 300mm2 cross section, Copper type | |
| RSTI-CC-5851 | 35-95mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-5852 | 95-120mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-5853 | 95-240mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-5854 | 150-240mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-5855 | 185-300mm2 cross section, Aluminium or Copper type | |
| RSTI-CC-5856 | 240-400mm2 cross section, Aluminium or Copper type |
