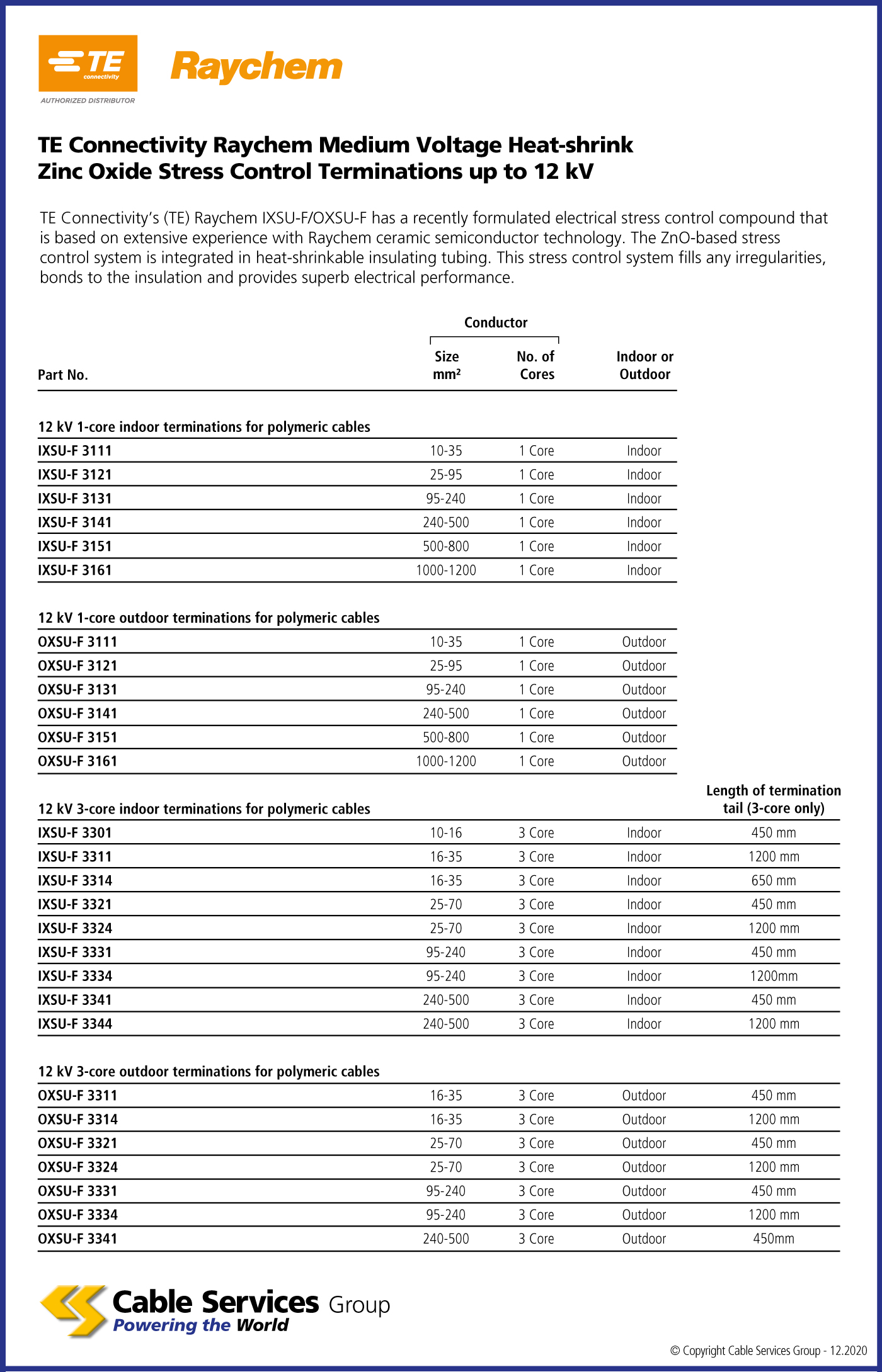

Selection Table

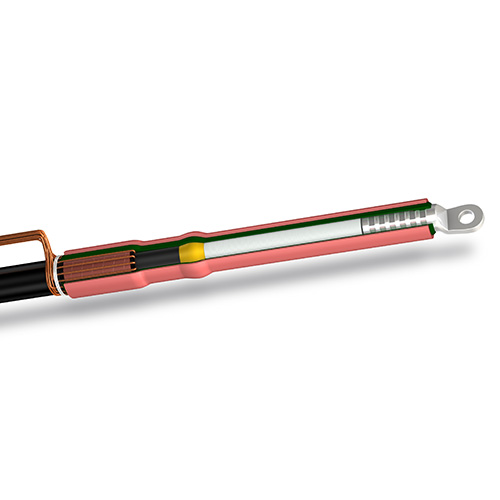

TE Connectivity Raychem Medium Voltage Heat-shrink Zinc Oxide Stress Control Terminations up to 12 kV
TE Connectivity’s (TE) Raychem IXSU-F/OXSU-F has a recently formulated electrical stress control compound that is based on extensive experience with Raychem ceramic semiconductor technology. The ZnO-based stress control system is integrated in heat-shrinkable insulating tubing. This stress control system fills any irregularities, bonds to the insulation and provides superb electrical performance.
Data Sheets
| Reference | Name | |
|---|---|---|
| IXSU-F3111 | 10-35mm conductor size, 1core - Indoor type | |
| IXSU-F3121 | 25-95mm conductor size, 1core - Indoor type | |
| IXSU-F3131 | 95-240mm conductor size, 1core - Indoor type | |
| IXSU-F3141 | 240-500mm conductor size, 1core - Indoor type | |
| IXSU-F3151 | 500-800mm conductor size, 1core - Indoor type | |
| IXSU-F3161 | 1000-1200mm conductor size, 1core - Indoor type | |
| OXSU-F 3111 | 10-35mm conductor size, 1core - Outdoor type | |
| OXSU-F 3121 | 25-95mm conductor size, 1core - Outdoor type | |
| OXSU-F 3131 | 95-240mm conductor size, 1core - Outdoor type | |
| OXSU-F 3141 | 240-500mm conductor size, 1core - Outdoor type | |
| OXSU-F 3151 | 500-800mm conductor size, 1core - Outdoor type | |
| OXSU-F 3161 | 1000-1200mm conductor size, 1core - Outdoor type | |
| IXSU-F 3301 | 10-16mm conductor size, 3core - Indoor type | |
| IXSU-F 3311 | 16-35mm conductor size, 3core - Indoor type | |
| IXSU-F 3314 | 16-35mm conductor size, 3core - Indoor type | |
| IXSU-F 3321 | 25-70mm conductor size, 3core - Indoor type | |
| IXSU-F 3324 | 25-70mm conductor size, 3core - Indoor type | |
| IXSU-F 3331 | 95-240mm conductor size, 3core - Indoor type | |
| IXSU-F 3334 | 95-240mm conductor size, 3core - Indoor type | |
| IXSU-F 3341 | 240-500mm conductor size, 3core - Indoor type | |
| IXSU-F 3344 | 240-500mm conductor size, 3core - Indoor type | |
| OXSU-F 3311 | 16-35mm conductor size, 3core - Outdoor type | |
| OXSU-F 3314 | 16-35mm conductor size, 3core - Outdoor type | |
| OXSU-F 3321 | 25-70mm conductor size, 3core - Outdoor type | |
| OXSU-F 3324 | 25-70mm conductor size, 3core - Outdoor type | |
| OXSU-F 3331 | 95-240mm conductor size, 3core - Outdoor type | |
| OXSU-F 3334 | 95-240mm conductor size, 3core - Outdoor type | |
| OXSU-F 3341 | 240-500mm conductor size, 3core - Outdoor type |
Related products
-
TE Connectivity Raychem Medium Voltage Heat-shrink Zinc Oxide Stress Control Terminations up to 17.5 kV
-
TE Connectivity Raychem Medium Voltage Heat-shrink Terminations for MIND Paper Cables up to 17.5 kV
-

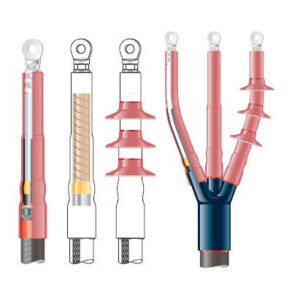

TE Connectivity Raychem Medium Voltage Heat-shrink Terminations for Polymeric Cables up to 17.5 kV
