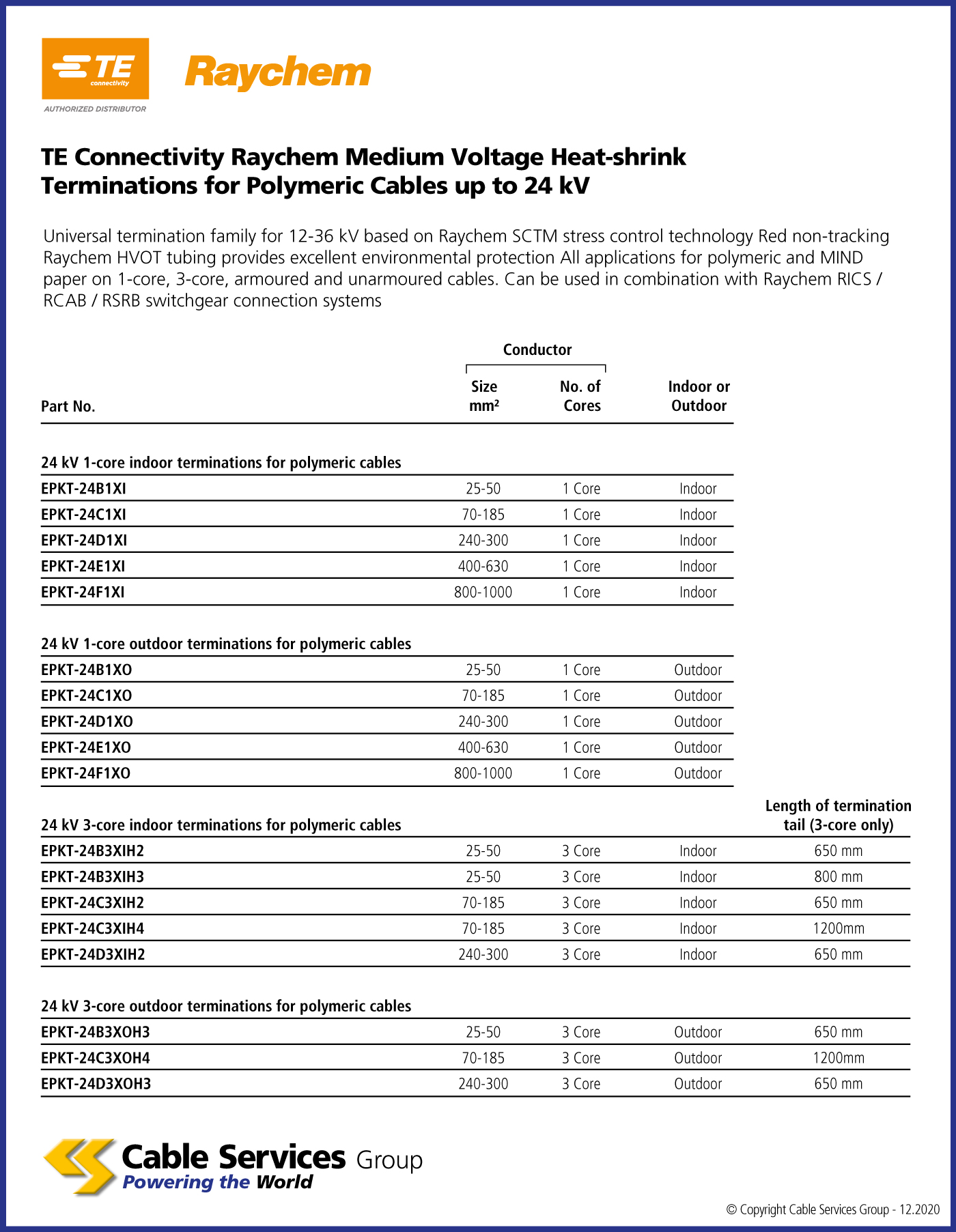

Selection Table

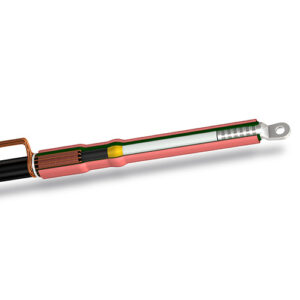

TE Connectivity Raychem Medium Voltage Heat-shrink Terminations for Polymeric Cables up to 24 kV
Universal termination family for 12-36 kV based on Raychem SCTM stress control technology Red non-tracking Raychem HVOT tubing provides excellent environmental protection All applications for polymeric and MIND paper on 1-core, 3-core, armoured and unarmoured cables. Can be used in combination with Raychem RICS / RCAB / RSRB switchgear connection systems
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKT24B1XI | 25-50mm conductor size, 1core - Indoor type | |
| EPKT24C1XI | 70-185mm conductor size, 1core - Indoor type | |
| EPKT24D1XI | 240-300mm conductor size, 1core - Indoor type | |
| EPKT24E1XI | 400-630mm conductor size, 1core - Indoor type | |
| EPKT24F1XI | 800-1000mm conductor size, 1core - Indoor type | |
| EPKT24B1XO | 25-50mm conductor size, 1core - Outdoor type | |
| EPKT24C1XO | 70-185mm conductor size, 1core - Outdoor type | |
| EPKT24D1XO | 240-300mm conductor size, 1core - Outdoor type | |
| EPKT24E1XO | 400-630mm conductor size, 1core - Outdoor type | |
| EPKT24F1XO | 800-1000mm conductor size, 1core - Outdoor type | |
| EPKT24B3XIH2 | 25-50mm conductor size, 3core - Indoor type | |
| EPKT24B3XIH3 | 25-50mm conductor size, 3core - Indoor type | |
| EPKT24C3XIH2 | 70-185mm conductor size, 3core - Indoor type | |
| EPKT24C3XIH4 | 70-185mm conductor size, 3core - Indoor type | |
| EPKT24D3XIH2 | 240-300mm conductor size, 3core - Indoor type | |
| EPKT24B3XOH3 | 25-50mm conductor size, 3core - Outdoor type | |
| EPKT24C3XOH4 | 70-185mm conductor size, 3core - Outdoor type | |
| EPKT24D3XOH3 | 240-300mm conductor size, 3core - Outdoor type |
