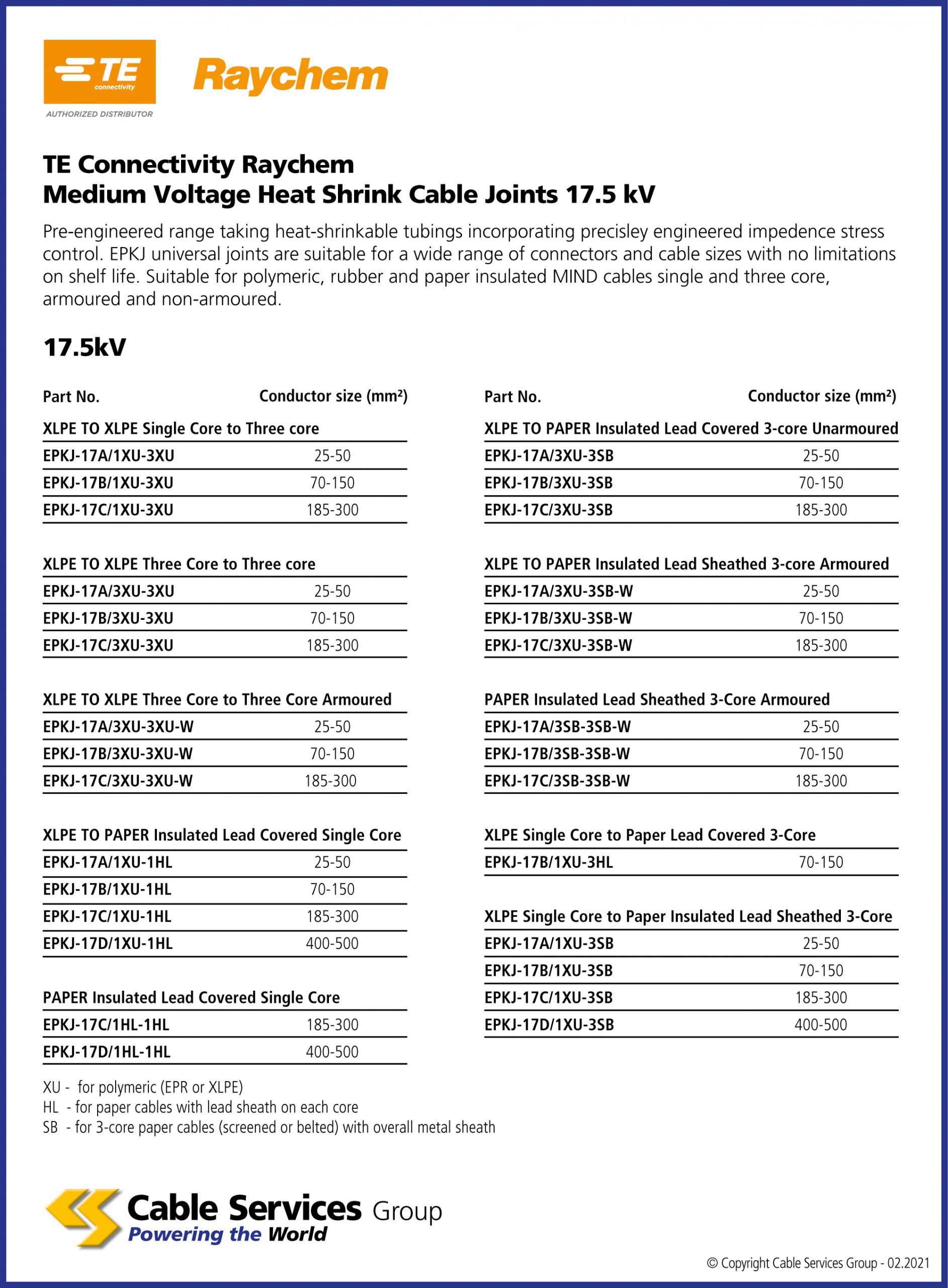

Selection Table

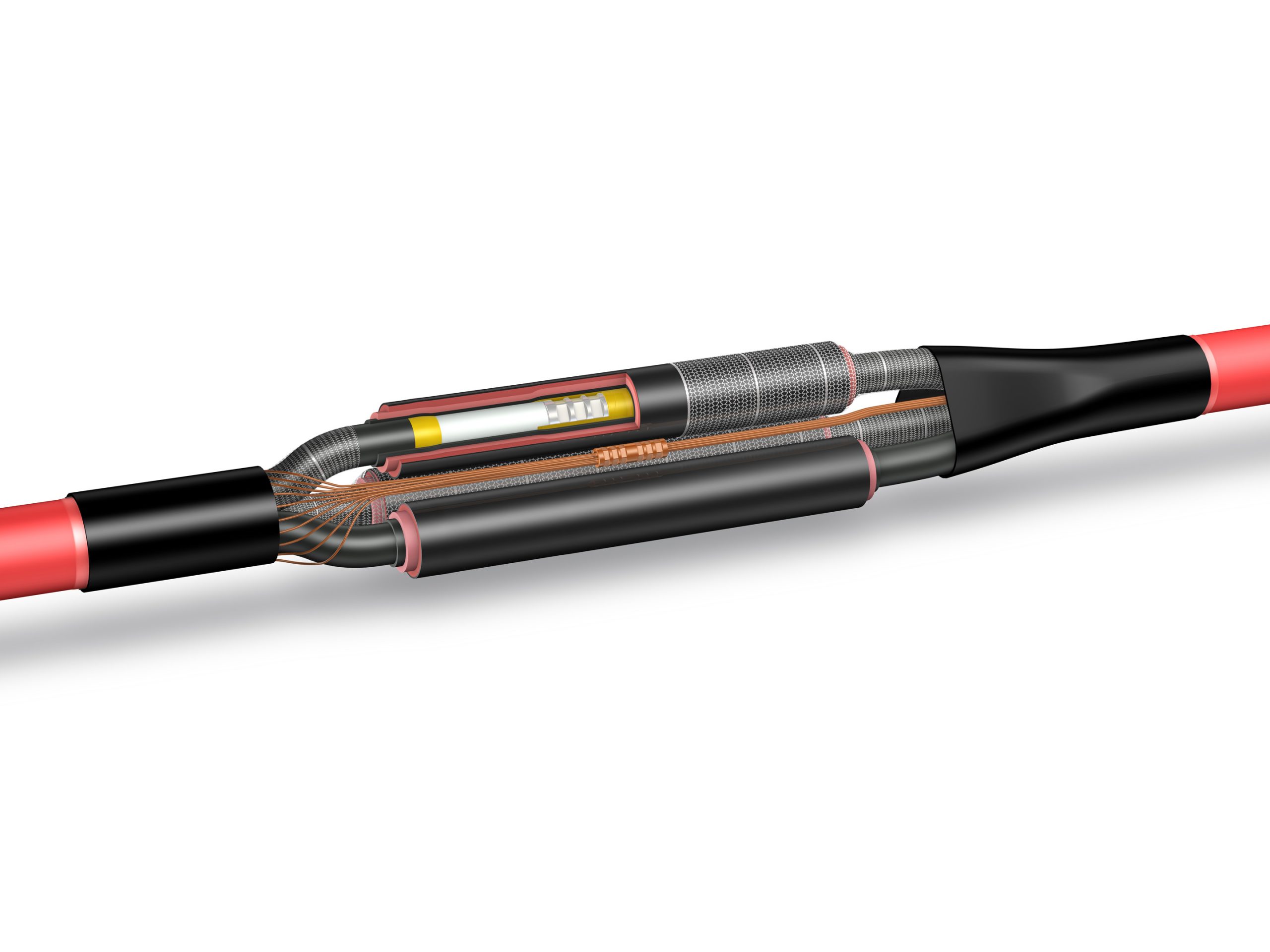

TE Connectivity Raychem Medium Voltage Heat Shrink Cable Joints up to 17.5 kV
Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control. EPKJ universal joints are suitable for a wide range of connectors and cable sizes with no limitations on shelf life. Suitable for polymeric, rubber and paper insulated MIND cables single and three core, armoured and non-armoured
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKJ-17A/1XU-3XU | 25-50mm2 cable connector size, XLPE TO XLPE Single Core to Three core size type | |
| EPKJ-17B/1XU-3XU | 70-150mm2 cable connector size, XLPE TO XLPE Single Core to Three core size type | |
| EPKJ-17C/1XU-3XU | 185-300mm2 cable connector size, XLPE TO XLPE Single Core to Three core size type | |
| EPKJ-17A/3XU-3XU | 25-50mm2 cable connector size, XLPE TO XLPE Three Core to Three core size type | |
| EPKJ-17B/3XU-3XU | 70-150mm2 cable connector size, XLPE TO XLPE Three Core to Three core size type | |
| EPKJ-17C/3XU-3XU | 185-300mm2 cable connector size, XLPE TO XLPE Three Core to Three core size type | |
| EPKJ-17A/3XU-3XU-W | 25-50mm2 cable connector size, XLPE TO XLPE Three Core to Three Core Armoured size type | |
| EPKJ-17B/3XU-3XU-W | 70-150mm2 cable connector size, XLPE TO XLPE Three Core to Three Core Armoured size type | |
| EPKJ-17C/3XU-3XU-W | 185-300mm2 cable connector size, XLPE TO XLPE Three Core to Three Core Armoured size type | |
| EPKJ-17A/1XU-1HL | 25-50mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ-17B/1XU-1HL | 70-150mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ-17C/1XU-1HL | 185-300mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ-17D/1XU-1HL | 400-500mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ-17C/1HL-1HL | 185-300mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ-17D/1HL-1HL | 400-500mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ-17A/3XU-3SB | 25-50mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ-17B/3XU-3SB | 70-150mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ-17C/3XU-3SB | 185-300mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ-17A/3XU-3SB-W | 25-50mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ-17B/3XU-3SB-W | 70-150mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ-17C/3XU-3SB-W | 185-300mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ-17A/3SB-3SB-W | 25-50mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ-17B/3SB-3SB-W | 70-150mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ-17C/3SB-3SB-W | 185-300mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ-17B/1XU-3HL | 70-150mm2 cable connector size, XLPE Single Core to Paper Lead Covered 3-Core size type | |
| EPKJ-17A/1XU-3SB | 25-50mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ-17B/1XU-3SB | 70-150mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ-17C/1XU-3SB | 185-300mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ-17D/1XU-3SB | 400-500mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type |
