Selection Table

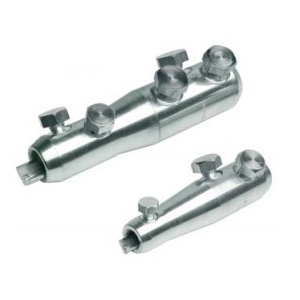

TE Connectivity Medium Voltage Reduction Connectors
TE Connectivity’s (TE) mechanical connectors are designed for use in low and medium voltage applications.
Data sheets

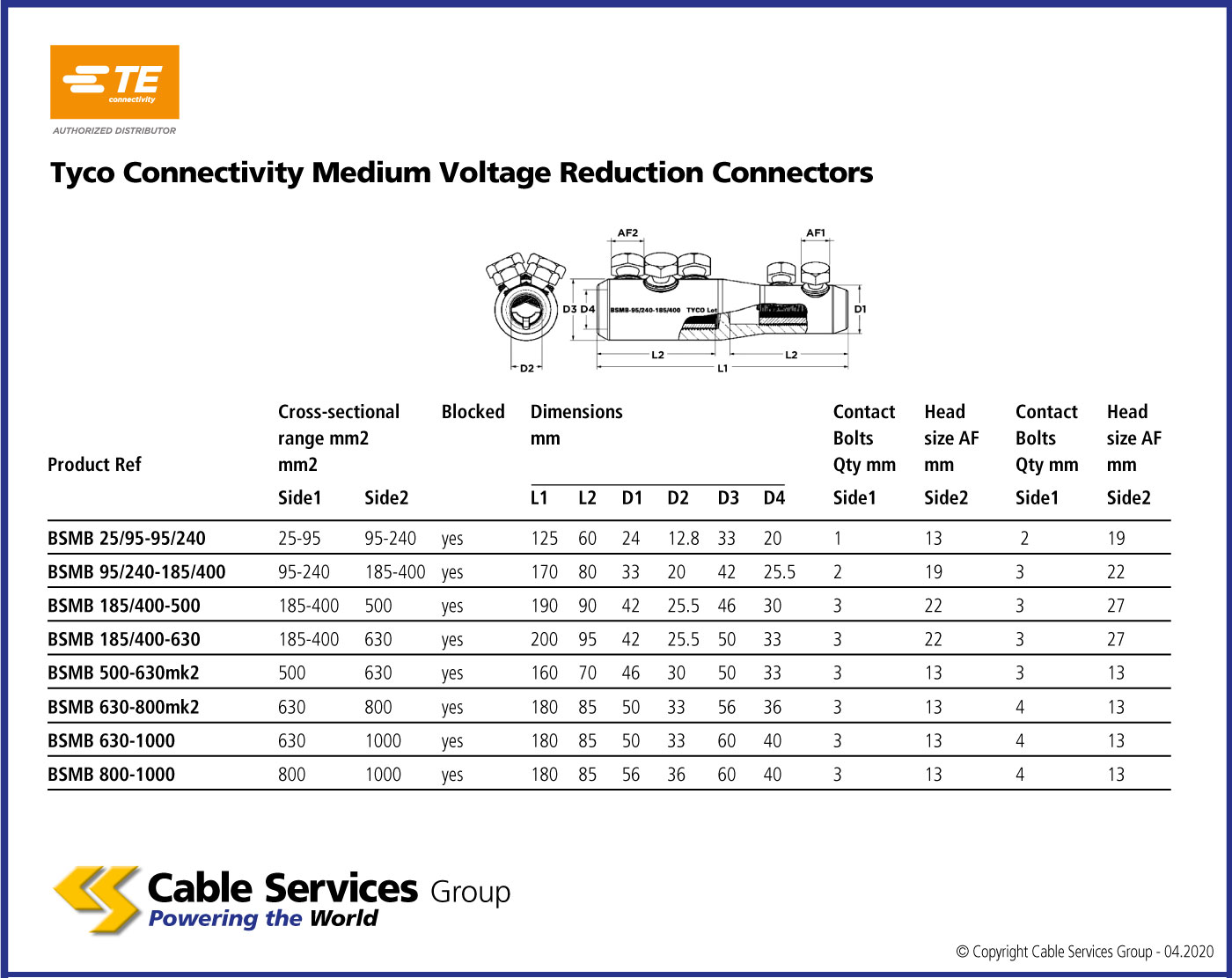

| Reference | Name | |
|---|---|---|
| BSMB25/95-95/240 | 25 - 95mm2 cross section conductor size, 95 - 240mm2 cross section fixing size | |
| BSMB95/240-185/400 | 95 - 240mm2 cross section conductor size, 185 - 400mm2 cross section fixing size | |
| BSMB185/400-500 | 185 - 400mm2 cross section conductor size, 500mm2 cross section fixing size | |
| BSMB185/400-630 | 185 - 400mm2 cross section conductor size, 630mm2 cross section fixing size | |
| BSMB500-630MK2 | 500mm2 cross section conductor size, 630mm2 cross section fixing size | |
| BSMB630-800MK2 | 630mm2 cross section conductor size, 800mm2 cross section fixing size | |
| BSMB630-1000 | 630mm2 cross section conductor size, 1000mm2 cross section fixing size | |
| BSMB800-1000 | 800mm2 cross section conductor size, 1000mm2 cross section fixing size |
