Selection Table

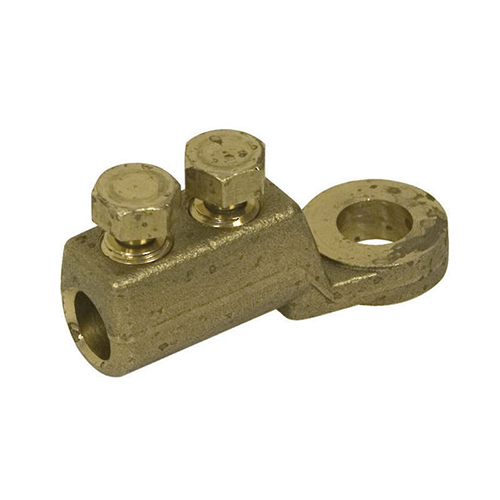

TE Connectivity BET Underground Brass End Terminations
These connectors are intented as end terminations for use on conductors of all types (stranded or solid, aluminum or copper). They are especially suitable for the copper neutral or CNE conductors of LV service and mains cables. They can also be used on the earth conductors and copper screening wires of MV cables.
Data Sheets
| Reference | Name | |
|---|---|---|
| BET35-12 | 35mm2 conductor conductor size, M12stud size fixing size | |
| BET60-12 | 60mm2 conductor conductor size, M12stud size fixing size | |
| BET60-16 | 60mm2 conductor conductor size, M16stud size fixing size | |
| BET120-10 | 120mm2 conductor conductor size, M10stud size fixing size | |
| BET120-12 | 120mm2 conductor conductor size, M12stud size fixing size | |
| BET120-16 | 120mm2 conductor conductor size, M16stud size fixing size |
