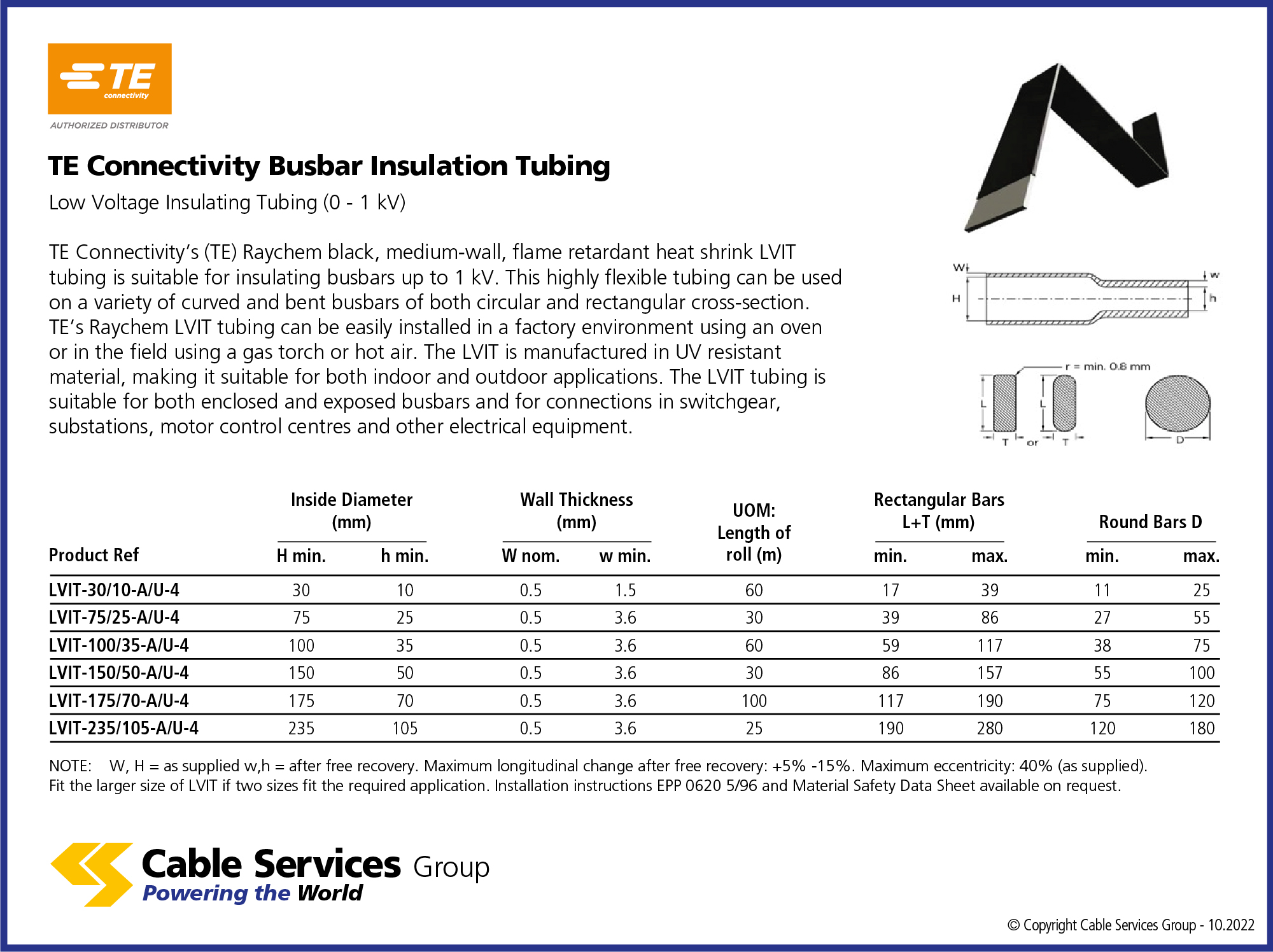

Selection Table
TE Connectivity 1 kV Busbar Insulation Tubing – LVIT

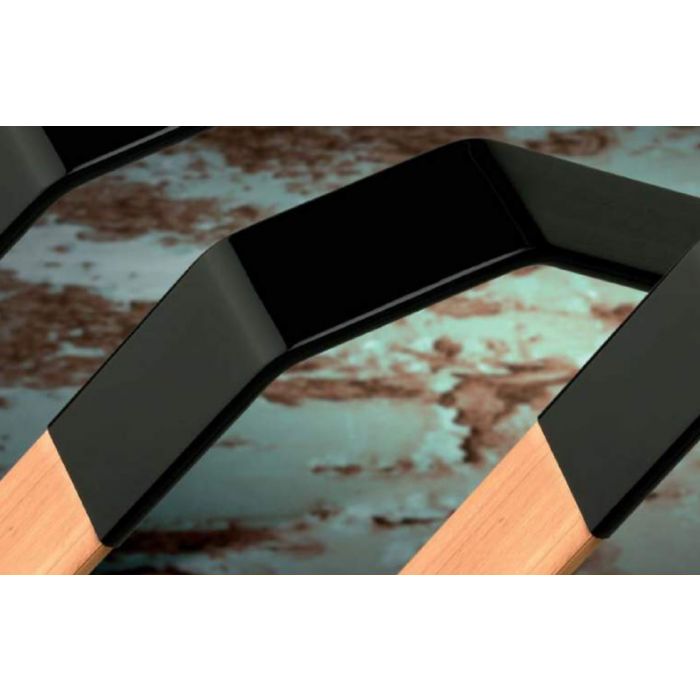

TE Connectivity’s (TE) Raychem black, medium-wall, flame retardant heat shrink LVIT tubing is suitable for insulating busbars up to 1 kV. This highly flexible tubing can be used on a variety of curved and bent busbars of both circular and rectangular cross-section. TE’s Raychem LVIT tubing can be easily installed in a factory environment using an oven or in the field using a gas torch or hot air. The LVIT is manufactured in UV resistant material, making it suitable for both indoor and outdoor applications. The LVIT tubing is suitable for both enclosed and exposed busbars and for connections in switchgear, substations, motor control centres and other electrical equipment.
Data Sheets
| Reference | Name | |
|---|---|---|
| LVIT-30/10-A/U-4 | 30mm x 10mminside diameter size | |
| LVIT-75/25-A/U-4 | 75mm x 25mminside diameter size | |
| LVIT-100/35-A/U-4 | 100mm x 35mminside diameter size | |
| LVIT-150/50-A/U-4 | 150mm x 50mminside diameter size | |
| LVIT-175/70-A/U-4 | 175mm x 70mminside diameter size | |
| LVIT-235/105-A/U-4 | 235mm x 105mminside diameter size |
