Description
Single Eye Cable Stocking Sizing

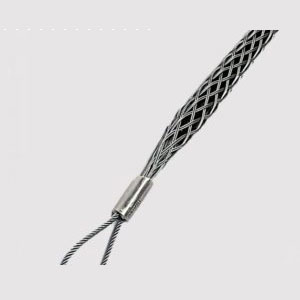

Designed for Versatility SEB International’s Single Eye Cable Stockings are available in a range of sizes to accommodate various cable diameters, from 6mm to 130mm. Each size is carefully engineered with a specified lattice length and overall length to provide secure and efficient cable support or pulling.

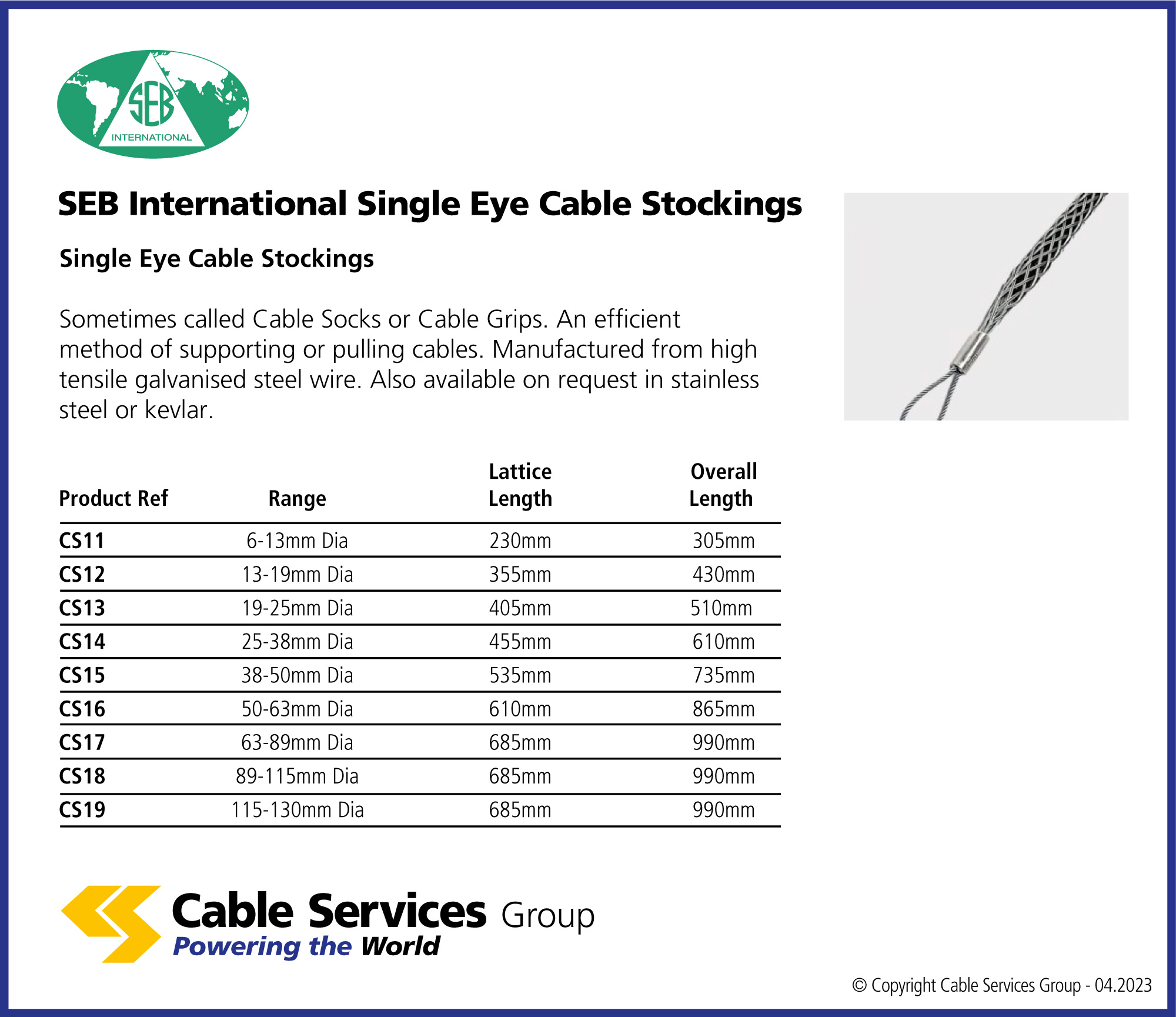

Available Sizes:
- CS11 Range: 6-13mm Dia, 230mm Lattice Length, 305mm Overall Length
- CS12 Range: 13-19mm Dia, 355mm Lattice Length, 430mm Overall Length
- CS13 Range: 19-25mm Dia, 405mm Lattice Length, 510mm Overall Length
- CS14 Range: 25-38mm Dia, 455mm Lattice Length, 610mm Overall Length
- CS15 Range: 38-50mm Dia, 535mm Lattice Length, 735mm Overall Length
- CS16 Range: 50-63mm Dia, 610mm Lattice Length, 865mm Overall Length
- CS17 Range: 63-89mm Dia, 685mm Lattice Length, 990mm Overall Length
- CS18 Range: 89-115mm Dia, 685mm Lattice Length, 990mm Overall Length
- CS19 Range: 115-130mm Dia, 685mm Lattice Length, 990mm Overall Length
A Choice Of Materials For Cable Stockings
While the standard SEB International Single Eye Cable Stockings are manufactured from high-tensile galvanized steel wire, stainless steel and Kevlar variations are also available.
We also stock the double eye cable stockings from SEB International too.
