Selection Table

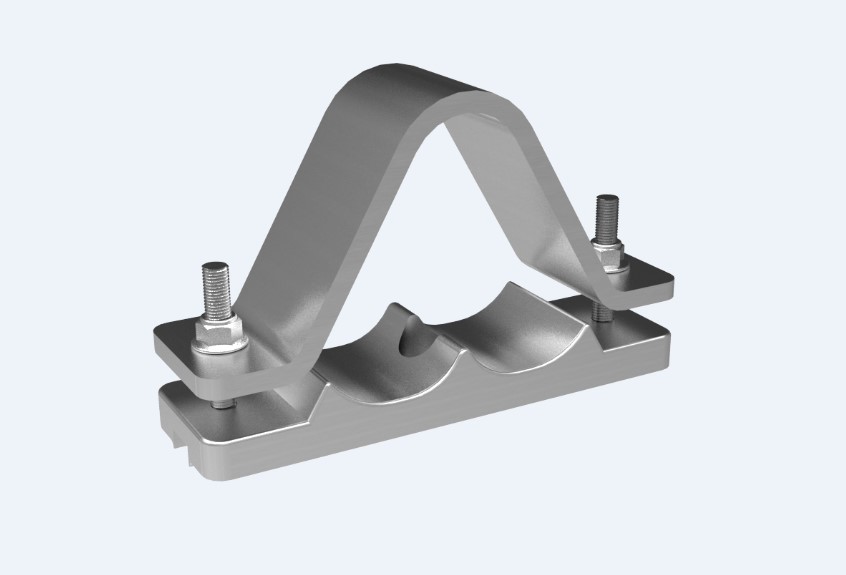

Prysmian Orion Aluminium Cleat (Epoxy Coated)
The orion cleat provides the strongest support for cables laid in trefoil formation. Suitable for LV, MV and HV cable designs, the orion cleat features deep cast bases to easy cable installations.

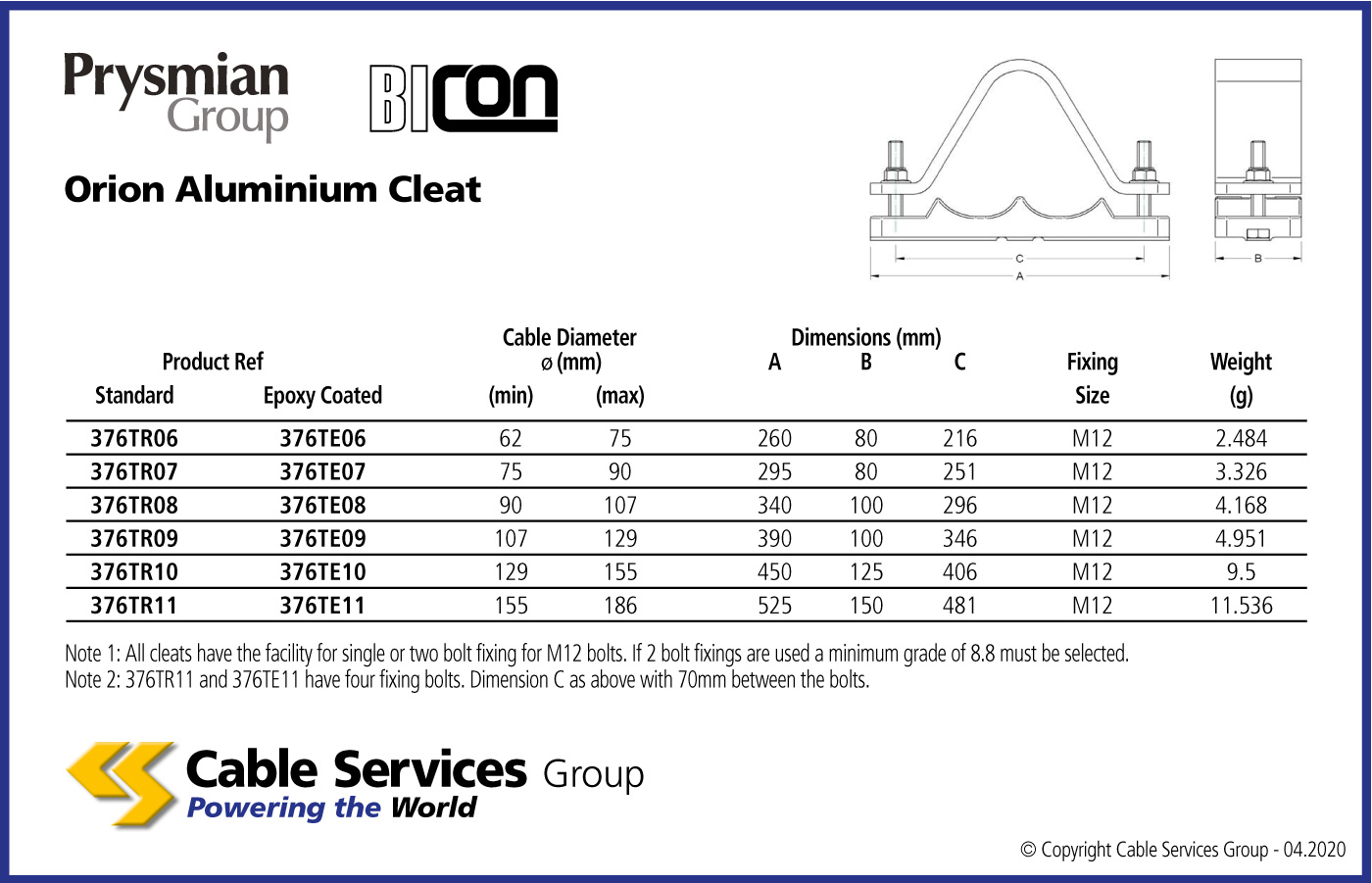

Data Sheets
| Reference | Name | |
|---|---|---|
| 376TE06 | 62 - 75mm cable sizing | |
| 376TE07 | 75 - 90mm cable sizing | |
| 376TE08 | 90 - 107mm cable sizing | |
| 376TE09 | 107 - 129mm cable sizing | |
| 376TE10 | 129 - 155mm cable sizing | |
| 376TE11 | 155 - 186mm cable sizing |
