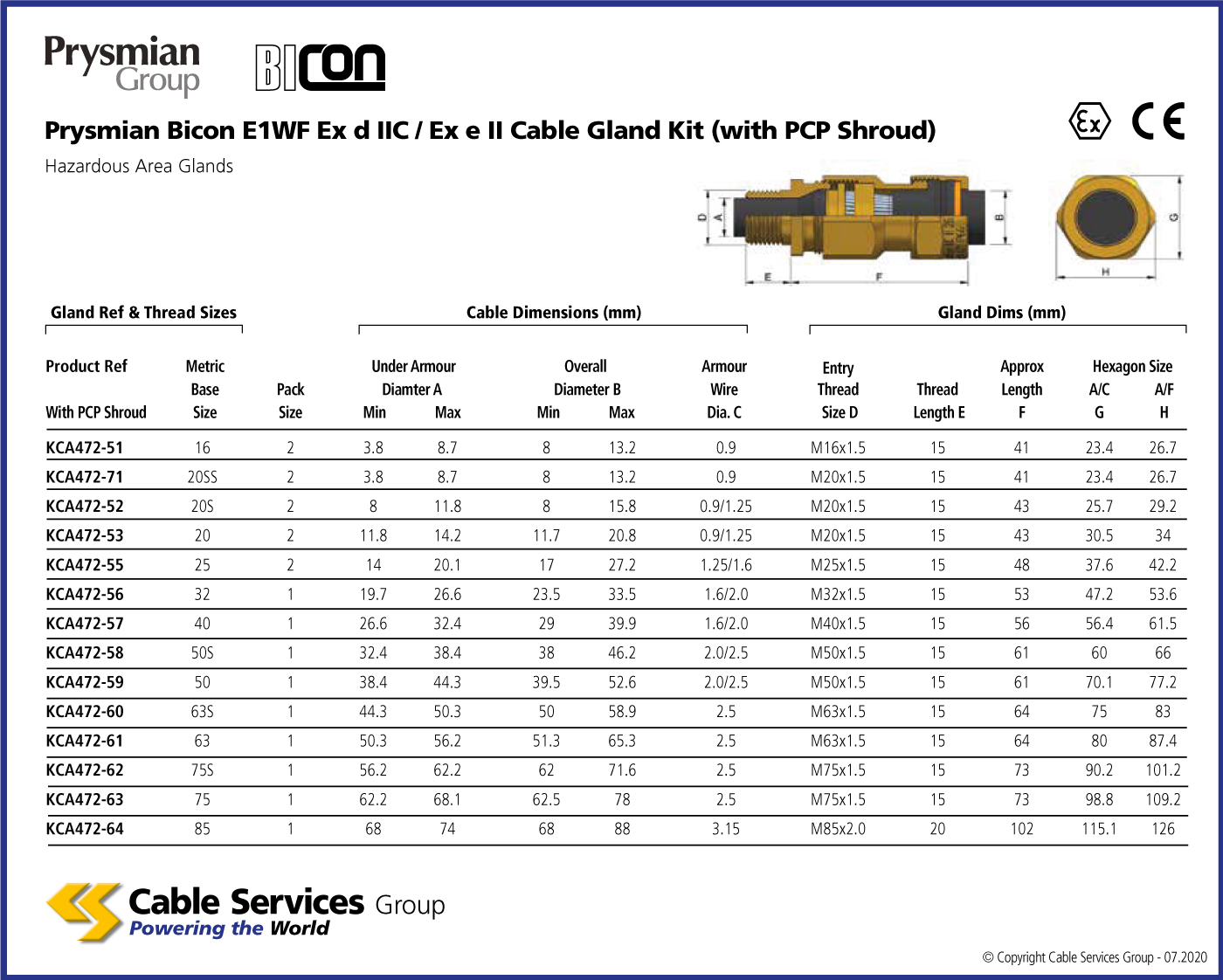

Selection Table

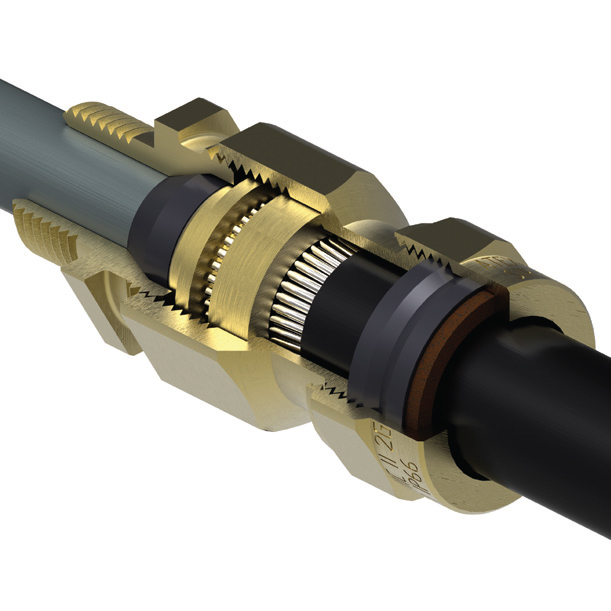

Prysmian E1WF Gland Kit with PVC Shroud
The E1WF weatherproof hazardous gland is a dual seal high performance cable gland for steel wire armoured cables. Kit comprises of: E1WF Gland, Brass Earth Tag, Brass Locknut, Nylon Sealing Washer and PCP Shroud (2 per kit up and including 25mm size)
Data Sheets
| Reference | Name | |
|---|---|---|
| KCA472-51 | 16mm conductor size | |
| KCA472-71 | 20SSmm conductor size | |
| KCA472-52 | 20Smm conductor size | |
| KCA472-53 | 20mm conductor size | |
| KCA472-55 | 25mm conductor size | |
| KCA472-56 | 32mm conductor size | |
| KCA472-57 | 40mm conductor size | |
| KCA472-58 | 50Smm conductor size | |
| KCA472-59 | 50mm conductor size | |
| KCA472-60 | 63Smm conductor size | |
| KCA472-61 | 63mm conductor size | |
| KCA472-62 | 75Smm conductor size | |
| KCA472-63 | 75mm conductor size | |
| KCA472-64 | 85mm conductor size |
