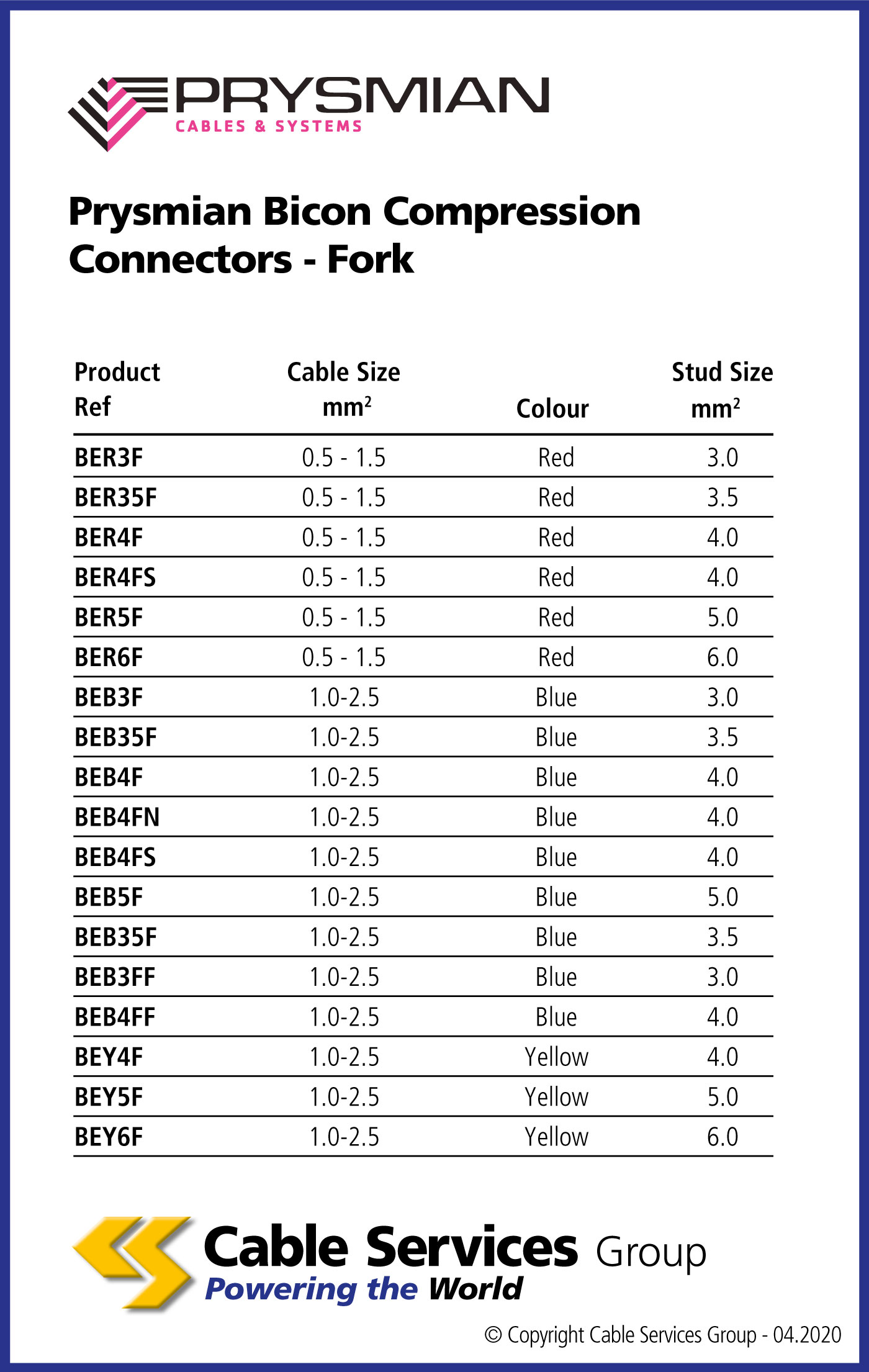

Selection Table

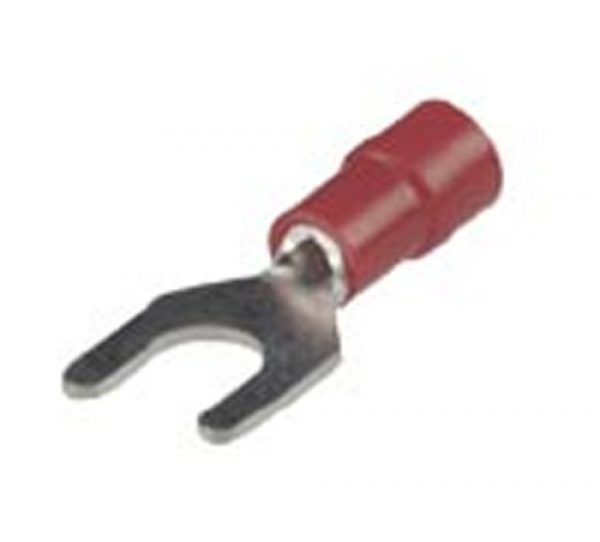

Prysmian Bicon Compression Connectors – Fork
Easy Entry – Pre-insulated connectors
Data Sheets
| Reference | Name | |
|---|---|---|
| BER3F | 0.5 - 1.5mm2 conductor conductor size, 3.0mm2 stud size fixing size | |
| BER35F | 0.5 - 1.5mm2 conductor conductor size, 3.5mm2 stud size fixing size | |
| BER4F | 0.5 - 1.5mm2 conductor conductor size, 4.0mm2 stud size fixing size | |
| BER4FS | 0.5 - 1.5mm2 conductor conductor size, 4.0mm2 stud size fixing size | |
| BER5F | 0.5 - 1.5mm2 conductor conductor size, 5.0mm2 stud size fixing size | |
| BER6F | 0.5 - 1.5mm2 conductor conductor size, 6.0mm2 stud size fixing size | |
| BEB3F | 1.0-2.5mm2 conductor conductor size, 3.0mm2 stud size fixing size | |
| BEB35F | 1.0-2.5mm2 conductor conductor size, 3.5mm2 stud size fixing size | |
| BEB4F | 1.0-2.5mm2 conductor conductor size, 4.0mm2 stud size fixing size | |
| BEB4FN | 1.0-2.5mm2 conductor conductor size, 4.0mm2 stud size fixing size | |
| BEB4FS | 1.0-2.5mm2 conductor conductor size, 4.0mm2 stud size fixing size | |
| BEB5F | 1.0-2.5mm2 conductor conductor size, 5.0mm2 stud size fixing size | |
| BEB3FF | 1.0-2.5mm2 conductor conductor size, 3.0mm2 stud size fixing size | |
| BEB4FF | 1.0-2.5mm2 conductor conductor size, 4.0mm2 stud size fixing size | |
| BEY4F | 1.0-2.5mm2 conductor conductor size, 4.0mm2 stud size fixing size | |
| BEY5F | 1.0-2.5mm2 conductor conductor size, 5.0mm2 stud size fixing size | |
| BEY6F | 1.0-2.5mm2 conductor conductor size, 6.0mm2 stud size fixing size |
