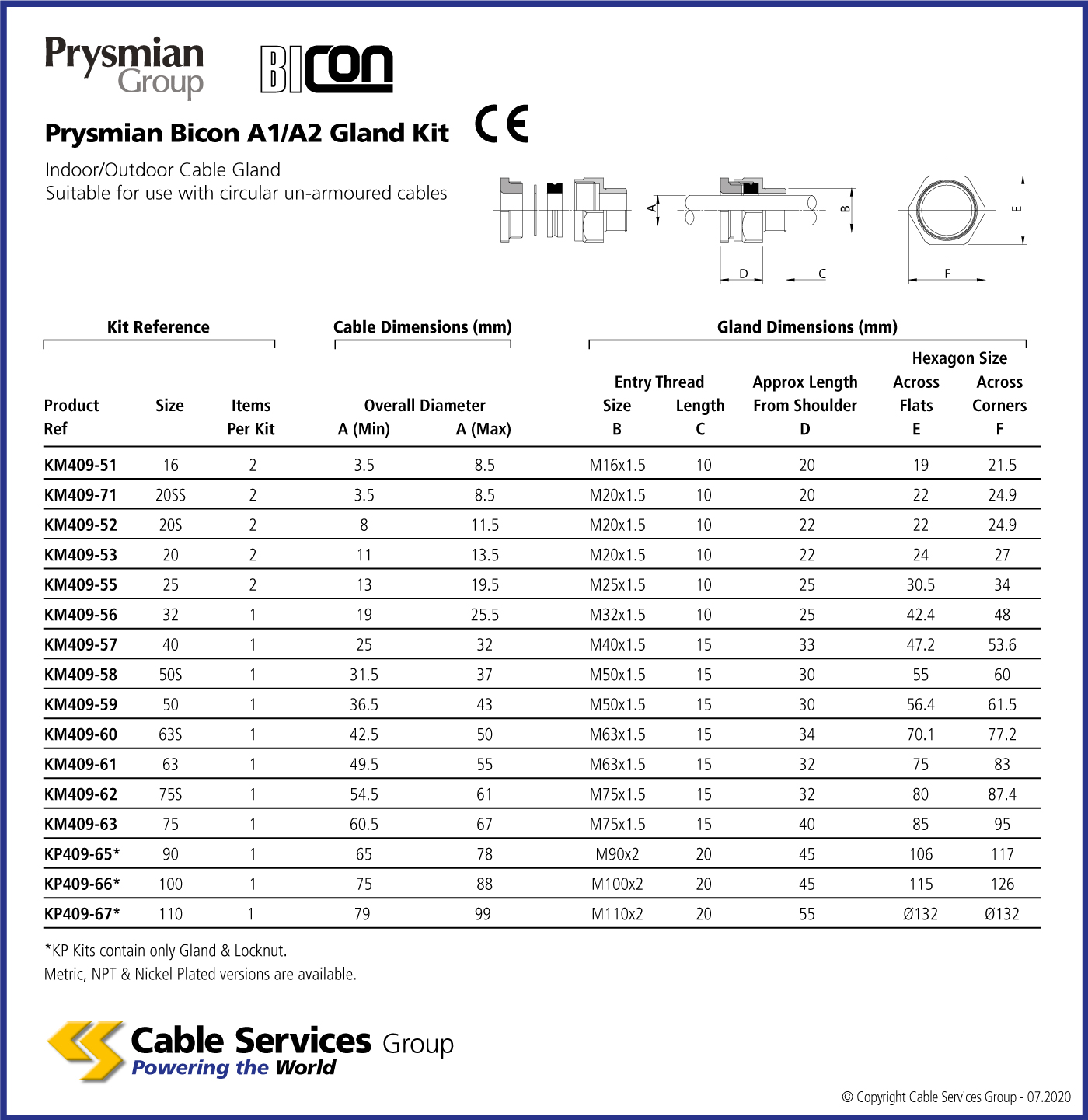

Selection Table

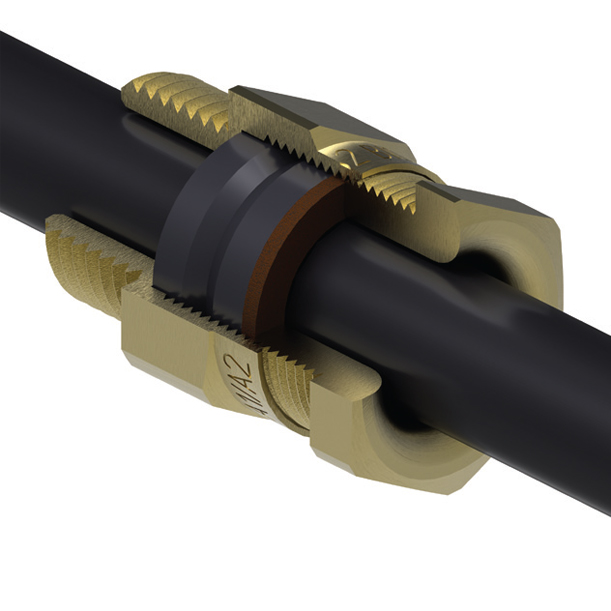

Prysmian Bicon A1/A2 Gland Kit
Indoor/Outdoor Cable Gland. Suitable for use with circular un-armoured cables. The KM409 Series kit comprises of: A1/A2 Gland, Brass Locknut and PVC Shroud. (2 per kit up to and including 25mm size)
Data Sheets
| Reference | Name | |
|---|---|---|
| KM40951 | 16mm conductor size | |
| KM40971 | 20SSmm conductor size | |
| KM40952 | 20Smm conductor size | |
| KM40953 | 20mm conductor size | |
| KM40955 | 25mm conductor size | |
| KM40956 | 32mm conductor size | |
| KM40957 | 40mm conductor size | |
| KM40958 | 50Smm conductor size | |
| KM40959 | 50mm conductor size | |
| KM40960 | 63Smm conductor size | |
| KM40961 | 63mm conductor size | |
| KM40962 | 75Smm conductor size | |
| KM40963 | 75mm conductor size | |
| KM40965 | 90mm conductor size | |
| KM40966 | 100mm conductor size | |
| KM40967 | 110mm conductor size |
