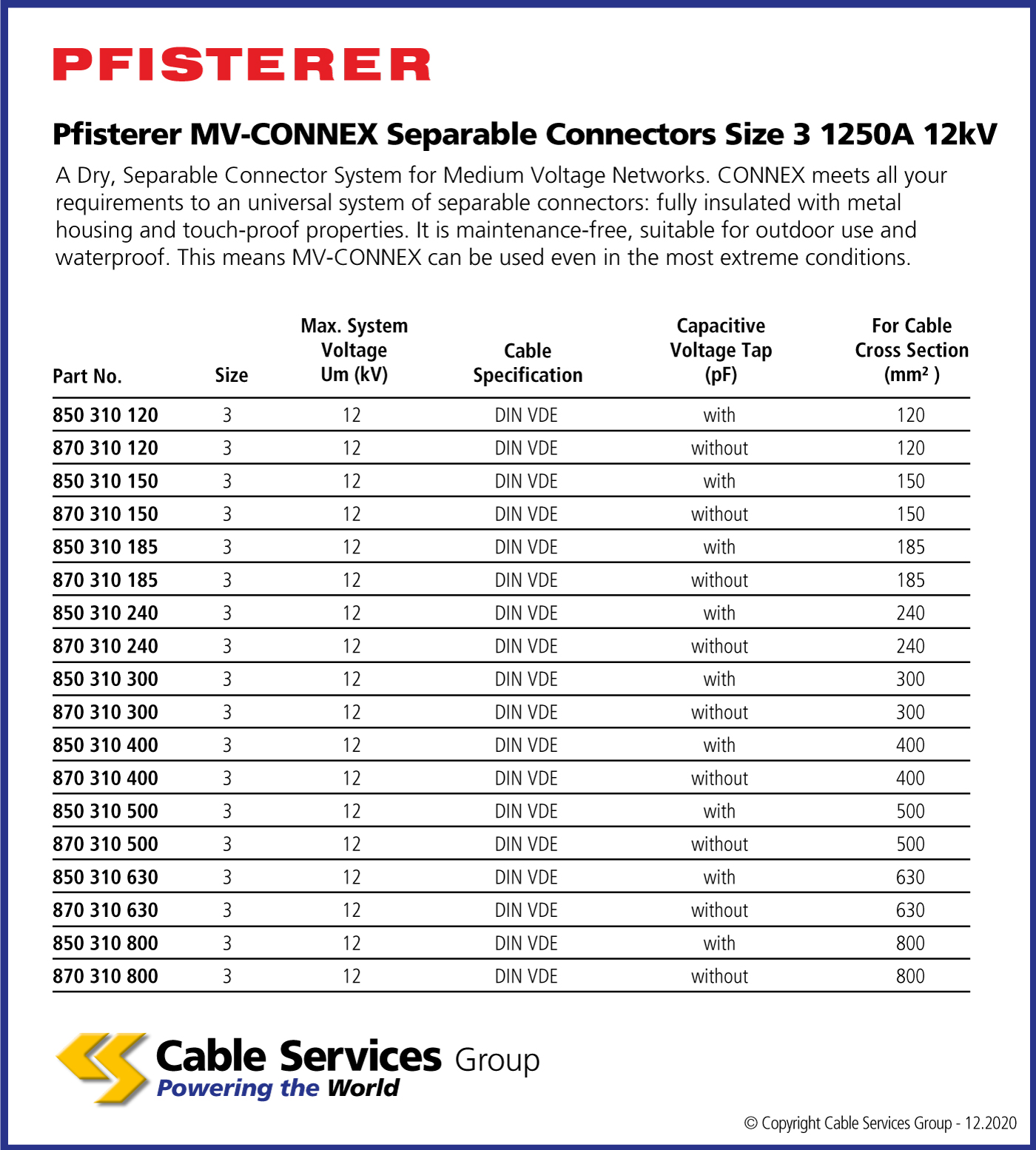

Selection Table

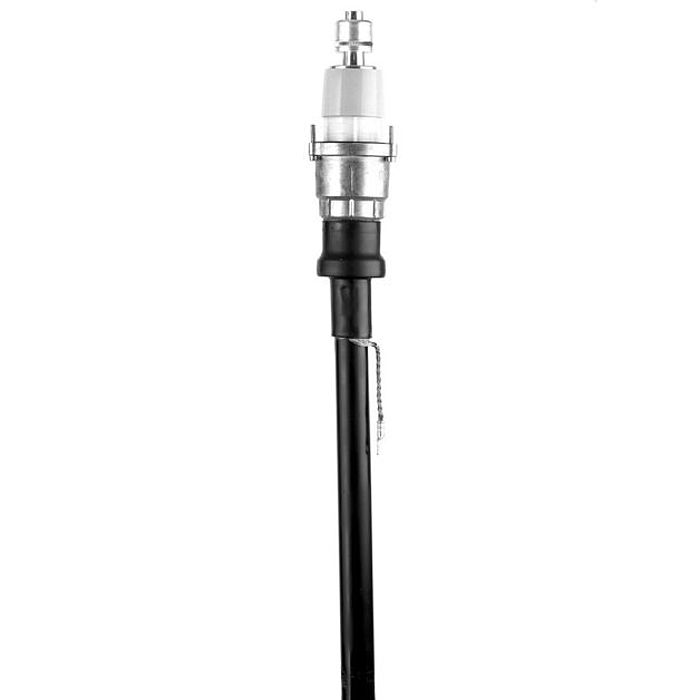

Pfisterer MV-CONNEX Separable Connectors Size 3 1250A 12kV
A Dry, Separable Connector Systemfor Medium Voltage Networks. CONNEX meets all your requirements to an universal system of separable connectors: fully insulated with metal housing and touch-proof properties. It is maintenance-free, suitable for outdoor use and waterproof. This means MV-CONNEX can be used even in the most extreme conditions.
Data Sheets
| Reference | Name | |
|---|---|---|
| 850 310 120 | 120mm2 cross section, With type | |
| 870 310 120 | 120mm2 cross section, Without type | |
| 850 310 150 | 150mm2 cross section, With type | |
| 870 310 150 | 150mm2 cross section, Without type | |
| 850 310 185 | 185mm2 cross section, With type | |
| 870 310 185 | 185mm2 cross section, Without type | |
| 850 310 240 | 240mm2 cross section, With type | |
| 870 310 240 | 240mm2 cross section, Without type | |
| 850 310 300 | 300mm2 cross section, With type | |
| 870 310 300 | 300mm2 cross section, Without type | |
| 850 310 400 | 400mm2 cross section, With type | |
| 870 310 400 | 400mm2 cross section, Without type | |
| 850 310 500 | 500mm2 cross section, With type | |
| 870 310 500 | 500mm2 cross section, Without type | |
| 850 310 630 | 630mm2 cross section, With type | |
| 870 310 630 | 630mm2 cross section, Without type | |
| 850 310 800 | 800mm2 cross section, With type | |
| 870 310 800 | 800mm2 cross section, Without type |
