Selection Table

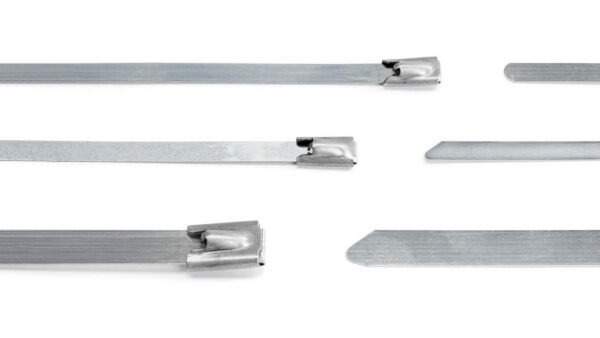

Partex Stainless Steel Cable Ties
- Roller ball stainless steel cable
- Self locking design for fast and secure installation.
- Fully enclosed head prevents dirt or grit from interfering with locking mechanism.
- Smooth rounded edges for safe handling.
- Suitable for all types of cable insulation.
- 316 Stainless Steel
- Ideal for applications where corrosion, vibration, radiation or extremes of temperature are a concern.
- Fire proof, UV Resistant and halogen free. · Temperature range: -80°C to +500°C
Data Sheets

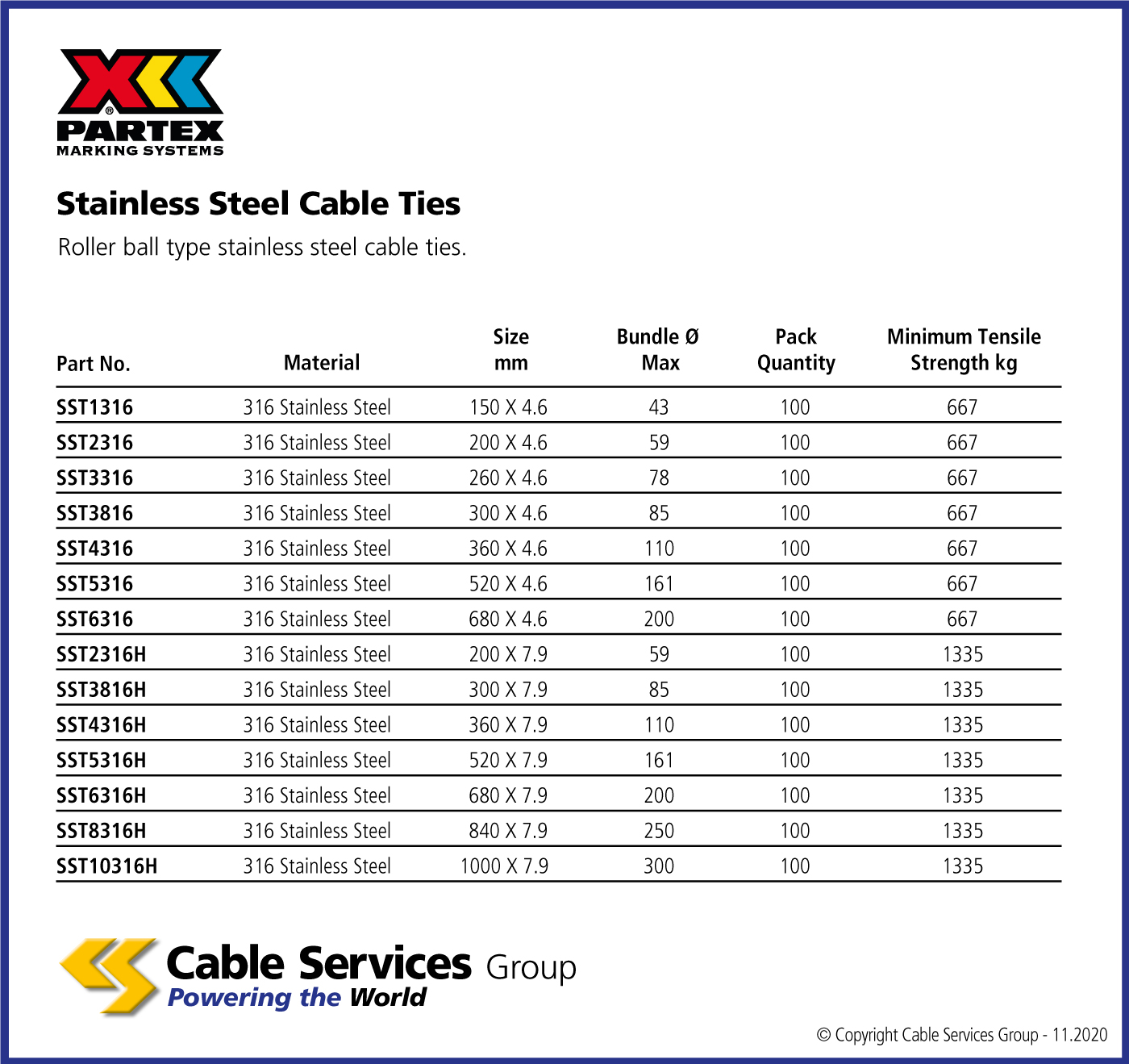

| Reference | Name | |
|---|---|---|
| SST1316 | 150 X 4.6mm cable sizing | |
| SST2316 | 200 X 4.6mm cable sizing | |
| SST3316 | 260 X 4.6mm cable sizing | |
| SST3816 | 300 X 4.6mm cable sizing | |
| SST4316 | 360 X 4.6mm cable sizing | |
| SST5316 | 520 X 4.6mm cable sizing | |
| SST6316 | 680 X 4.6mm cable sizing | |
| SST2316H | 200 X 7.9mm cable sizing | |
| SST3816H | 300 X 7.9mm cable sizing | |
| SST4316H | 360 X 7.9mm cable sizing | |
| SST5316H | 520 X 7.9mm cable sizing | |
| SST6316H | 680 X 7.9mm cable sizing | |
| SST8316H | 840 X 7.9mm cable sizing | |
| SST10316H | 1000 X 7.9mm cable sizing |
