Technical Data

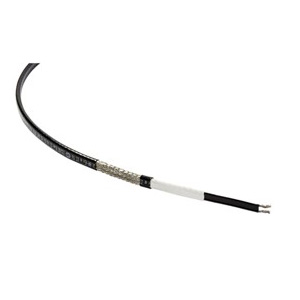

nVent Raychem BTV Self-Regulating Heating Cable
nVent RAYCHEM BTV self-regulating trace heating cables provide freeze protection and process temperature maintenance, up to 150 °F/65 °C, of pipes/vessels without steam cleaning requirements. They withstand intermittent exposure to 185 °F/85 °C and are hazardous area approved. The polyolefin outer jacket (-CR) is suitable for mild inorganic solutions. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.
Data Sheets

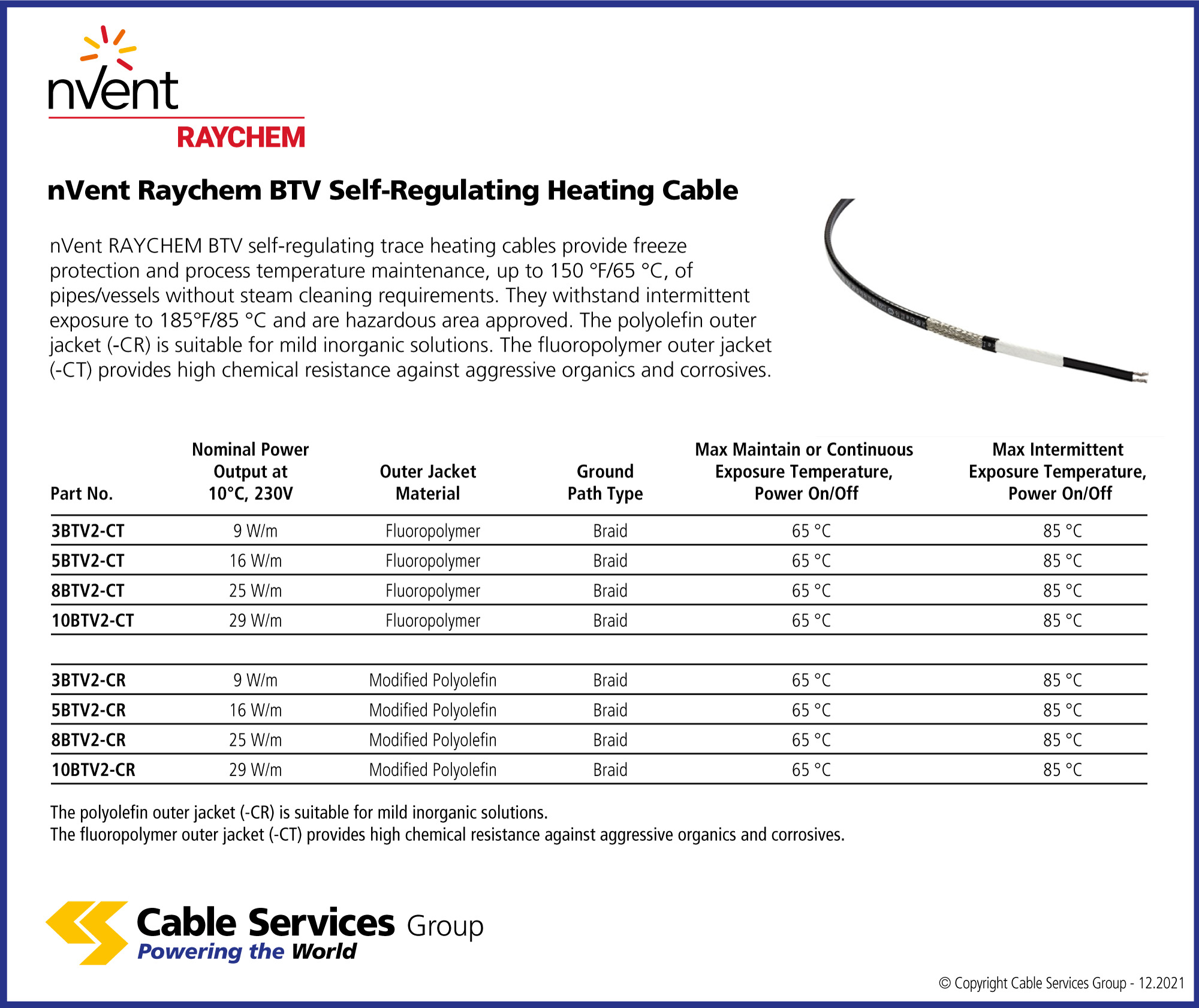

| Reference | Name | |
|---|---|---|
| 3BTV2-CT | 9 W/m description, Fluoropolymer size | |
| 5BTV2-CT | 16 W/m description, Fluoropolymer size | |
| 8BTV2-CT | 25 W/m description, Fluoropolymer size | |
| 10BTV2-CT | 29 W/m description, Fluoropolymer size | |
| 3BTV2-CR | 9 W/m description, Modified Polyolefin size | |
| 5BTV2-CR | 16 W/m description, Modified Polyolefin size | |
| 8BTV2-CR | 25 W/m description, Modified Polyolefin size | |
| 10BTV2-CR | 29 W/m description, Modified Polyolefin size |
