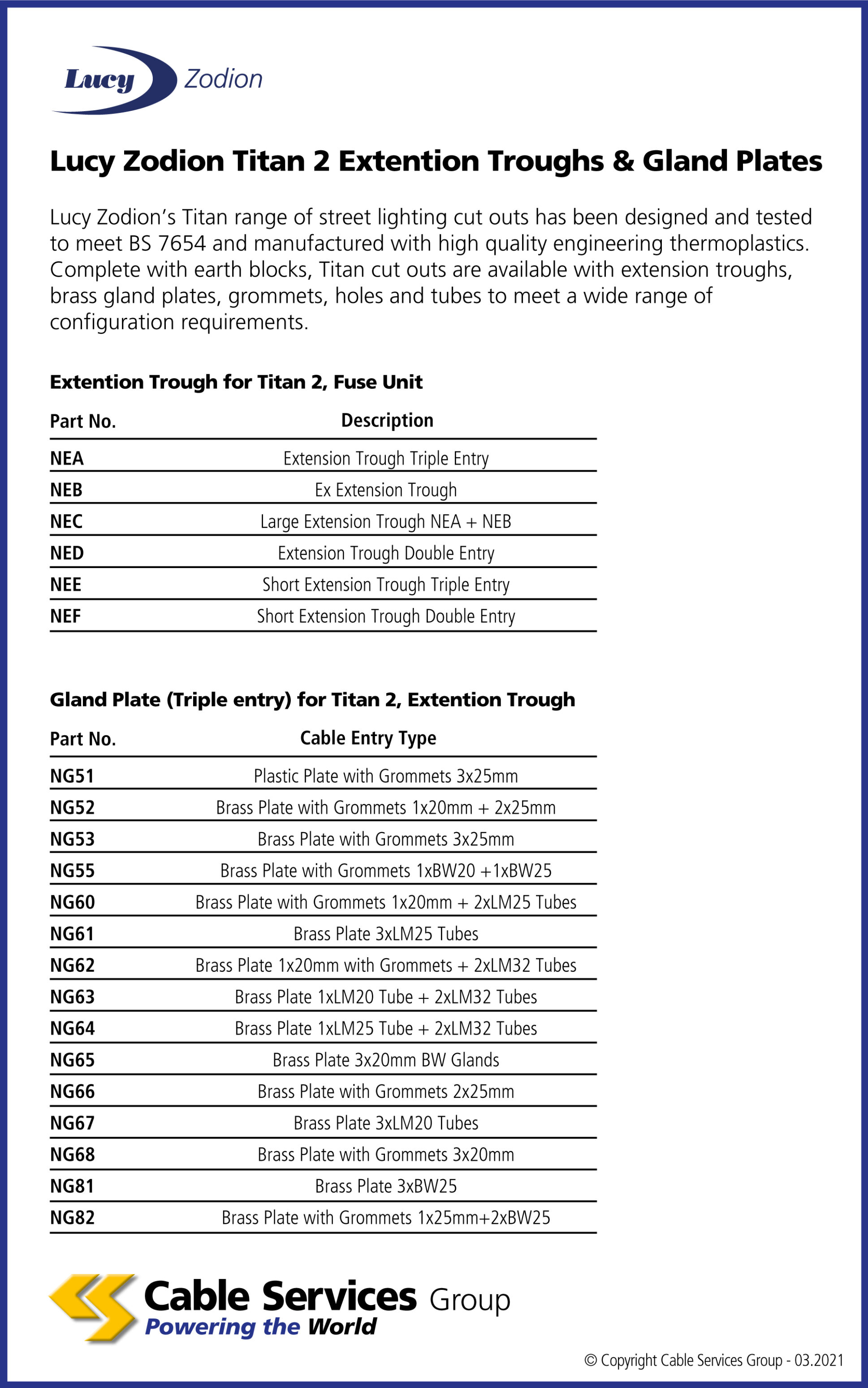

Selection Table
Lucy Zodion Titan 2 Extention Troughs & Gland Plates

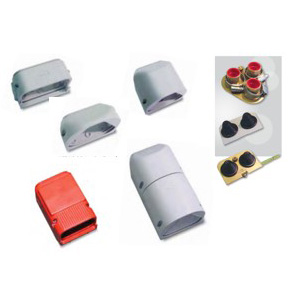

Lucy Zodion’s Titan range of street lighting cut outs has been designed and tested to meet BS 7654 and manufactured with high quality engineering thermoplastics. Complete with earth blocks, Titan cut outs are available with extension troughs, brass gland plates, grommets, holes and tubes to meet a wide range of configuration requirements.
Data Sheets
| Reference | Name | |
|---|---|---|
| NEA | Extension Trough Triple Entry variant | |
| NEB | Ex Extension Trough variant | |
| NEC | Large Extension Trough NEA + NEB variant | |
| NED | Extension Trough Double Entry variant | |
| NEE | Short Extension Trough Triple Entry variant | |
| NEF | Short Extension Trough Double Entry variant | |
| NG51 | Plastic Plate with Grommets 3x25mm variant | |
| NG52 | Brass Plate with Grommets 1x20mm + 2x25mm variant | |
| NG53 | Brass Plate with Grommets 3x25mm variant | |
| NG55 | Brass Plate with Grommets 1xBW20 +1xBW25 variant | |
| NG60 | Brass Plate with Grommets 1x20mm + 2xLM25 Tubes variant | |
| NG61 | Brass Plate 3xLM25 Tubes variant | |
| NG62 | Brass Plate 1x20mm with Grommets + 2xLM32 Tubes variant | |
| NG63 | Brass Plate 1xLM20 Tube + 2xLM32 Tubes variant | |
| NG64 | Brass Plate 1xLM25 Tube + 2xLM32 Tubes variant | |
| NG65 | Brass Plate 3x20mm BW Glands variant | |
| NG66 | Brass Plate with Grommets 2x25mm variant | |
| NG67 | Brass Plate 3xLM20 Tubes variant | |
| NG68 | Brass Plate with Grommets 3x20mm variant | |
| NG81 | Brass Plate 3xBW25 variant | |
| NG82 | Brass Plate with Grommets 1x25mm+2xBW25 variant |
