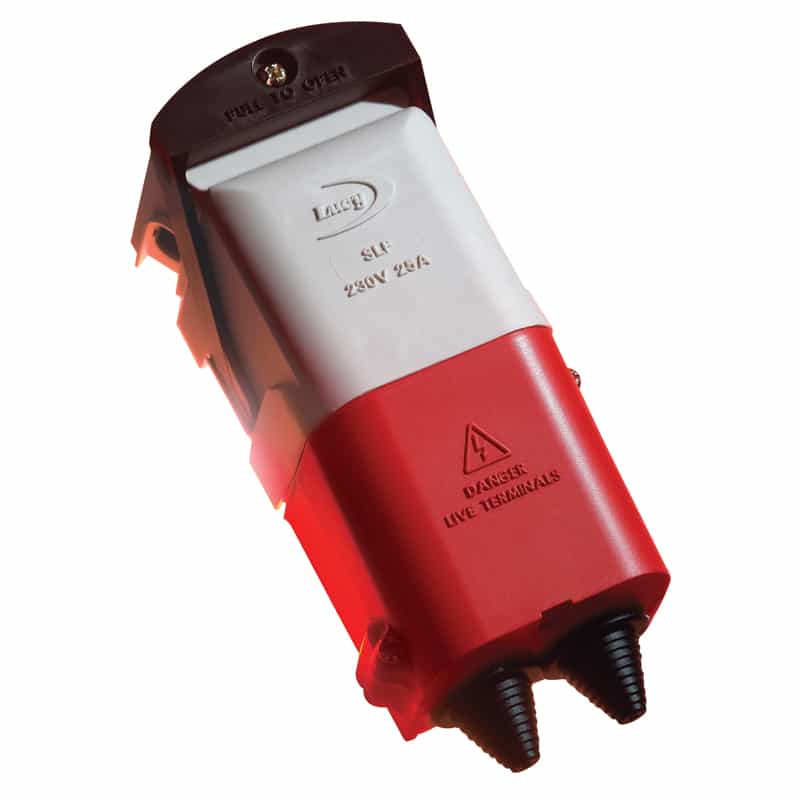

Lucy Zodion MC040SLF Single Phase Cut Out
Designed, tested and manufactured in accordance with BS7654.1997. Two versions, separate neutral and earth (SNE), and combined neutral/earth (CNE) for PME applications. Re-designed cam action ensures low extraction force. Operating cam lever ensures electrical disconnection prior to removal of fuse carrier for extra safety. • Max rating 25amp. • Accepts tag type LST fuses. • Maximum copper cable 16mm2
Data Sheets

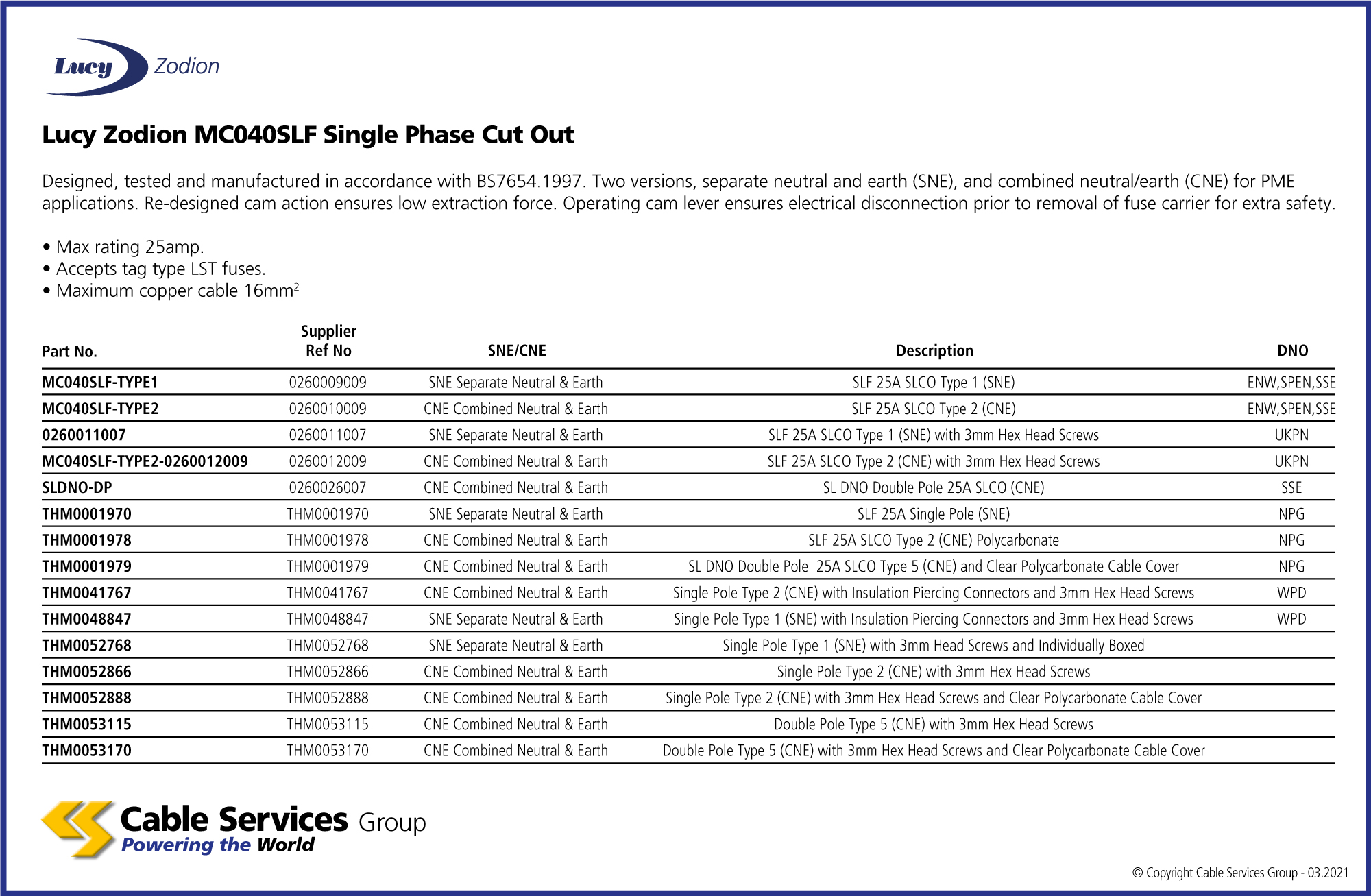

| Reference | Name | |
|---|---|---|
| MC040SLF-TYPE1 | SLF 25A SLCO Type 1 (SNE) variant | |
| MC040SLF-TYPE2 | SLF 25A SLCO Type 2 (CNE) variant | |
| 260011007 | SLF 25A SLCO Type 1 (SNE) with 3mm Hex Head Screws variant | |
| MC040SLF-TYPE2-0260012009 | SLF 25A SLCO Type 2 (CNE) with 3mm Hex Head Screws variant | |
| SLDNO-DP | SL DNO Double Pole 25A SLCO (CNE) variant | |
| THM0001970 | SLF 25A Single Pole (SNE) variant | |
| THM0001978 | SLF 25A SLCO Type 2 (CNE) Polycarbonate variant | |
| THM0001979 | SL DNO Double Pole 25A SLCO Type 5 (CNE) and Clear Polycarbonate Cable Cover variant | |
| THM0041767 | Single Pole Type 2 (CNE) with Insulation Piercing Connectors and 3mm Hex Head Screws variant | |
| THM0048847 | Single Pole Type 1 (SNE) with Insulation Piercing Connectors and 3mm Hex Head Screws variant | |
| THM0052768 | Single Pole Type 1 (SNE) with 3mm Head Screws and Individually Boxed variant | |
| THM0052866 | Single Pole Type 2 (CNE) with 3mm Hex Head Screws variant | |
| THM0052888 | Single Pole Type 2 (CNE) with 3mm Hex Head Screws and Clear Polycarbonate Cable Cover variant | |
| THM0053115 | Double Pole Type 5 (CNE) with 3mm Hex Head Screws variant | |
| THM0053170 | Double Pole Type 5 (CNE) with 3mm Hex Head Screws and Clear Polycarbonate Cable Cover variant |
