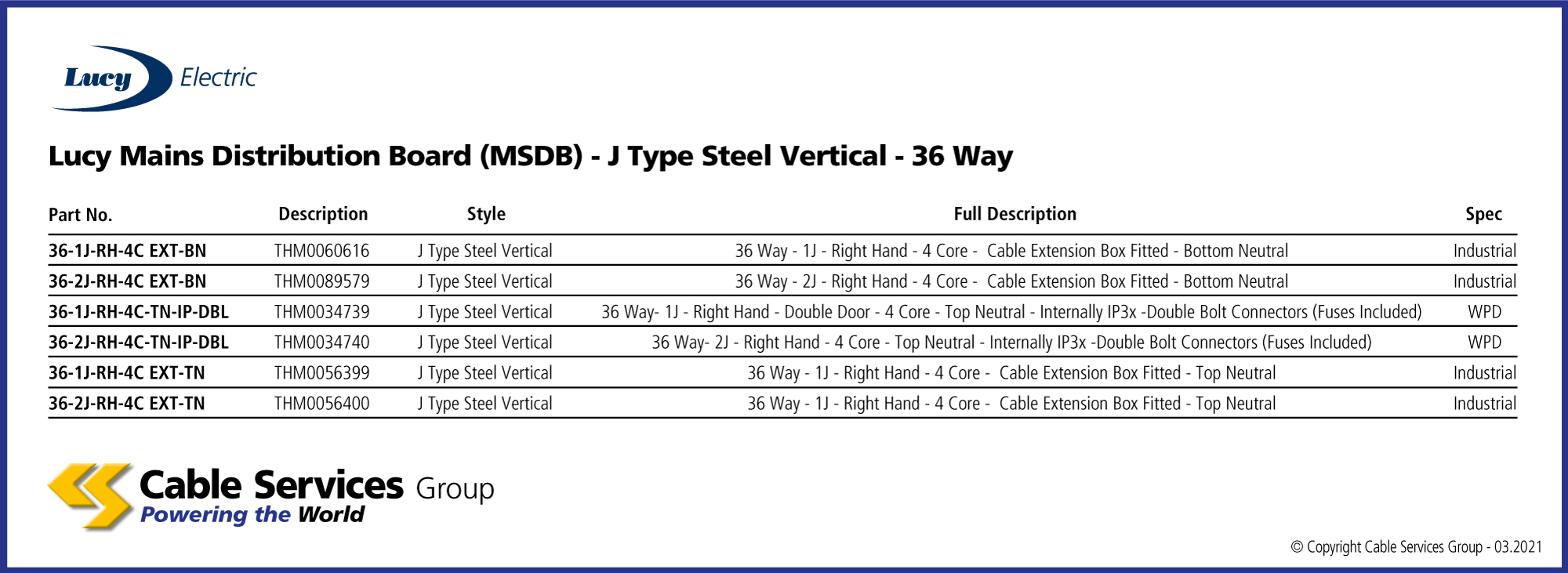

Selection Table

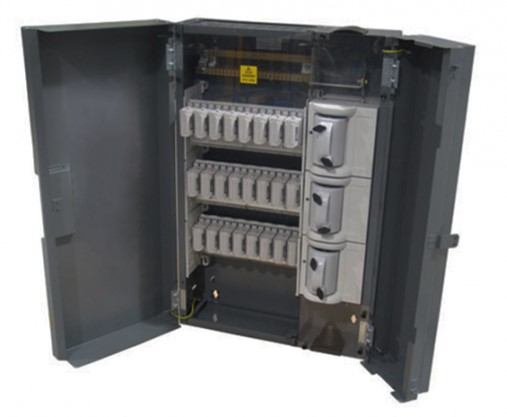

Lucy Mains Distribution Board (MSDB) – J Type Steel Vertical – 36 Way
Packing many class-leading features designed to facilitate the installer’s task, the recently enhanced Lucy Electric vertical multi service distribution boards fully deserve the good reputation that they have created for themselves. Meticulous attention to the shrouding of live parts confers a high level of safety to installers whilst the cabinet depth has been kept to a minimum to ensure that the units can be accommodated in confined service compartments away from the general public
Data Sheets
| Reference | Name | |
|---|---|---|
| 36-1J-RH-4C EXT-BN | 36 Way - 1J - Right Hand - 4 Core - Cable Extension Box Fitted - Bottom Neutral variant, Industrial spec | |
| 36-2J-RH-4C EXT-BN | 36 Way - 2J - Right Hand - 4 Core - Cable Extension Box Fitted - Bottom Neutral variant, Industrial spec | |
| 36-1J-RH-4C-TN-IP-DBL | 36 Way- 1J - Right Hand - Double Door - 4 Core - Top Neutral - Internally IP3x -Double Bolt Connectors (Fuses Included) variant, WPD spec | |
| 36-2J-RH-4C-TN-IP-DBL | 36 Way- 2J - Right Hand - 4 Core - Top Neutral - Internally IP3x -Double Bolt Connectors (Fuses Included) variant, WPD spec | |
| 36-1J-RH-4C EXT-TN | 36 Way - 1J - Right Hand - 4 Core - Cable Extension Box Fitted - Top Neutral variant, Industrial spec | |
| 36-2J-RH-4C EXT-TN | 36 Way - 1J - Right Hand - 4 Core - Cable Extension Box Fitted - Top Neutral variant, Industrial spec |
