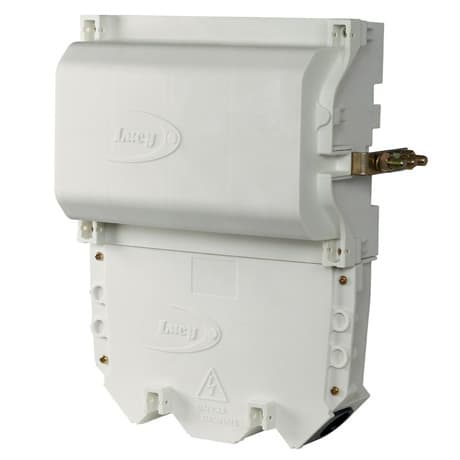

Lucy Heavy Duty Cut outs HDCO 200A, 400A & 600A
Lucy Electric’s all insulated heavy duty cut out is available in 200A, 400A and 630A rating options and is designed for indoor installation. The 200A and 400A units both accept BS88 ‘J’ type fuses with 82mm centres whereas the 630A version accepts 93mm fuses. Conductors up to 300 mm² aluminium or copper can be terminated in the 630A version. All ratings of HDCO can be retro fitted with the Lucy CT metering chamber.
Data Sheets
| Reference | Name | |
|---|---|---|
| 610071009 | 200A Heavy Duty Cutout, UMT185 In/Out 25-150mm Leader Clamps (3 Core) Red Shrouds, 200A Fuse Links variant, UKPN spec | |
| THM0002114 | 200A Heavy Duty Cutout, UET95 In/Out 25-150mm Leader Clamps (4 Core) variant, SSE spec | |
| THM0002367 | 200A Heavy Duty Cutout, Lug In(M12 Bolt) /Out 25-150mm Leader Clamps (3/4 Core) variant, ENWL spec | |
| THM0002371 | 200A Heavy Duty Cutout, UET95 In/Out 25-150mm Leader Clamps (4 Core) Red Shrouds variant, NPG spec | |
| THM0017493 | 200A Heavy Duty Cutout, UET95 In/Out 25-150mm Leader Clamps (4 Core) SPEN Instructions variant, SPEN spec | |
| THM0016539 | 200A Heavy Duty Cutout, UET95 In/Out 25-150mm Leader Clamps (4 Core) VT Conn Kit variant, WPD spec | |
| 620073009 | 400A Heavy Duty Cutout, UMT300 In/Out 70-300mm Leader Clamps (3 Core) Red Shrouds, 400A Fuse Links variant, UKPN spec | |
| THM0002797 | 400A Heavy Duty Cutout, UET185 In/ Lug Out(M12 Bolt) - 4 Core VT Conn Kit variant, SSE spec | |
| THM0002800 | 400A Heavy Duty Cutout, UT4/M300 DB In/ Out Lug (M12 Bolt) - 4 Core VT Conn Kit variant, WPD spec | |
| THM0002769 | 400A Heavy Duty Cutout, Lug In(M12 Bolt)/Lug Out(M12 Bolt) - 3/4 Core variant, SPEN spec | |
| THM0017523 | 400A Heavy Duty Cutout, UET185 In/Out 70-300mm Leader Clamps (4 Core) SPEN Instructions variant, SPEN spec | |
| 630065009 | 600A Heavy Duty Cutout, UMT300 In/Out 70-300mm Leader Clamps (3 Core) Red Shrouds, Fuse Links variant, UKPN spec | |
| THM0002786 | 600A Heavy Duty Cutout, UET300 In/Out(M16 Bolt) - 4 Core c/w Red Shrouds variant, NPG spec | |
| THM0002802 | 600A Heavy Duty Cutout, UT4/M300 DB In/ Out Lug (M16 Bolt) - 4 Core VT Conn Kit variant, WPD spec | |
| THM0017541 | 600A Heavy Duty Cutout, UET300 In/Out 70-300mm Leader Clamps (4 Core) SPEN Instructions variant, SPEN spec | |
| THM0002834 | 600A Heavy Duty Cutout, Lug In(M16 Bolt)/Lug Out(M16 Bolt) - 3/4 Core variant, SPEN spec | |
| THM0005405 | 32mm Gland Plate Kit HDCO variant, Industrial spec | |
| THM0005288 | 40mm Gland Plate Kit HDCO variant, Industrial spec | |
| THM0005286 | 50mm Gland Plate Kit HDCO variant, Industrial spec | |
| THM0005281 | 63mm Gland Plate Kit HDCO variant, Industrial spec | |
| THM0005293 | 75mm Gland Plate Kit HDCO variant, Industrial spec |
