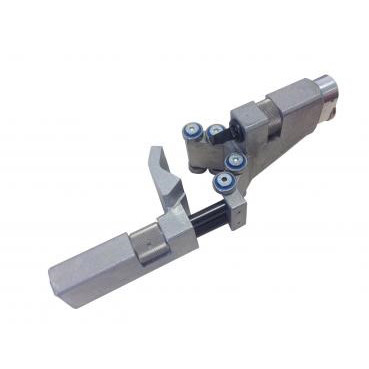

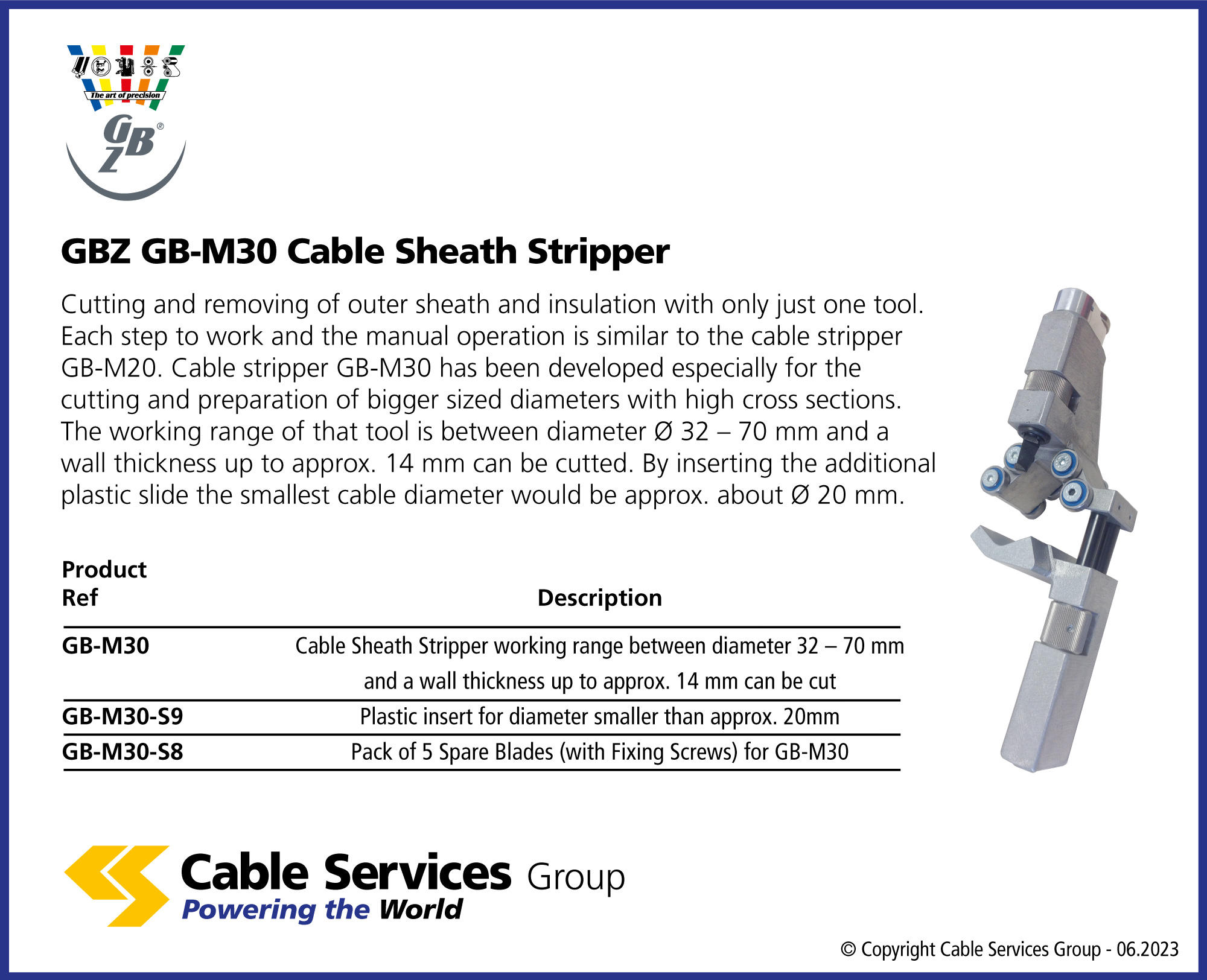

GBZ GB-M30 Cable Sheath Stripper
Cutting and removing of outer sheath and insulation with only just one tool. Each step to work and the manual operation is similar to the cable stripper GB-M20. Cable stripper GB-M30 has been developed especially for the cutting and preparation of bigger sized diameters with high cross sections. The working range of that tool is between diameter Ø 32 – 70 mm and a wall thickness up to approx. 14 mm can be cutted. By inserting the additional plastic slide the smallest cable diameter would be approx.. about Ø 20 mm.
Data Sheets
| Reference | Name | |
|---|---|---|
| GB-M30 | Cable Sheath Stripper working range between diameter 32 – 70 mm and a wall thickness up to approx. 14 mm can be cut size | |
| GB-M30-S9 | Plastic insert for diameter smaller than approx. 20mm size | |
| GB-M30-S8 | Pack of 5 Spare Blades (with Fixing Screws) for GB-M30 size |
