Selection Table

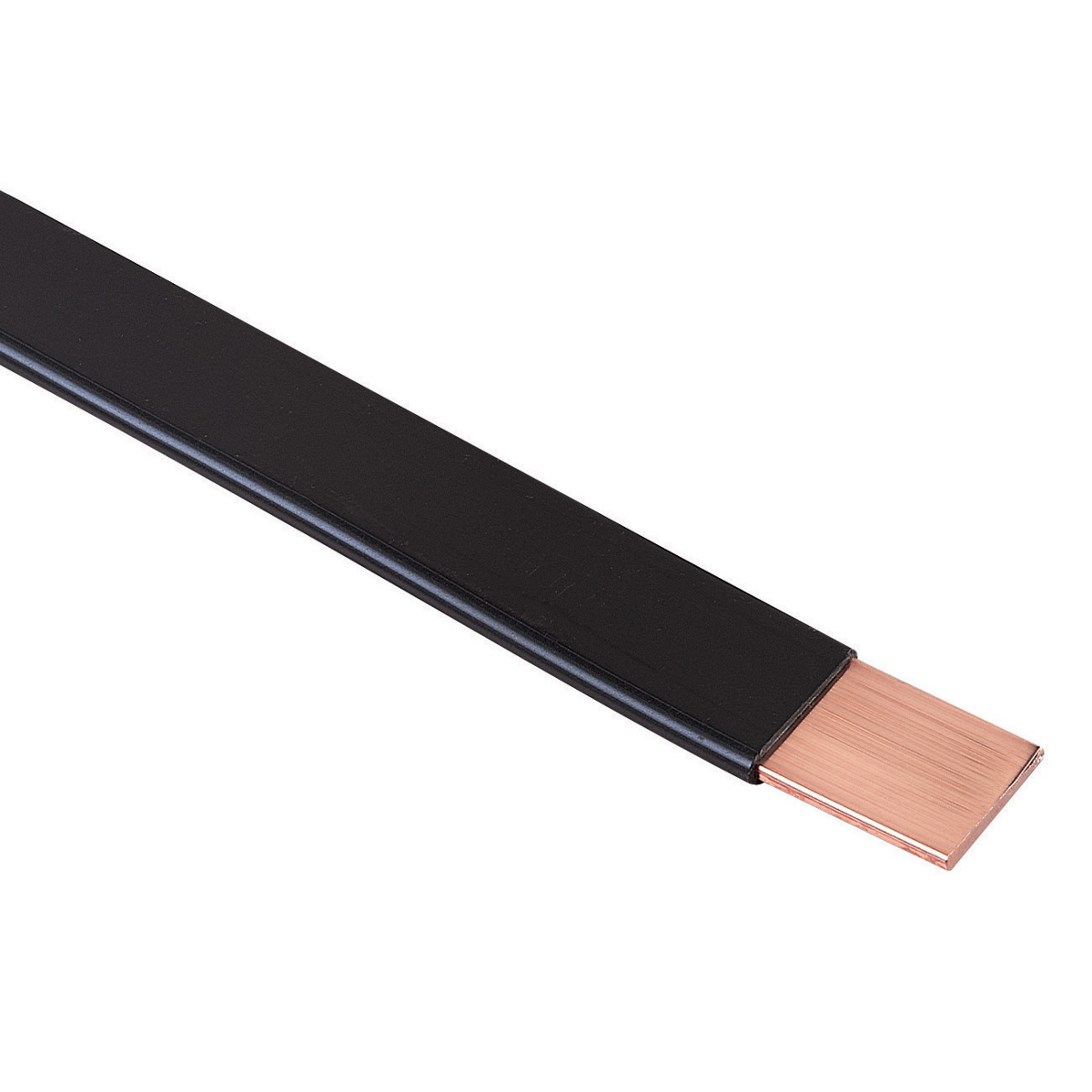

Furse PVC Covered Copper Tape
Copper is used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete. Furse PVC covered copper tape is available in a range of sizes and colours to meet differing current ratings.

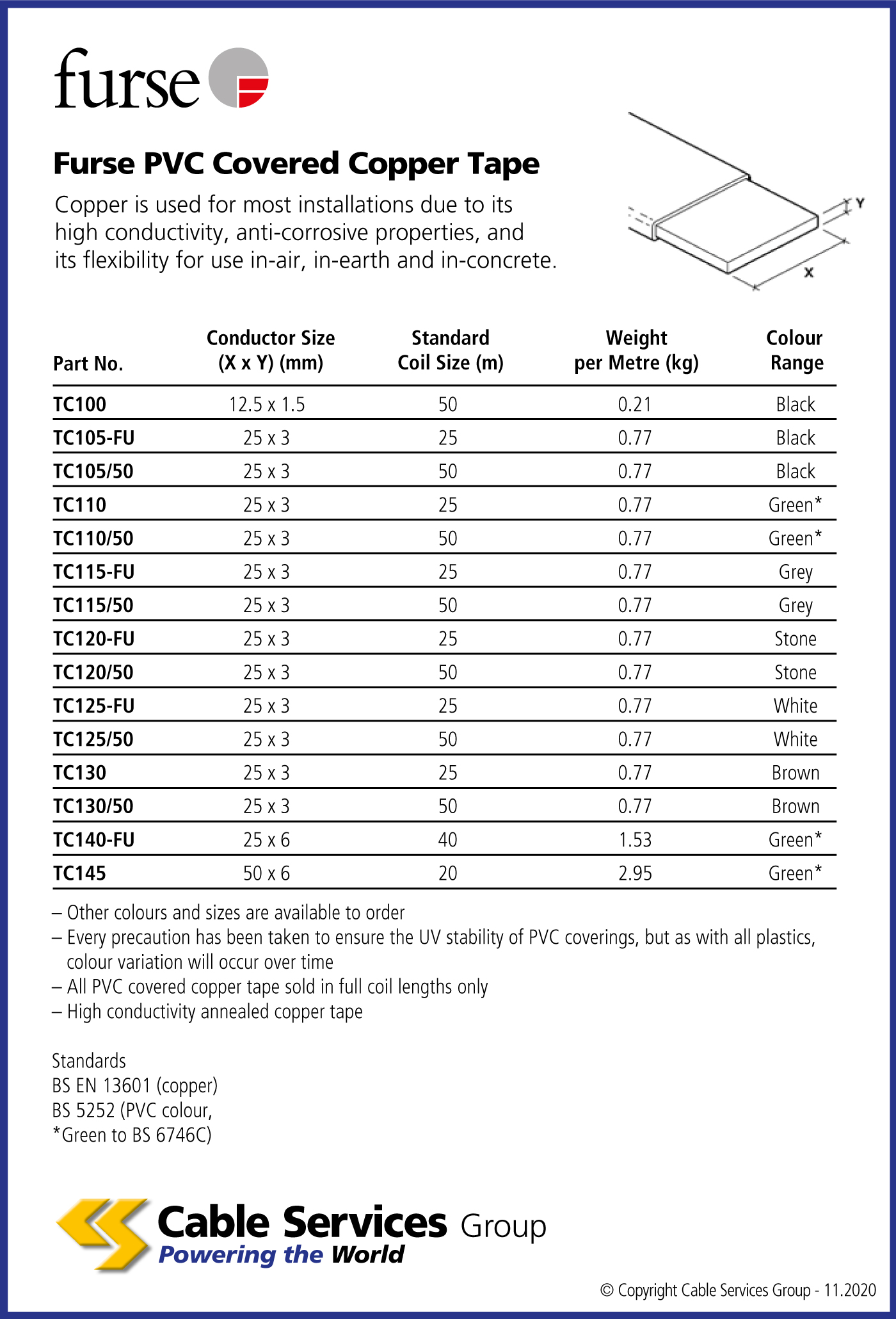

Data Sheets
| Reference | Name | |
|---|---|---|
| TC100 | 12.5 x 1.5mm size, 50coil size (m)Black fixing type | |
| TC105-FU | 25 x 3mm size, 25coil size (m)Black fixing type | |
| TC105/50 | 25 x 3mm size, 50coil size (m)Black fixing type | |
| TC110 | 25 x 3mm size, 25coil size (m)Green fixing type | |
| TC110/50 | 25 x 3mm size, 50coil size (m)Green fixing type | |
| TC115-FU | 25 x 3mm size, 25coil size (m)Grey fixing type | |
| TC115/50 | 25 x 3mm size, 50coil size (m)Grey fixing type | |
| TC120-FU | 25 x 3mm size, 25coil size (m)Stone fixing type | |
| TC120/50 | 25 x 3mm size, 50coil size (m)Stone fixing type | |
| TC125-FU | 25 x 3mm size, 25coil size (m)White fixing type | |
| TC125/50 | 25 x 3mm size, 50coil size (m)White fixing type | |
| TC130 | 25 x 3mm size, 25coil size (m)Brown fixing type | |
| TC130/50 | 25 x 3mm size, 50coil size (m)Brown fixing type | |
| TC140-FU | 25 x 6mm size, 40coil size (m)Green fixing type | |
| TC145 | 50 x 6mm size, 20coil size (m)Green fixing type |
