Selection Table

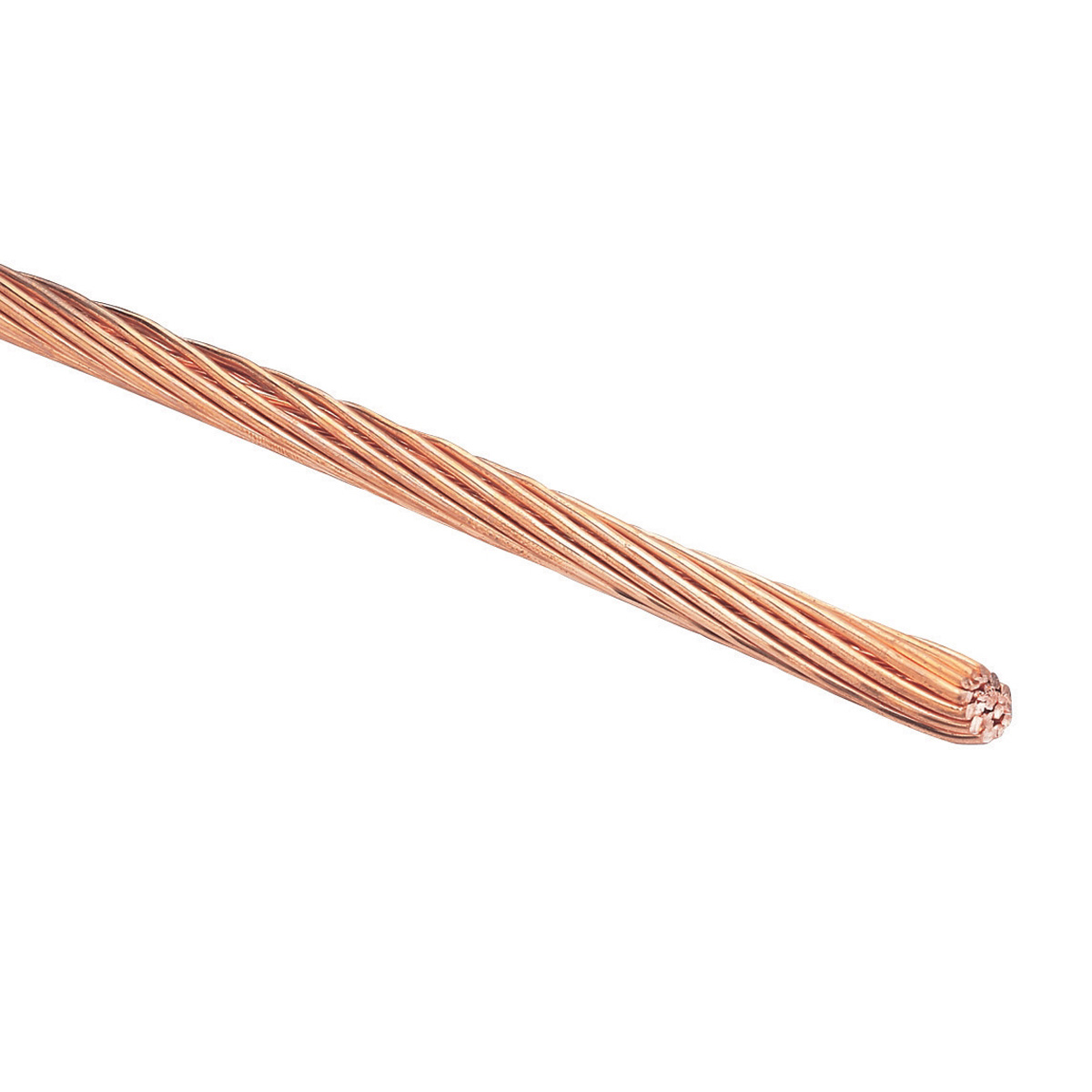

Furse Bare Stranded Copper Cable
Copper conductors are used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete. urse bare stranded copper cable is available in a range of sizes to meet differing current ratings. Additional sizes are also available on request. Highly conductive soft or hard drawn stranded copper cable. Tinned soft drawn stranded copper cable available on request.

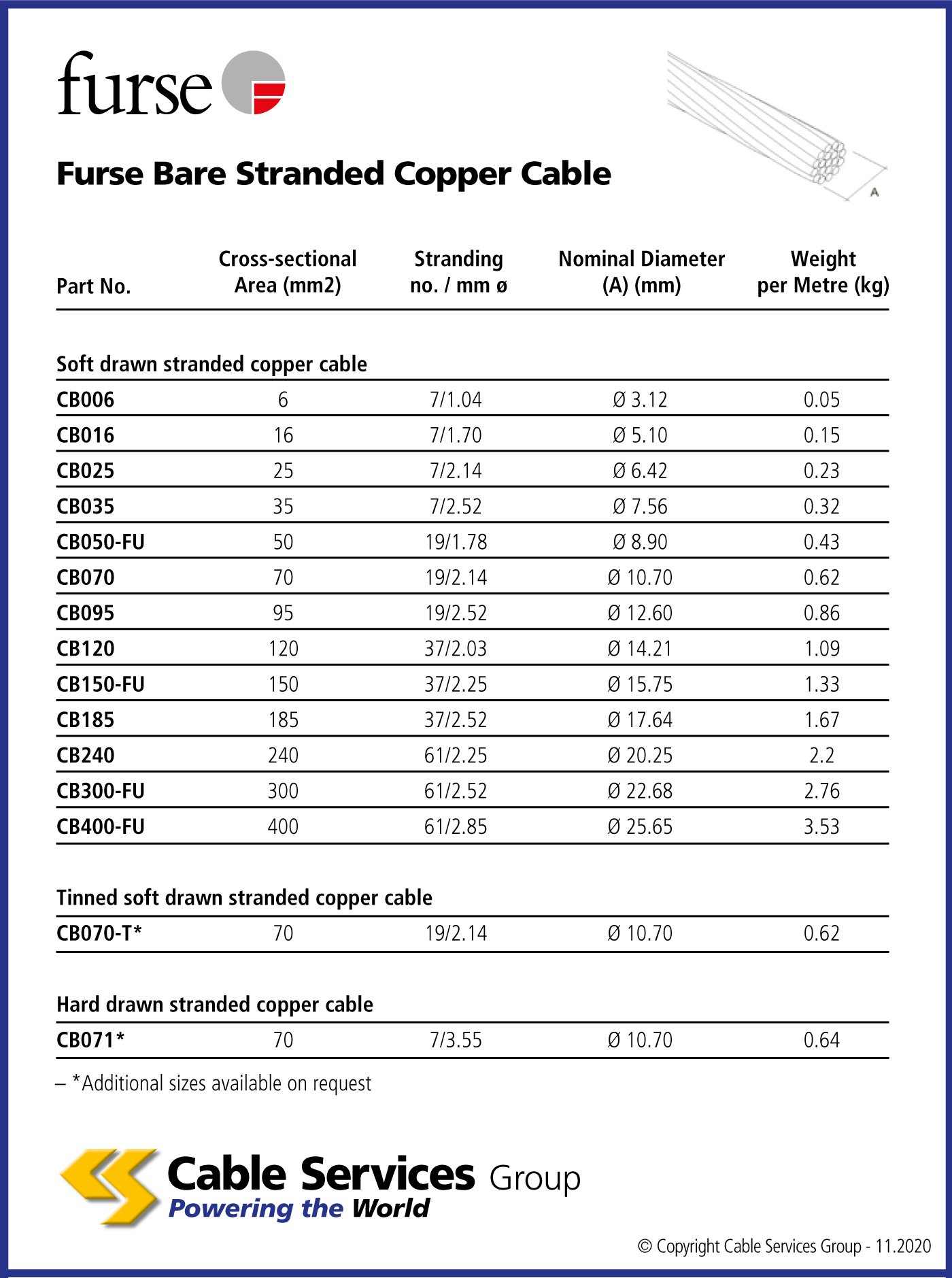

Data Sheets
| Reference | Name | |
|---|---|---|
| CB006 | 6mm2 size, Soft drawn stranded copper fixing type | |
| CB016 | 16mm2 size, Soft drawn stranded copper fixing type | |
| CB025 | 25mm2 size, Soft drawn stranded copper fixing type | |
| CB035 | 35mm2 size, Soft drawn stranded copper fixing type | |
| CB050-FU | 50mm2 size, Soft drawn stranded copper fixing type | |
| CB070 | 70mm2 size, Soft drawn stranded copper fixing type | |
| CB095 | 95mm2 size, Soft drawn stranded copper fixing type | |
| CB120 | 120mm2 size, Soft drawn stranded copper fixing type | |
| CB150-FU | 150mm2 size, Soft drawn stranded copper fixing type | |
| CB185 | 185mm2 size, Soft drawn stranded copper fixing type | |
| CB240 | 240mm2 size, Soft drawn stranded copper fixing type | |
| CB300-FU | 300mm2 size, Soft drawn stranded copper fixing type | |
| CB400-FU | 400mm2 size, Soft drawn stranded copper fixing type | |
| CB070-T | 70mm2 size, Tinned soft drawn stranded copper cable fixing type | |
| CB071 | 70mm2 size, Hard drawn stranded copper cable fixing type |
