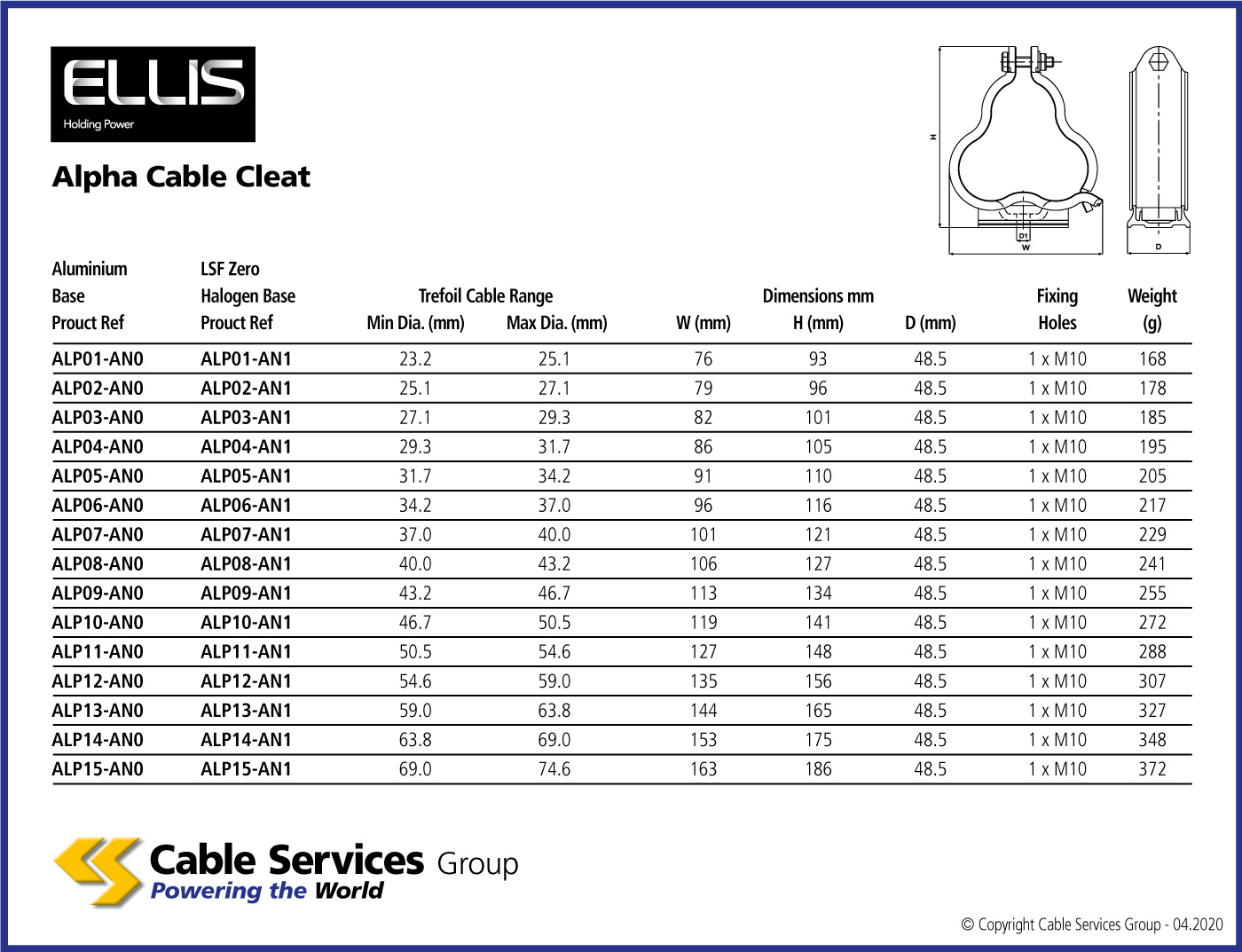

Selection Table

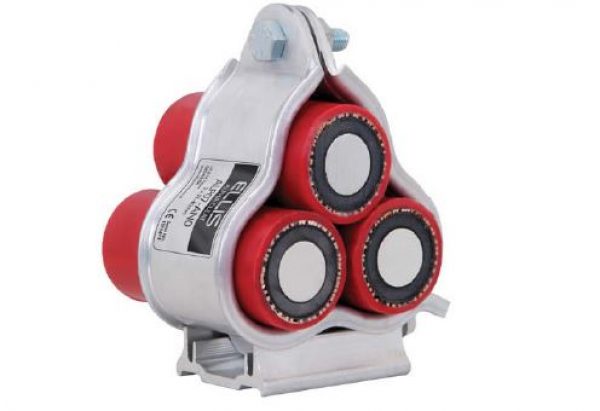

Ellis Patents Alpha ™ Aluminium Trefoil Cleats (Aluminium LSF Zero Halogen Base)
Light Duty Compact Aluminum Cable Cleat, for cables in trefoil formation.
Data Sheets
| Reference | Name | |
|---|---|---|
| ALP01-AN1 | 23.2 - 25.1mm cable sizing | |
| ALP02-AN1 | 25.1 - 27.1mm cable sizing | |
| ALP03-AN1 | 27.1 - 29.3mm cable sizing | |
| ALP04-AN1 | 29.3 - 31.7mm cable sizing | |
| ALP05-AN1 | 31.7 - 34.2mm cable sizing | |
| ALP06-AN1 | 34.2 - 37mm cable sizing | |
| ALP07-AN1 | 37 - 40mm cable sizing | |
| ALP08-AN1 | 40 - 43.2mm cable sizing | |
| ALP09-AN1 | 43.2 - 46.7mm cable sizing | |
| ALP10-AN1 | 46.7 - 50.5mm cable sizing | |
| ALP11-AN1 | 50.5 - 54.6mm cable sizing | |
| ALP12-AN1 | 54.6 - 59mm cable sizing | |
| ALP13-AN1 | 59 - 63.8mm cable sizing | |
| ALP14-AN1 | 63.8 - 69mm cable sizing | |
| ALP15-AN1 | 69 - 74.6mm cable sizing |
