Cembre Ring Tongue Terminals with Contained (Narrow) Palm

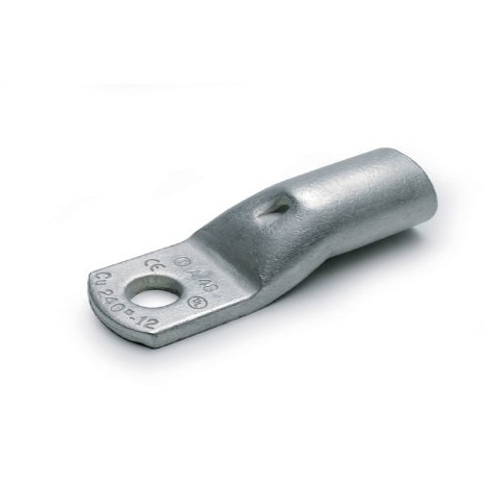

This range of terminals features contained palm width and has been specifically developed for application on L.V. circuit breakers with reduced space terminal blocks. The contained palm width allows an immediate and easier installation. Cembre terminals are manufactured from electrolytic copper tube. The specifically designed section of the barrel and the choice of principal dimensions are optimising the best combination of mechanical strength and electrical conductivity. These terminals are annealed to guarantee optimum ductility and are electrolytically tin-plated to avoid oxidation. The barrel is provided with an internal taper to ease the introduction of the conductor; furthermore, its length grants a comfortable and correct positioning between dies, during crimping operations. Each palm is marked with the Cembre logo and part number. Manufactured from electrolytic copper tube Cu-OF CW008A conform to UNI EN 13600
Data sheets

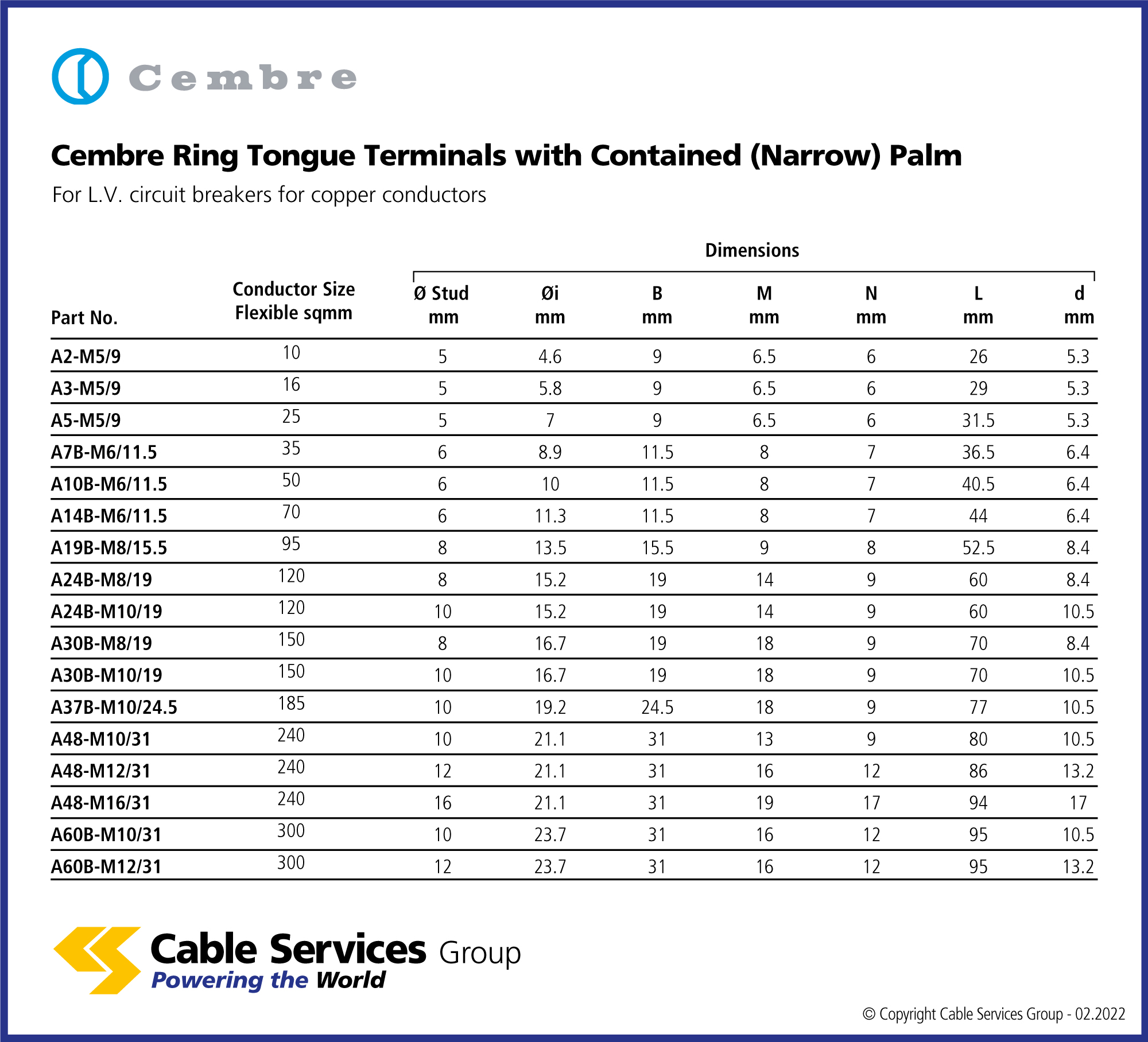

| Reference | Name | |
|---|---|---|
| A2-M5/9 | 10mm2 conductor conductor size, 5mm2 stud size fixing size | |
| A3-M5/9 | 16mm2 conductor conductor size, 5mm2 stud size fixing size | |
| A5-M5/9 | 25mm2 conductor conductor size, 5mm2 stud size fixing size | |
| A7B-M6/11.5 | 35mm2 conductor conductor size, 6mm2 stud size fixing size | |
| A10B-M6/11.5 | 50mm2 conductor conductor size, 6mm2 stud size fixing size | |
| A14B-M6/11.5 | 70mm2 conductor conductor size, 6mm2 stud size fixing size | |
| A19B-M8/15.5 | 95mm2 conductor conductor size, 8mm2 stud size fixing size | |
| A24B-M8/19 | 120mm2 conductor conductor size, 8mm2 stud size fixing size | |
| A24B-M10/19 | 120mm2 conductor conductor size, 10mm2 stud size fixing size | |
| A30B-M8/19 | 150mm2 conductor conductor size, 8mm2 stud size fixing size | |
| A30B-M10/19 | 150mm2 conductor conductor size, 10mm2 stud size fixing size | |
| A37B-M10/24.5 | 185mm2 conductor conductor size, 10mm2 stud size fixing size | |
| A48-M10/31 | 240mm2 conductor conductor size, 10mm2 stud size fixing size | |
| A48-M12/31 | 240mm2 conductor conductor size, 12mm2 stud size fixing size | |
| A48-M16/31 | 240mm2 conductor conductor size, 16mm2 stud size fixing size | |
| A60B-M10/31 | 300mm2 conductor conductor size, 10mm2 stud size fixing size | |
| A60B-M12/31 | 300mm2 conductor conductor size, 12mm2 stud size fixing size |
