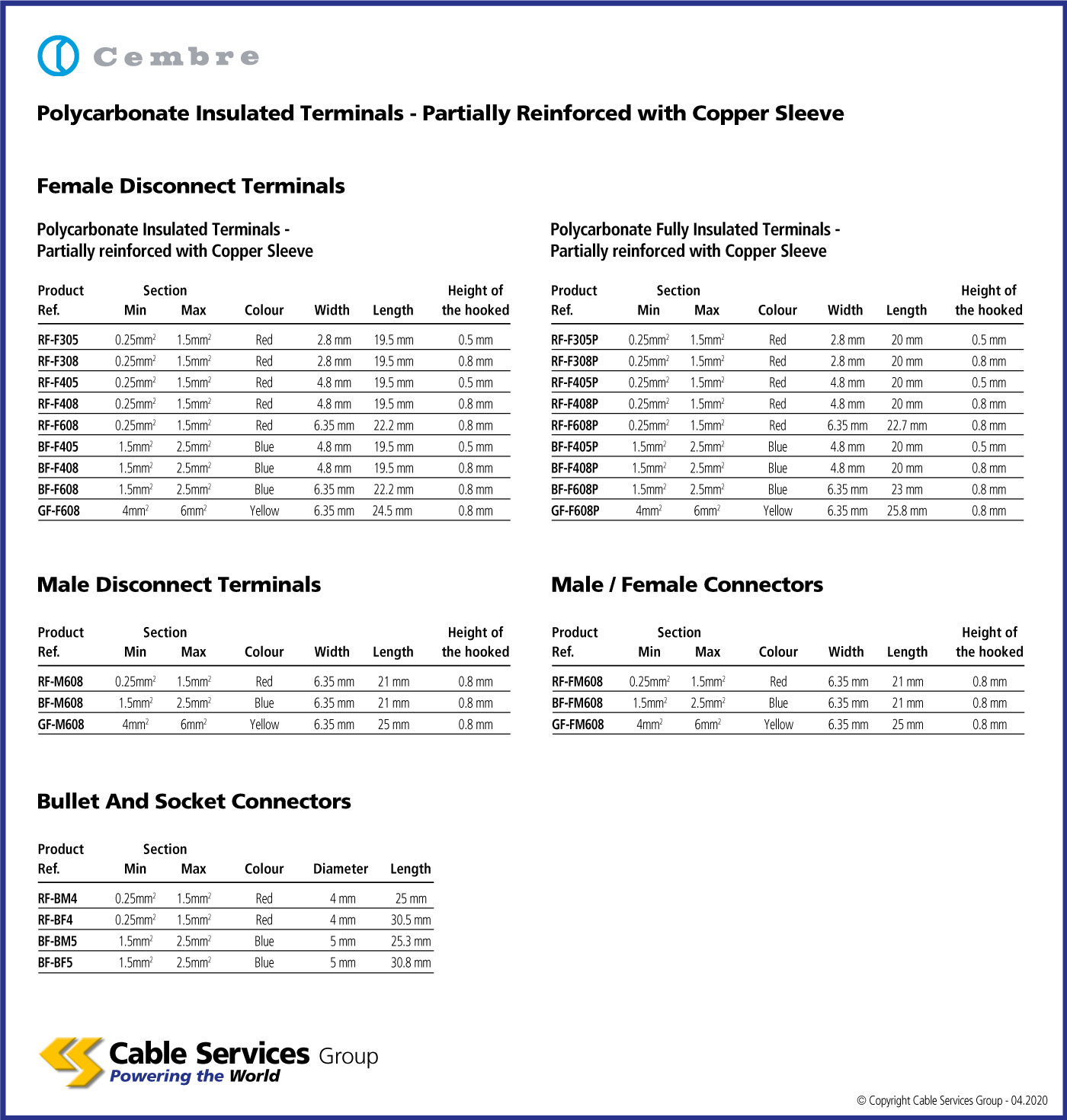

Selection Table

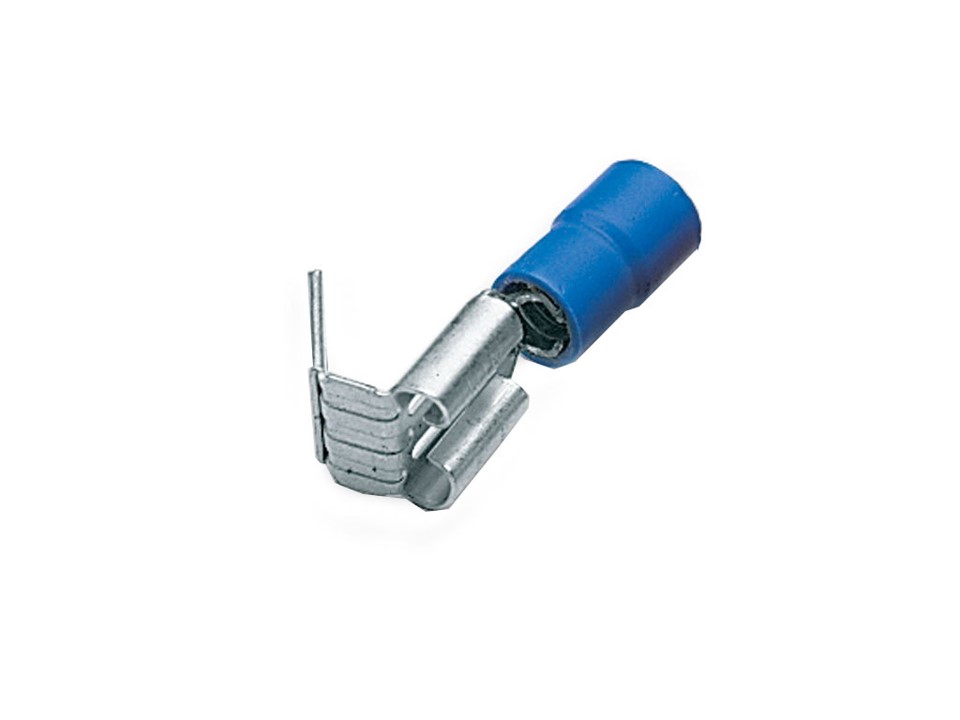

Cembre PVC Insulated Male / Female Connectors
The PC insulated disconnect terminals has been designed, to meet the increasing demands for improved safety and reliability of electrical connectors. The polycarbonated insulation, is a halogen free, self extingushing thermoplastic material class V0 (UL 94). The unique funnel shaped entry of the insulation sleeve, guarantees total insertion of conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
Data Sheets
| Reference | Name | |
|---|---|---|
| RF-FM608 | 0.25 - 1.5mm2 conductor conductor size | |
| BF-FM608 | 1.25 - 2.5mm2 conductor conductor size | |
| GF-FM608 | 4 - 6mm2 conductor conductor size |
