Selection Table

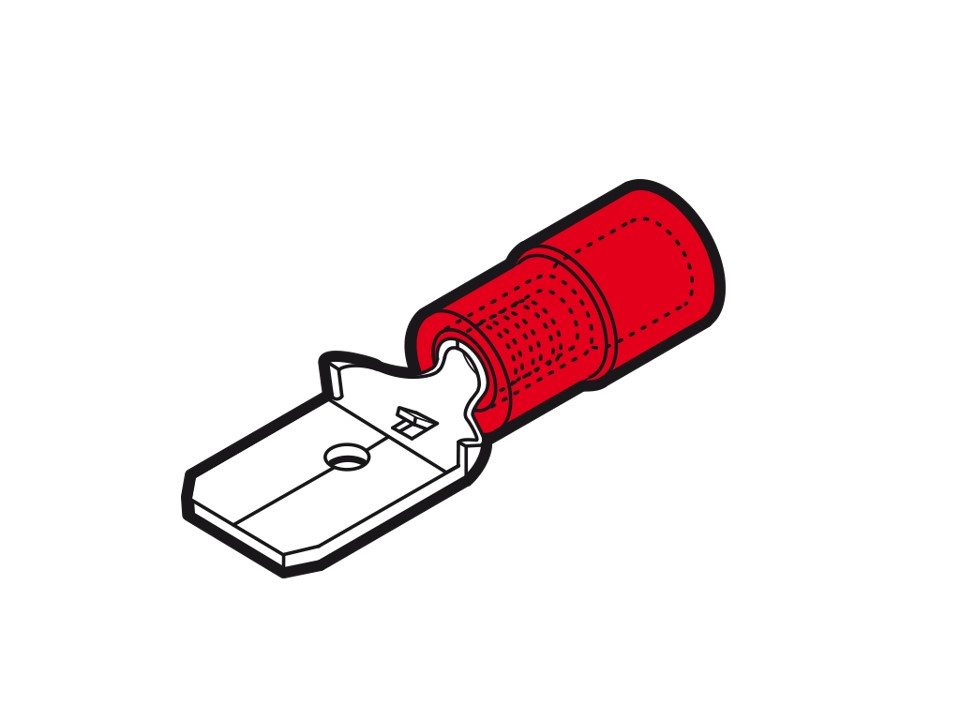

Cembre PVC Insulated Male Disconnect Terminals
The PC insulated disconnect terminals has been designed, to meet the increasing demands for improved safety and reliability of electrical connectors. The polycarbonated insulation, is a halogen free, self extingushing thermoplastic material class V0 (UL 94). The unique funnel shaped entry of the insulation sleeve, guarantees total insertion of conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
Data Sheets
| Reference | Name | |
|---|---|---|
| RF-M608 | 0.25 - 1.5mm2 conductor conductor size | |
| BF-M608 | 1.25 - 2.5mm2 conductor conductor size | |
| GF-M608 | 4 - 6mm2 conductor conductor size |
