Blade Terminal

Cembre PVC Insulated Blade Terminal

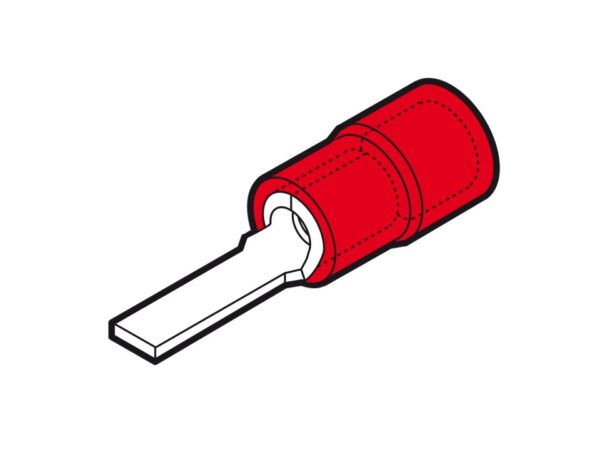

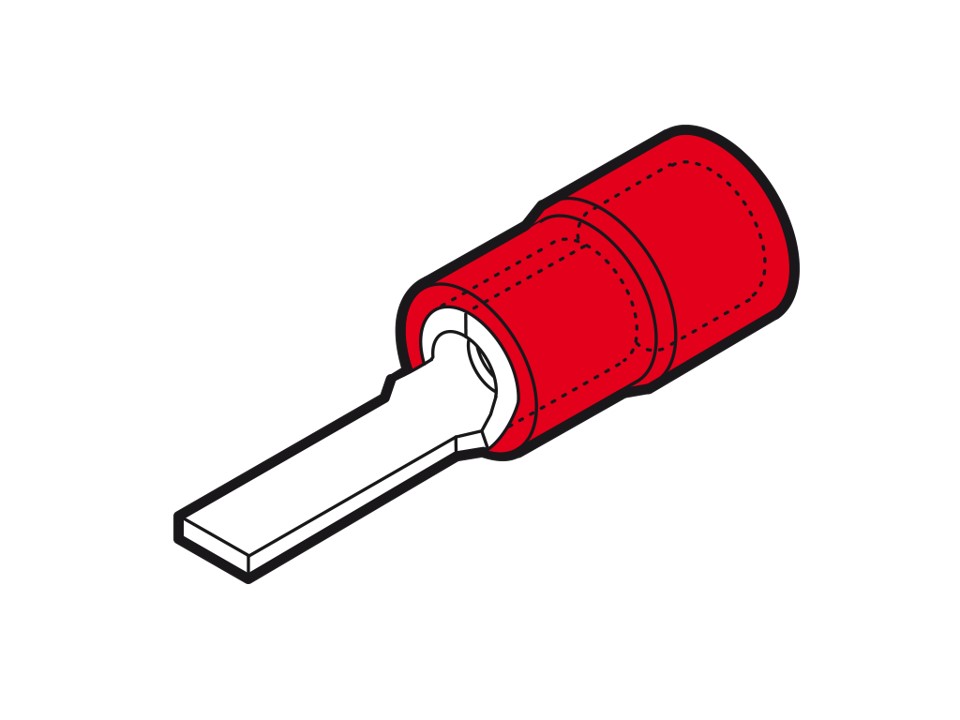

This blade terminal features a unique funnel shaped PVC sleeve that guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection. The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.

Category:

Description

Cembre Blade Terminals are designed to create secure, reliable, and robust connections for various electrical applications. The unique funnel-shaped PVC sleeve ensures that conductor strands are completely inserted into the terminal barrel, providing a strong mechanical and electrical connection. This design reduces the risk of loose connections and enhances safety during electrical work.

Key Features

  • Funnel-Shaped PVC Sleeve
    This innovative design ensures the total insertion of conductor strands into the terminal barrel, reducing the risk of incomplete connections. The internal surface of the barrel is rifled to improve contact with conductor strands and increase tensile strength.
  • Wide Operating Temperature Range
    These terminals operate in temperatures from -20°C to 80°C, with a surge capacity of up to 90°C, making them suitable for a range of industrial environments.
  • High-Quality Materials
    The terminal body is made from electrolytic copper for superior conductivity, and the partially reinforced PVC provides durability and flame resistance (UL94 Class VO). This ensures that Cembre Blade Terminals can withstand harsh conditions while maintaining a reliable connection.

Technical Characteristics

  • Easy Cable Entry: The funnel-shaped design facilitates quick and accurate cable insertion.
  • Flammability Rating: UL94 Class VO for enhanced safety.
  • Storage Temperature: The terminals can be stored at a minimum temperature of -40°C without compromising quality.
  • Compatible Crimping Tools: Recommended crimping tools are available from Thorne & Derrick to ensure optimal crimping results.

Applications and Versatility

Cembre Blade Terminals are ideal for a wide range of applications.

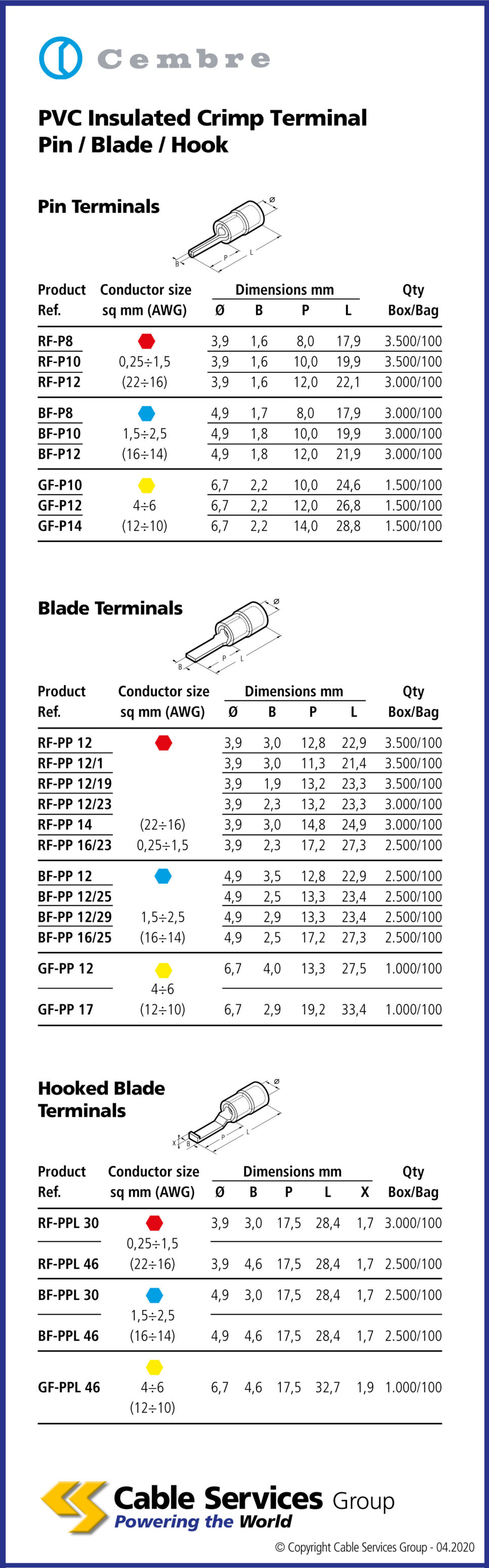

Selection Table

Data Sheets

Download Data Sheet

Reference Name
RF-PP12 0.25 - 1.5mm2 conductor conductor size, 3 / 12.8 mm fixing size
RF-PP12/1 0.25 - 1.5mm2 conductor conductor size, 3 / 11.3mm fixing size
RF-PP12/19 0.25 - 1.5mm2 conductor conductor size, 1.9 / 13.2mm fixing size
RF-PP12/23 0.25 - 1.5mm2 conductor conductor size, 2.3 / 13.2mm fixing size
RF-PP14 0.25 - 1.5mm2 conductor conductor size, 3 / 14.8mm fixing size
RF-PP16/23 0.25 - 1.5mm2 conductor conductor size, 2.3 / 17.2mm fixing size
BF-PP12 1.5 - 2.5mm2 conductor conductor size, 3.5 / 12.8mm fixing size
BF-PP12/25 1.5 - 2.5mm2 conductor conductor size, 2.5 / 13.3mm fixing size
BF-PP12/29 1.5 - 2.5mm2 conductor conductor size, 2.9 / 13.3mm fixing size
BF-PP16/25 1.5 - 2.5mm2 conductor conductor size, 2.5 / 17.2mm fixing size
GF-PP12 4 - 6mm2 conductor conductor size, 4 / 13.3mm fixing size
GF-PP17 4 - 6mm2 conductor conductor size, 2.9 / 19.2mm fixing size
