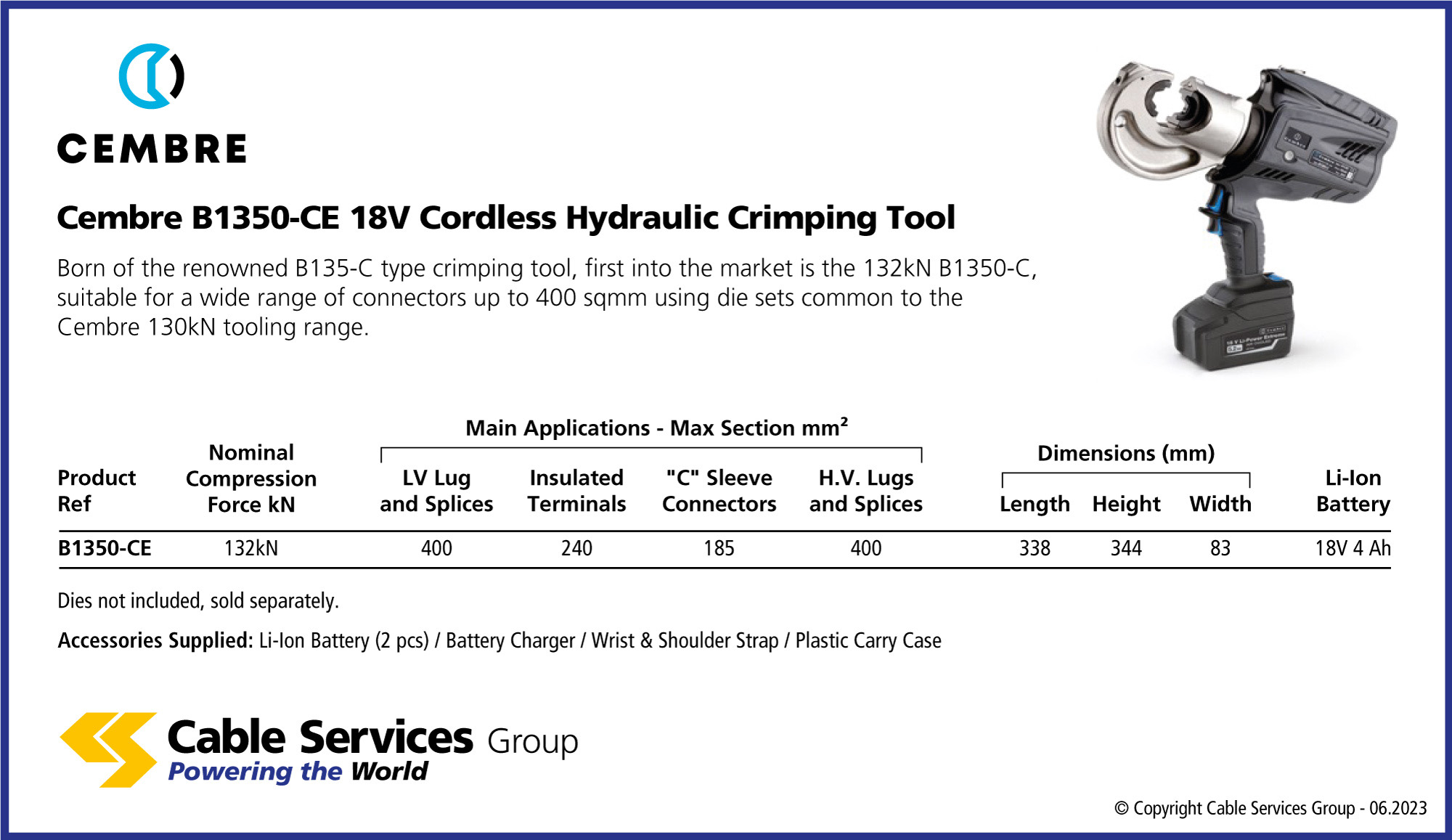

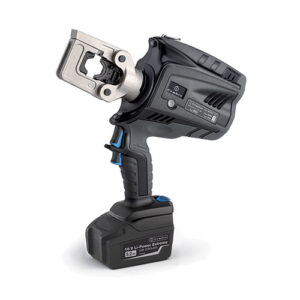

Cembre B1350-C 18V Cordless Hydraulic Crimping Tool
The Cembre B1350-C is a robust, battery-powered hydraulic crimping tool designed for high-performance crimping up to 400 sq mm using semi-circular slotted dies from the Cembre 130 kN tooling range. Delivering a powerful crimping force of 132 kN, it features a dual-speed hydraulic system—rapid for die positioning and slow for controlled, high-pressure crimping.
Engineered for precision and reliability, the tool integrates an EPS (Electronic Pressure Sensor) system with a maximum pressure valve to ensure consistent, repeatable crimps while enhancing operator safety. Its OLED display provides real-time feedback on crimping force, battery level, cycle counts, and maintenance alerts.
Weighing just 6.6 kg and compact in design (349x321x83 mm), the B1350-C is ergonomically sculpted for comfortable use, with low noise and vibration levels. LED lighting, rubber grips, and a rotatable head (180°) increase usability, especially in confined spaces. Data logging is built-in, storing up to 200,000 crimping events transferable via USB.
Operating on an 18V battery-powered electric motor, the tool is supplied in a durable plastic case with two batteries, a charger, a shoulder strap, and space for 8 die sets—ideal for mobile or on-site professionals.
Key Features:
- 132 kN crimping force
- 18V electric motor (battery-powered)
- Compatible with U-dies (130 kN range)
- Dual-speed hydraulic action
- EPS with OLED display and cycle logging
- Rotating 180° head
- Manual depressurising system
- Operating temp: -15°C to +50°C
- Ultra-quiet, minimal vibration
- Supplied with battery kit and rugged case
This tool offers unmatched control, performance, and mobility for demanding electrical crimping applications.
| Technical Information | |
|---|---|
| Nominal crimping force | 132 kN |
| Range of operating temperature | -15°C to +50°C |
| Supply voltage | 18 V |
| Pressure control system | EPS (electronic pressure sensor) |
| Mains power connection | Type G |
| Depressurising | Manual |
| Head shape | C |
| Power supply | Electrical motor (battery) |
| Display | Yes (OLED) |
| Weight and Dimensions | |
|---|---|
| Net weight in operation | 6.6 kg |
| Dimensions | 349 x 321 x 83 mm |
