Selection Table

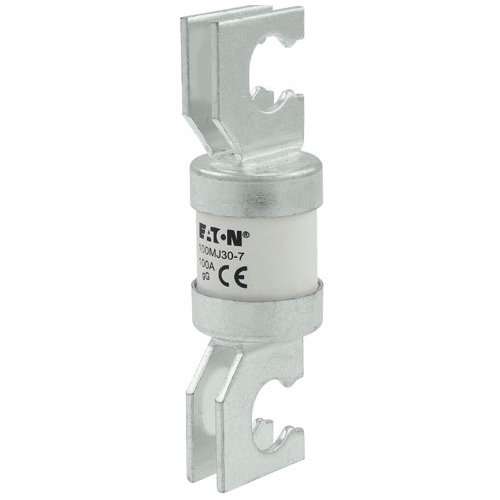

Bussmann J Type Fuse Links
J Type Fuse Links for low Voltage Feeder Piller Protection – Fuse Links to BS88: Part 5 ‘J’ Type

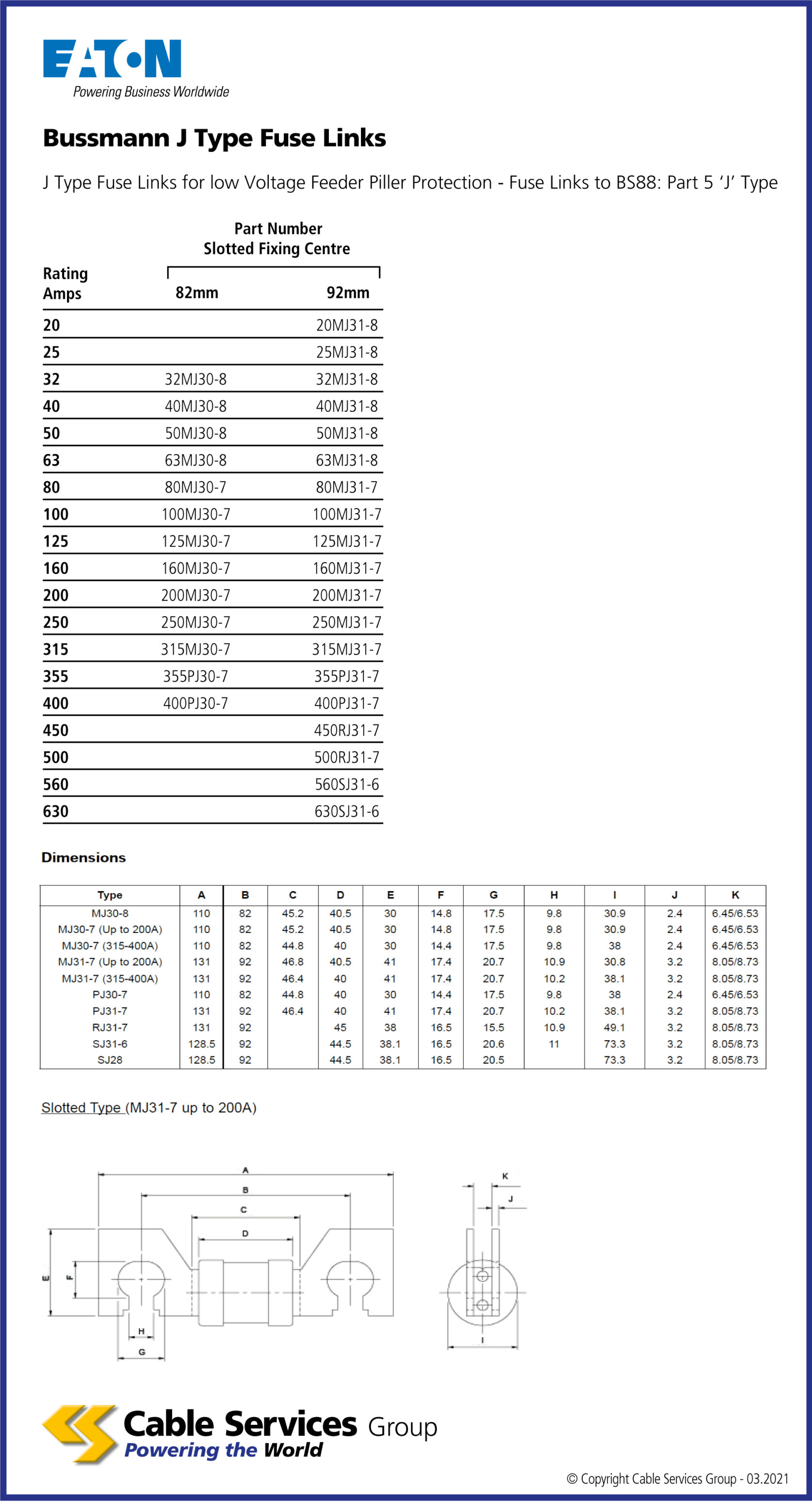

Data Sheets
| Reference | Name | |
|---|---|---|
| 32MJ30-8 | 82mm fixing centre, 32amps rating | |
| 40MJ30-8 | 82mm fixing centre, 40amps rating | |
| 50MJ30-8 | 82mm fixing centre, 50amps rating | |
| 63MJ30-8 | 82mm fixing centre, 63amps rating | |
| 80MJ30-7 | 82mm fixing centre, 80amps rating | |
| 100MJ30-7 | 82mm fixing centre, 100amps rating | |
| 125MJ30-7 | 82mm fixing centre, 125amps rating | |
| 160MJ30-7 | 82mm fixing centre, 160amps rating | |
| 200MJ30-7 | 82mm fixing centre, 200amps rating | |
| 250MJ30-7 | 82mm fixing centre, 250amps rating | |
| 315MJ30-7 | 82mm fixing centre, 315amps rating | |
| 355PJ30-7 | 82mm fixing centre, 355amps rating | |
| 400PJ30-7 | 82mm fixing centre, 400amps rating | |
| 20MJ31-8 | 92mm fixing centre, 20amps rating | |
| 25MJ31-8 | 92mm fixing centre, 25amps rating | |
| 32MJ31-8 | 92mm fixing centre, 32amps rating | |
| 40MJ31-8 | 92mm fixing centre, 40amps rating | |
| 50MJ31-8 | 92mm fixing centre, 50amps rating | |
| 63MJ31-8 | 92mm fixing centre, 63amps rating | |
| 80MJ31-7 | 92mm fixing centre, 80amps rating | |
| 100MJ31-7 | 92mm fixing centre, 100amps rating | |
| 125MJ31-7 | 92mm fixing centre, 125amps rating | |
| 160MJ31-7 | 92mm fixing centre, 160amps rating | |
| 200MJ31-7 | 92mm fixing centre, 200amps rating | |
| 250MJ31-7 | 92mm fixing centre, 250amps rating | |
| 315MJ31-7 | 92mm fixing centre, 315amps rating | |
| 355PJ31-7 | 92mm fixing centre, 355amps rating | |
| 400PJ31-7 | 92mm fixing centre, 400amps rating | |
| 450RJ31-7 | 92mm fixing centre, 450amps rating | |
| 500RJ31-7 | 92mm fixing centre, 500amps rating | |
| 560SJ31-6 | 92mm fixing centre, 560amps rating | |
| 630SJ31-6 | 92mm fixing centre, 630amps rating |
