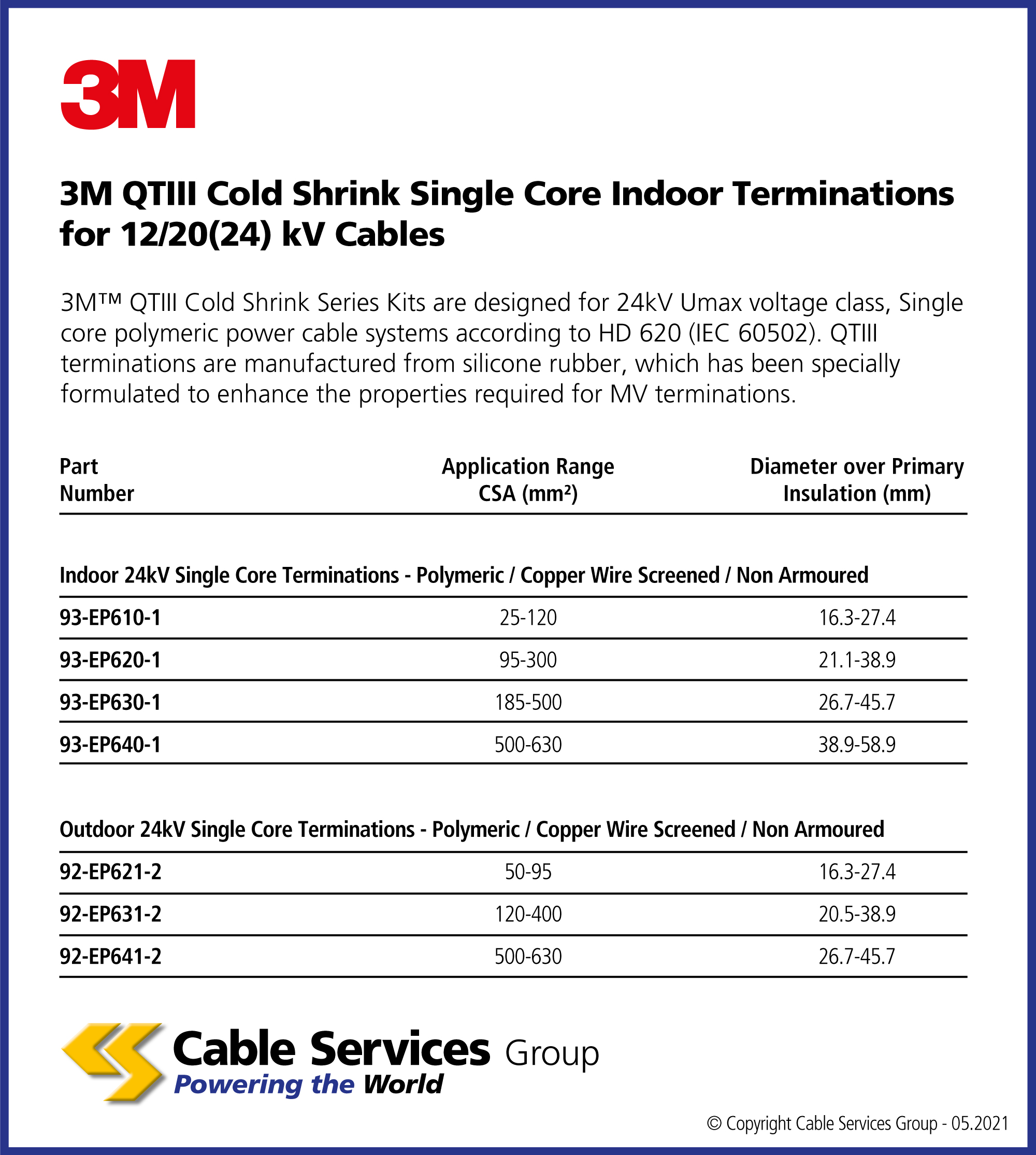

Selection Table

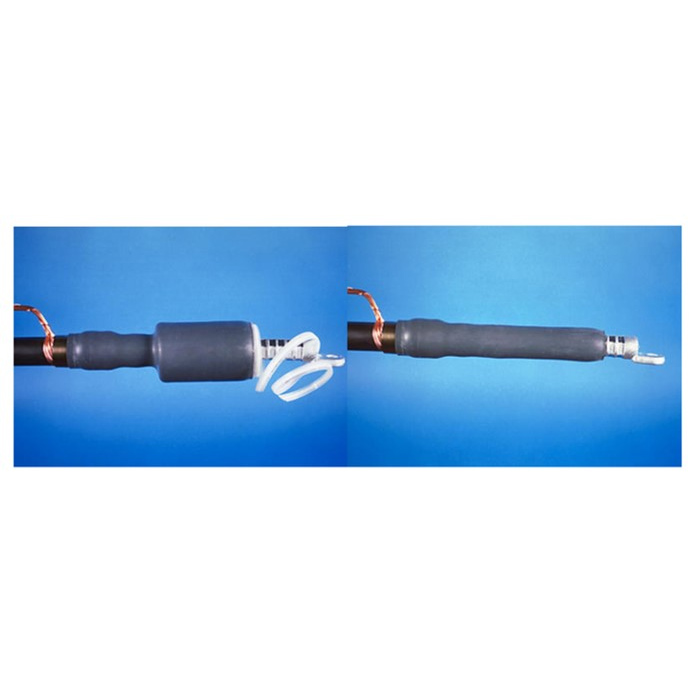

3M™ QTIII Cold Shrink Single Core Indoor Terminations 12/20(24) kV Cables
3M™ QTIII Cold Shrink Series Kits are designed for 24kV Umax voltage class, Single core polymeric power cable systems according to HD 620 (IEC 60502). QTIII terminations are manufactured from silicone rubber, which has been specially formulated to enhance the properties required for MV terminations
Data Sheets
| Reference | Name | |
|---|---|---|
| 93-EP610-1 | 25-120mm2 conductor size, Indoor type | |
| 93-EP620-1 | 95-300mm2 conductor size, Indoor type | |
| 93-EP630-2 | 185-500mm conductor size, Indoor type | |
| 93-EP640-2 | 500-630mm2 conductor size, Indoor type | |
| 93-EP621-2 | 50-95mm conductor size, Outdoor type | |
| 93-EP631-2 | 120-400mm2 conductor size, Outdoor type | |
| 93-EP641-2 | 500-630mm2 conductor size, Outdoor type |
