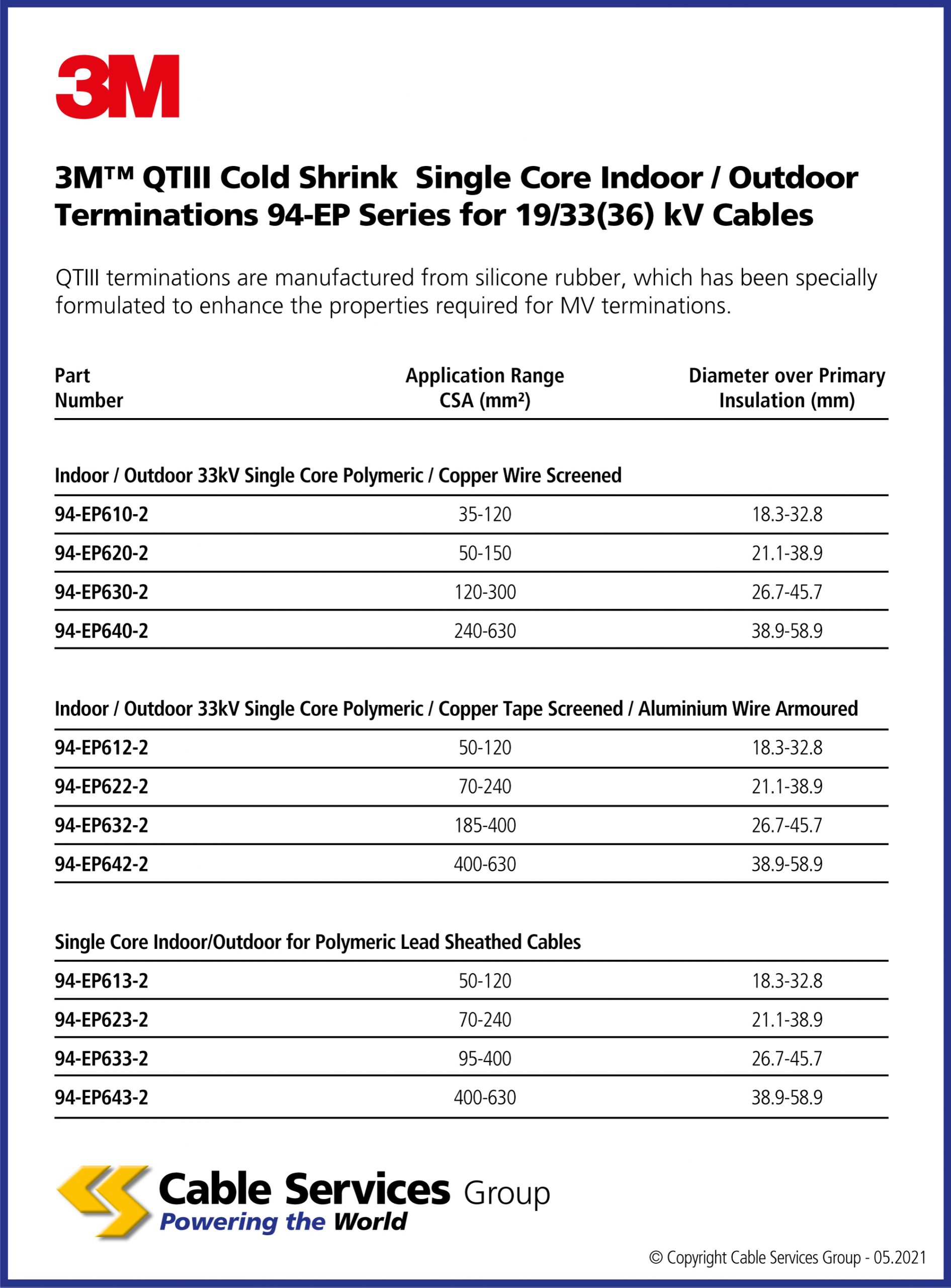

Selection Table

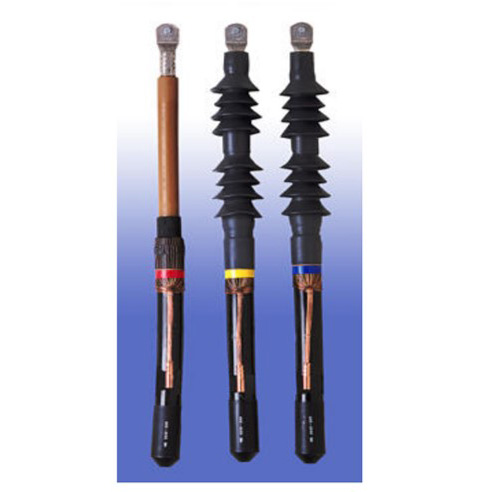

3M™ QTIII Cold Shrink Single Core Indoor / Outdoor Terminations 94-EP Series for 19/33(36) kV Cables
QTIII terminations are manufactured from silicone rubber, which has been specially formulated to enhance the properties required for MV terminations.
Data Sheets
| Reference | Name | |
|---|---|---|
| 94-EP610-2 | 35-120mm2 conductor size, Polymeric/Copper Wire Screened type | |
| 94-EP620-2 | 50-150mm2 conductor size, Polymeric/Copper Wire Screened type | |
| 94-EP630-2 | 120 - 300mm2 conductor size, Polymeric/Copper Wire Screened type | |
| 94-EP640-2 | 240-630mm2 conductor size, Polymeric/Copper Wire Screened type | |
| 94-EP612-2 | 50-120mm2 conductor size, Polymeric/Copper Tape Screened/AWA type | |
| 94-EP622-2 | 70-240mm2 conductor size, Polymeric/Copper Tape Screened/AWA type | |
| 94-EP632-2 | 185-400mm2 conductor size, Polymeric/Copper Tape Screened/AWA type | |
| 94-EP642-2 | 400-630mm2 conductor size, Polymeric/Copper Tape Screened/AWA type | |
| 94-EP613-2 | 50-120mm2 conductor size, Polymeric Lead Sheathed Cables type | |
| 94-EP623-2 | 70-240mm2 conductor size, Polymeric Lead Sheathed Cables type | |
| 94-EP633-2 | 95-400mm2 conductor size, Polymeric Lead Sheathed Cables type | |
| 94-EP643-2 | 400-630mm2 conductor size, Polymeric Lead Sheathed Cables type |
