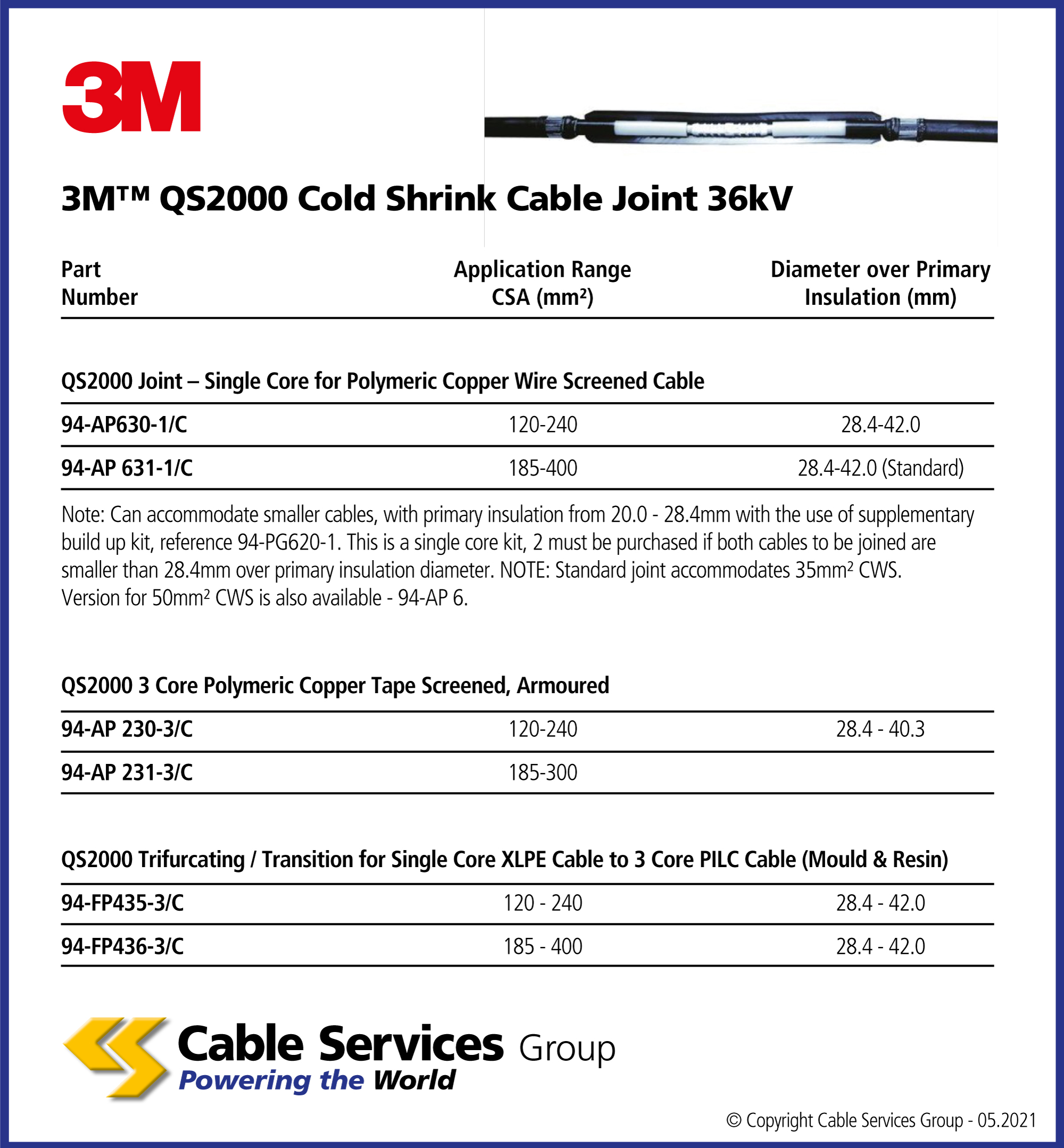

Selection Table

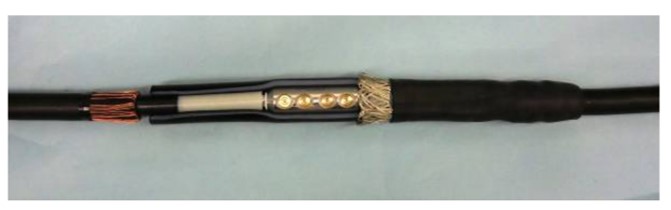

3M QS2000 Cold Shrink Cable Joint 36kV
3M™ Cold Shrink Medium Voltage accessories QS2000 series, factory tested, are designed using a unique Cold Shrink delivery system. Products are supplied prestretched on a removable core for efficiency and easy of installation. Electrical field control device and faraday cage preinstalled in the insulation body help to avoid complexity during the installation. While the specific properties of the insulating silicon body allow to connect wide range of cable cross sections. 3M™ Cold Shrink Medium Voltage accessories are designed to provide an easy and secure solution to connect MV cables.
Data Sheets
| Reference | Name | |
|---|---|---|
| 94-AP630-1/C | 120-240mm2 cable connector size, Single Core for Polymeric Copper Wire Screened Cable size type | |
| 94-AP 631-1/C | 185-400mm2 cable connector size, Single Core for Polymeric Copper Wire Screened Cable size type | |
| 94AP230-3/C | 120-240mm2 cable connector size, 3 Core Polymeric Copper Tape Screened, Armoured size type | |
| 94-AP 231-3/C | 185-300mm2 cable connector size, 3 Core Polymeric Copper Tape Screened, Armoured size type | |
| 94FC630-1 | 120-300mm2 cable connector size, Single Core Transition for Polymeric to Paper MIND Cables size type | |
| 94-FP435-3/C | 120-240mm2 cable connector size, Trifurcating / Transition for Single Core XLPE Cable to 3 Core PILC Cable (Mould & Resin) size type | |
| 94-FP436-3/C | 185-400mm2 cable connector size, Trifurcating / Transition for Single Core XLPE Cable to 3 Core PILC Cable (Mould & Resin) size type |
